Ricoh D009 User Manual

Covers and Tray
SM 1 B802
Auto Reverse
Doc Feeder
B802
1. REPLACEMENT AND ADJUSTMENT
1.1 COVERS AND TRAY

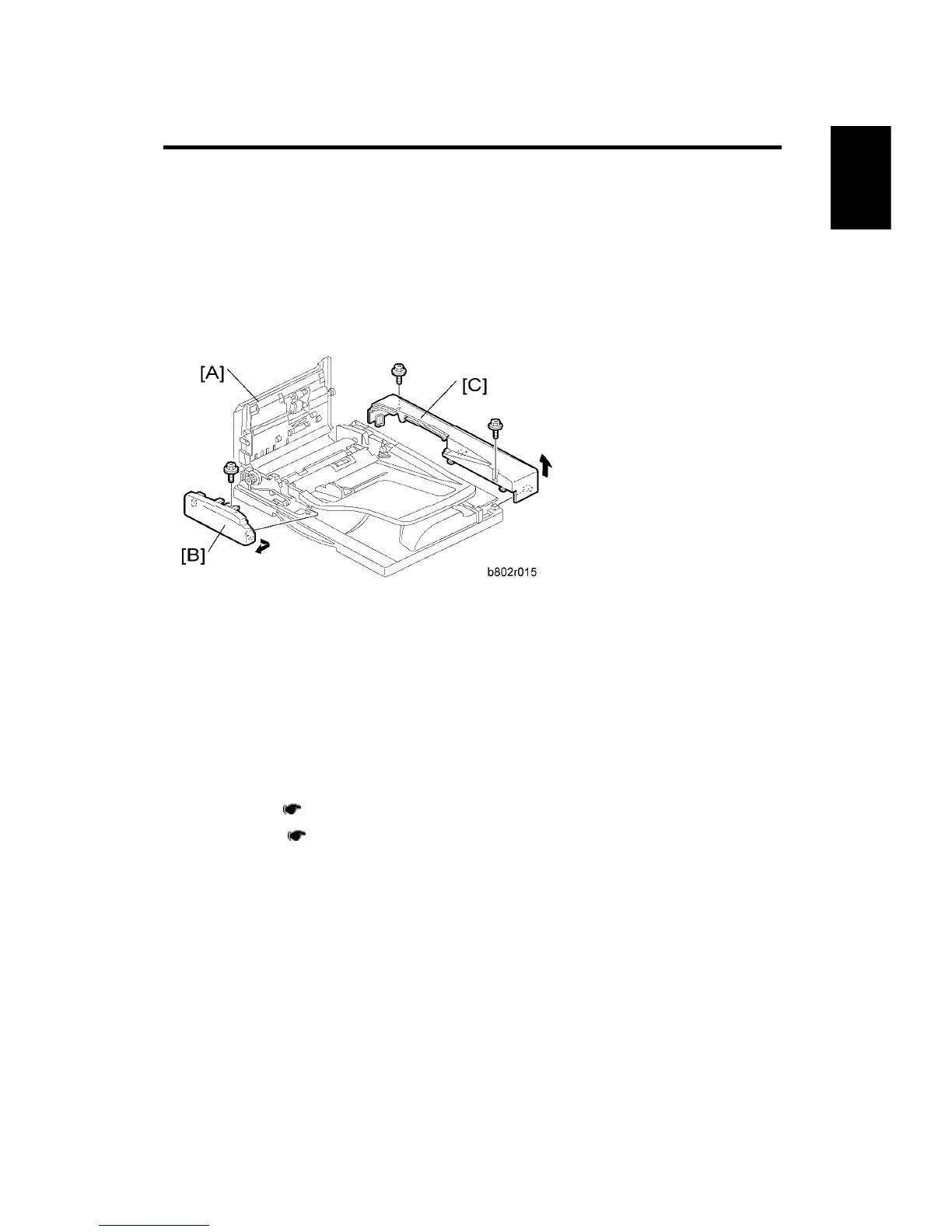

1.1.1 FRONT AND REAR COVER
1. Open the left cover [A].
2. Front cover [B] (

x 1, hook x 2)
3. Rear cover [C] (

x 2, hook x 2)
1.1.2 ORIGINAL TRAY
1. Open the left cover.
2. Rear cover (
1.1.1"Front and Rear Cover")
3. Front cover (
1.1.1"Front and Rear Cover")
