PCDU
SM 4-33 D009/D011/D012/D013/D091/D092
Replacement
&
Adjustment
4.7.2 DRUM
1. Remove the PCDU ( p.4-32)

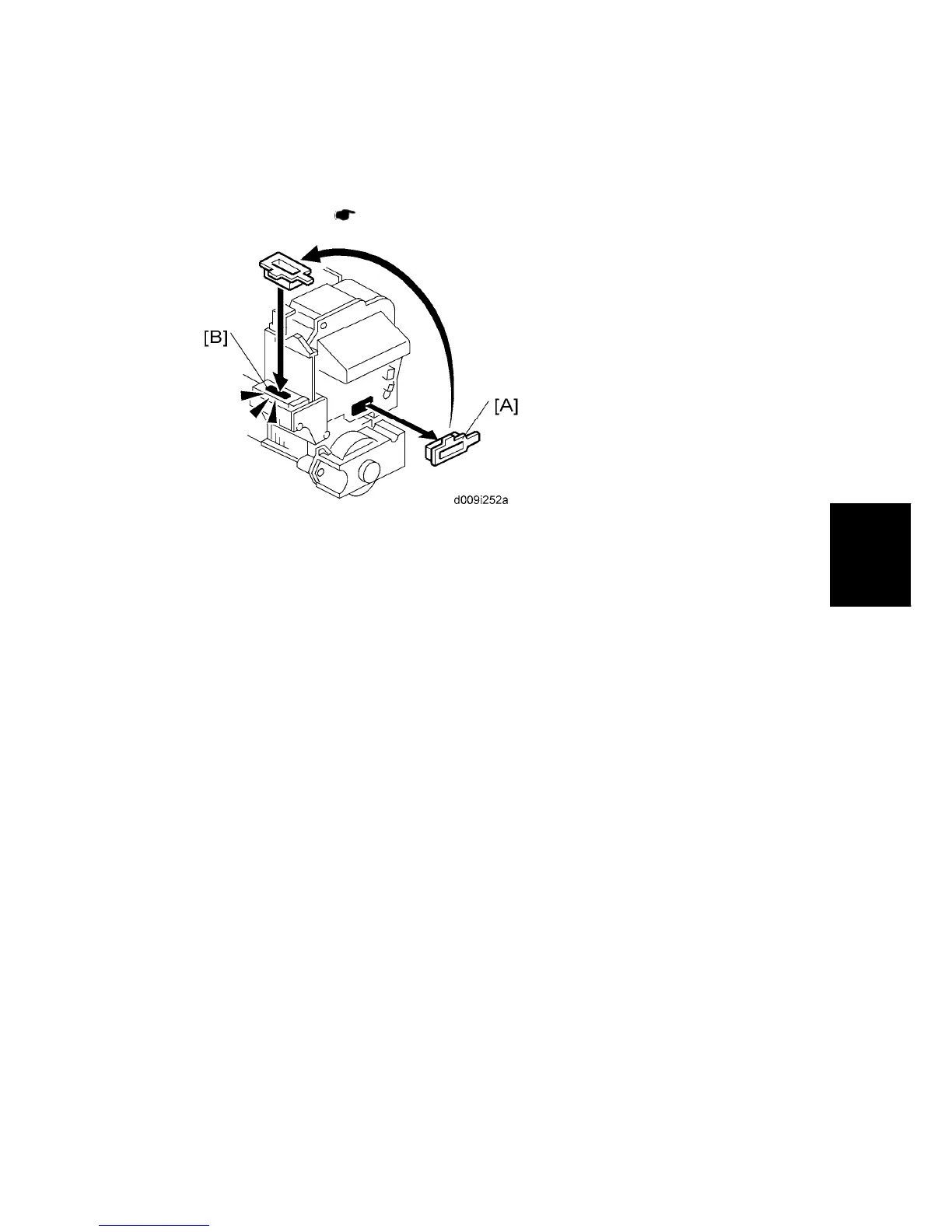

2. Toner cap [A]
3. Insert cap [A] into the opening of the PCDU [B].
4. Step 4 has been removed.
5. Step 5 has been removed.
⇒
Rev. 03/09/2012
