Paper Exit
SM 4-67 D009/D011/D012/D013/D091/D092
Replacement
&
Adjustment

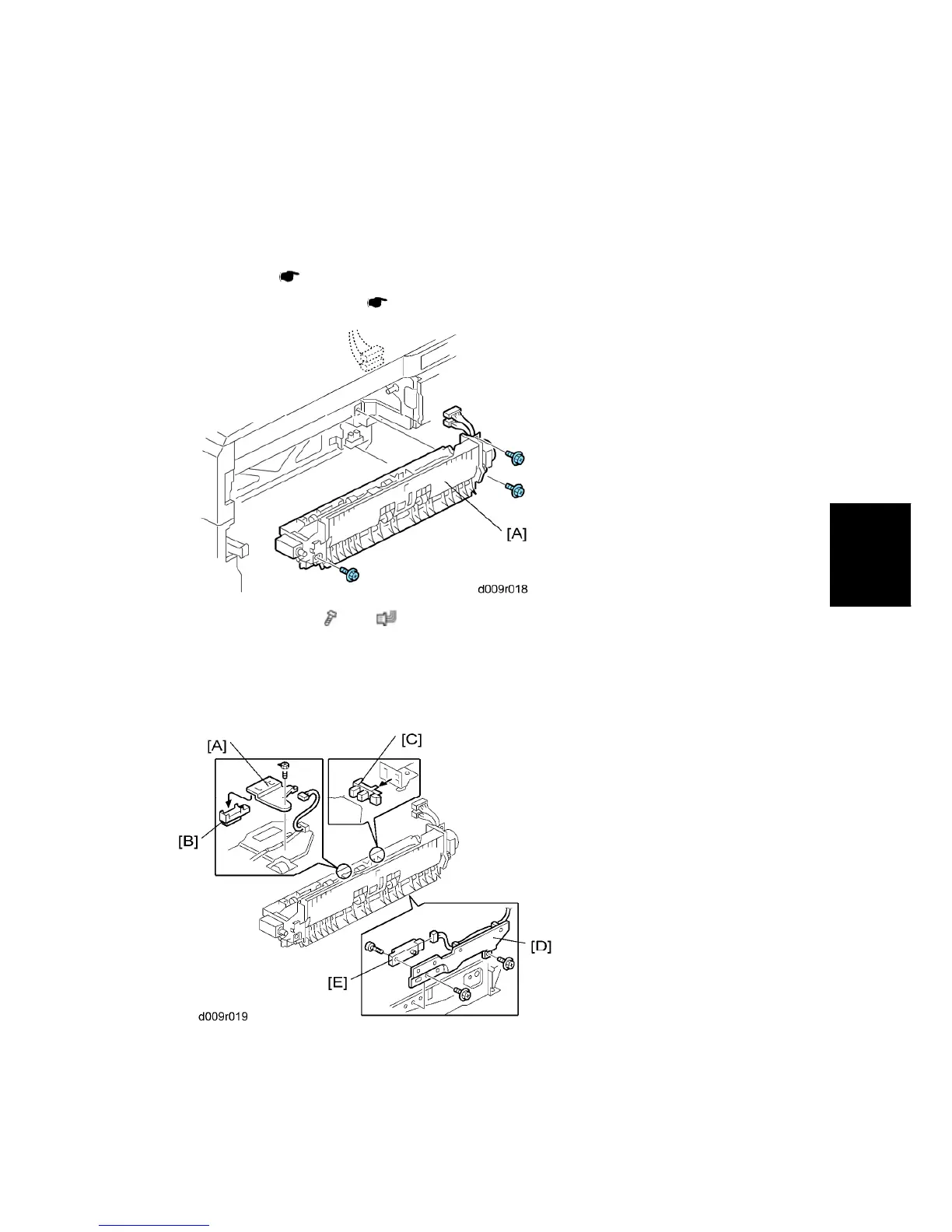

4.12 PAPER EXIT
4.12.1 PAPER EXIT UNIT
1. Fusing unit ( p.4-56)
2. Fusing exhaust fan duct (
p.4-95)
3. Paper exit unit [A] (
x 3, x 2)
4.12.2 FUSING EXIT, PAPER OVERFLOW, AND PAPER EXIT
SENSORS
