Scanner-2
SM 4-23 D009/D011/D012/D013/D091/D092
Replacement
&
Adjustment
5. To make reassembly easy, slide the first scanner to the center.
6. Rear scanner wire clamp [B]
7. Rear scanner wire bracket [C] (
x 1)
8. Scanner motor gear [D] (
x 1)
9. Rear scanner wire and scanner drive pulley [E] (
x 1)

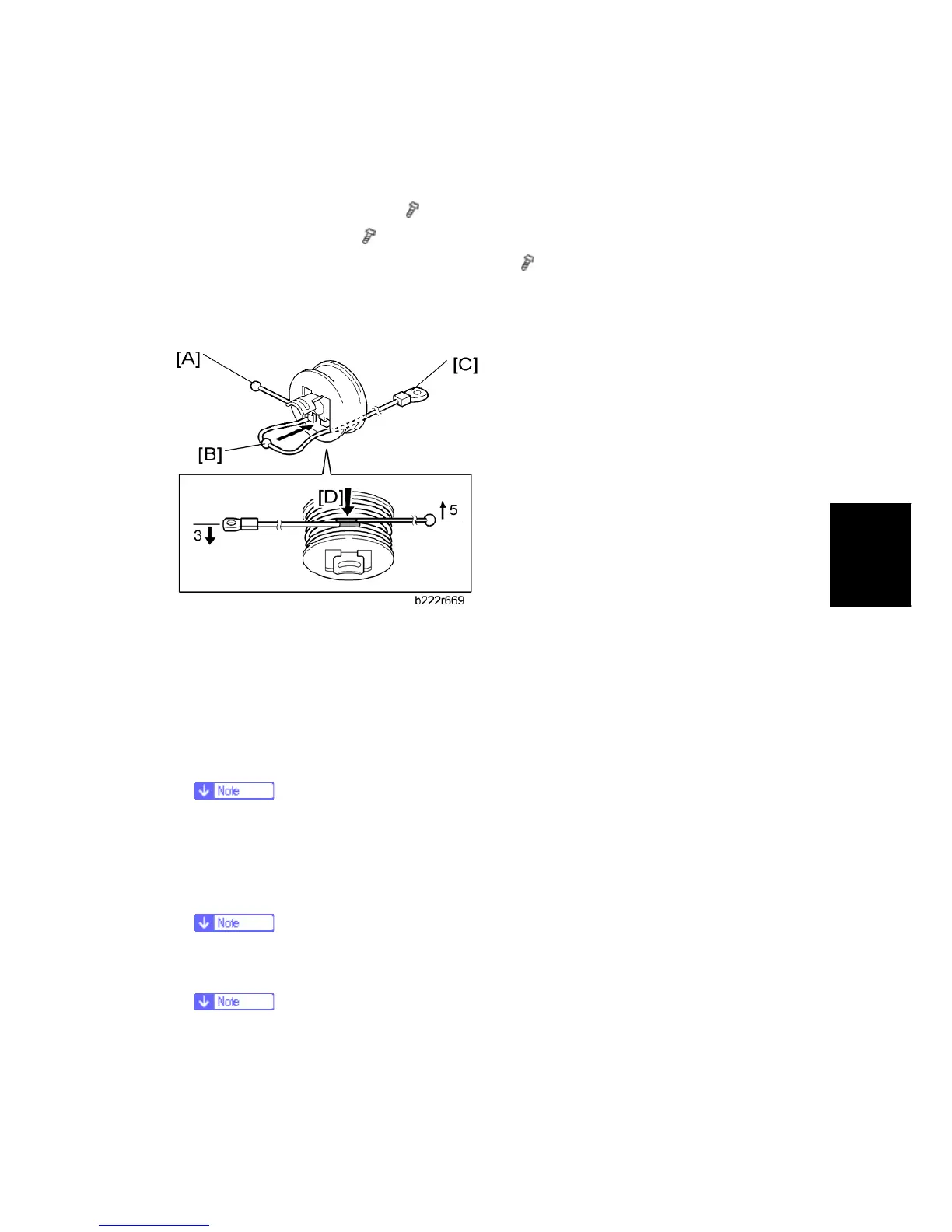

Reassembling the Rear Scanner Wire
1. Position the center ball [B] in the middle of the forked holder.
2. Pass the end with the ball [A] through the right square hole from the front.
3. Position the center ball [B] in the middle of the notch, as shown by the arrow.
4. Pass the ball end [A] through the drive pulley notch.
5. Wind the end with the ring [C] clockwise (shown from the machine's front) three times;
wind the ball end [A] clockwise (shown from the machine's front) five times.
 The two red marks [D] should meet when you have done this.
6. Stick the wire to the pulley with tape, so you can easily handle the pulley and wire
during installation.
7. Install the drive pulley on the shaft.
 Do not screw the pulley onto the shaft yet.
8. Install the wire.
 The winding of the wire on the three pulleys at the rear of the scanner should
be the same as the winding on the three pulleys at the front. This must show
as a mirror image. Example: At the front of the machine, the side of the drive
