Component Layout
B802 18 SM

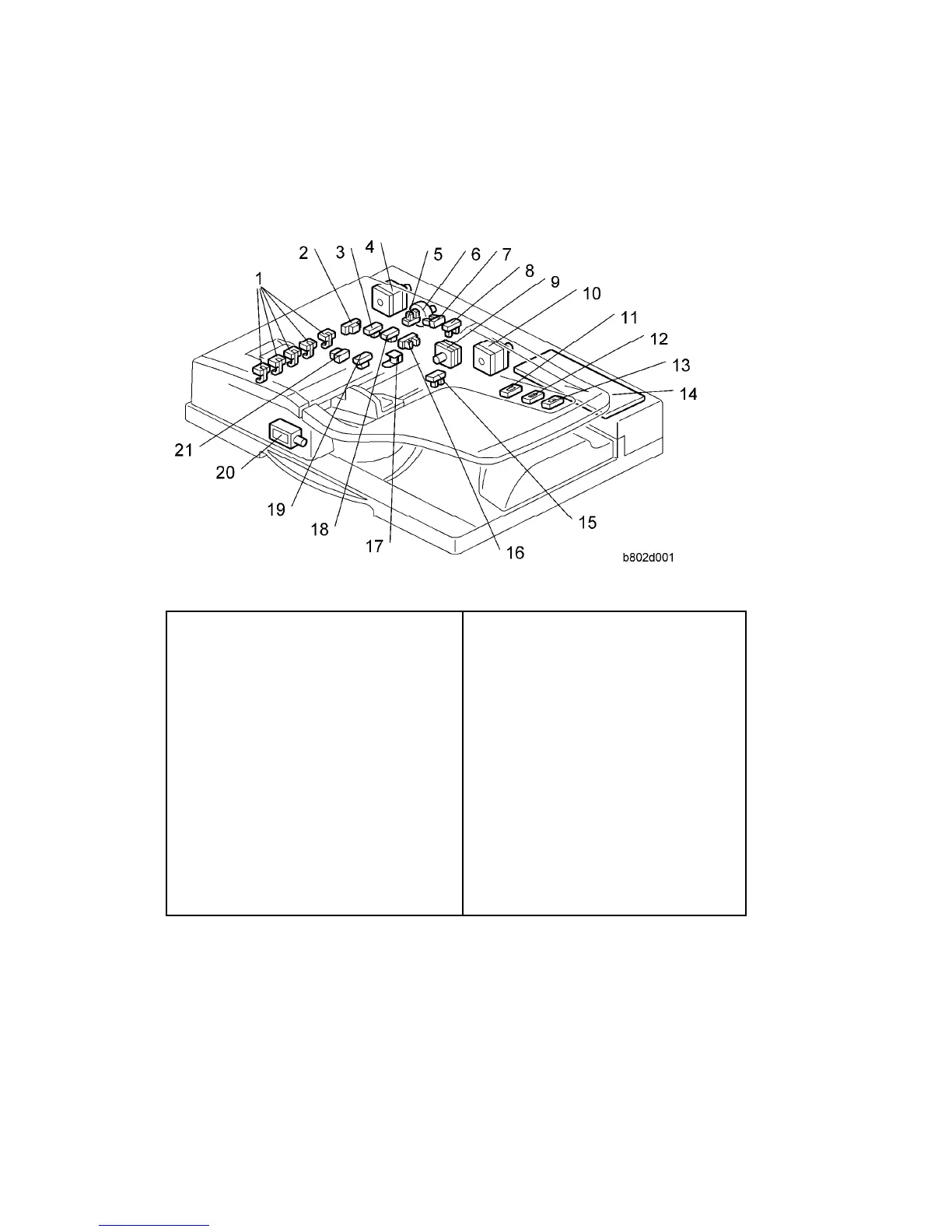

2.1.2 ELECTRICAL COMPONENT LAYOUT
Sensors and Drive Components
1. Original Width Sensors
2. Scanning Entrance Sensor
3. Skew Correction Sensor
4. ADF Transport Motor
5. Left Cover Sensor
6. Pick-up Motor
7. Pick-up Roller HP Sensor
8. Original Stopper HP Sensor
9. ADF Inverter Motor
10. ADF Feed Motor
11. Original Length Sensor 1
12. Original Length Sensor 2
13. Original Length Sensor 4
14. DF Drive Board
15. Original Trailing Edge Sensor
16. Original Set Sensor
17. Stamp Solenoid
18. Separation Sensor
19. Original Exit Sensor
20. Junction Gate Solenoid
21. Registration Sensor
To Next Page
