Paper Height and End Detection
SM 15 D351
Paper Feed
Unit PB3040
D351
OFF: No actuator
2.5.2 PAPER END AND BOTTOM PLATE

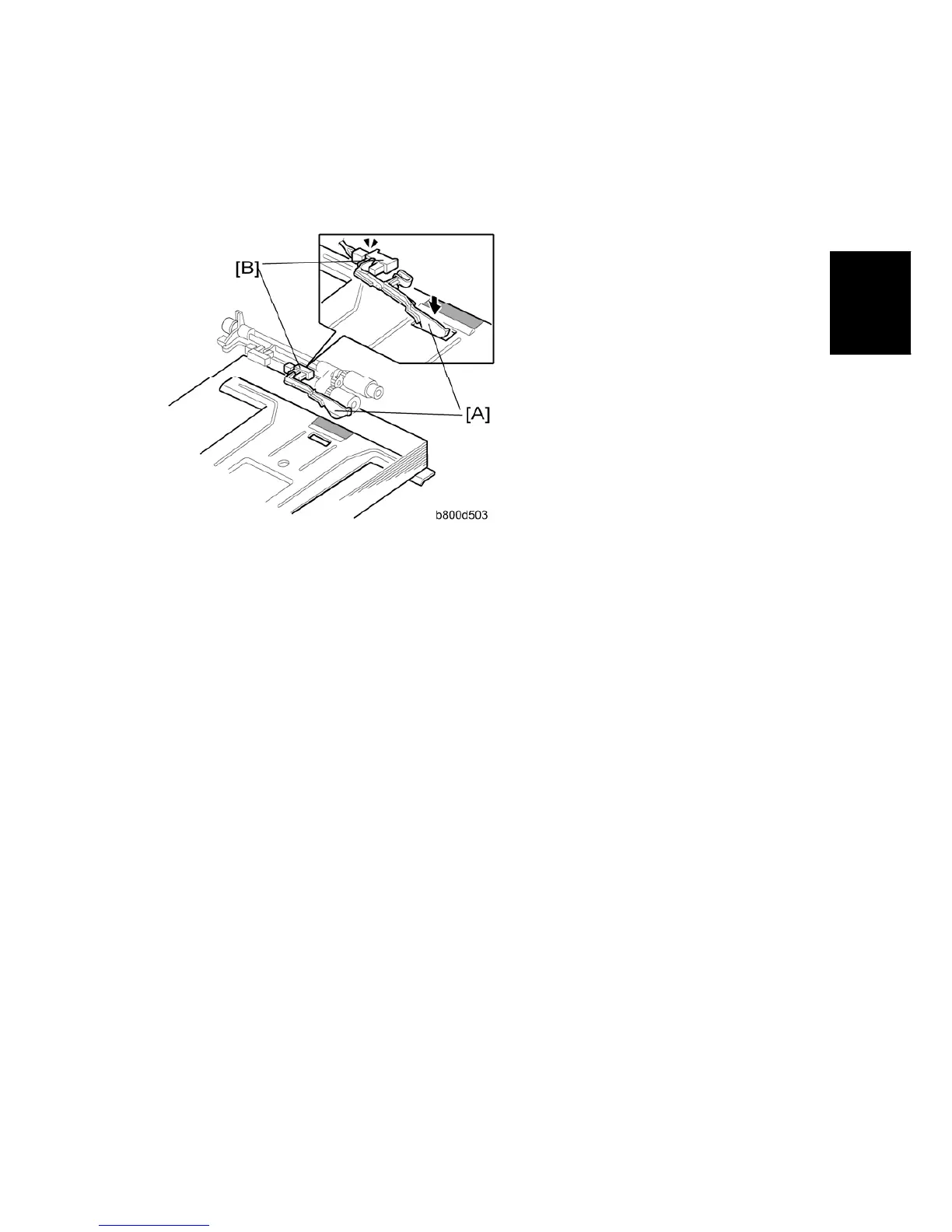

The paper stack raises the paper end feeler [A] and the paper end sensor [B] deactivates if
there is some paper in the paper tray.
When the paper tray runs out of paper, the paper end feeler [A] drops into the cutout in the
tray bottom plate. At this time the paper end sensor [B] activates
