Paper Exit

D009/D011/D012/D013/D091/D092 4-68 SM

Paper Exit Sensor

1. Paper exit unit ( p.4-67)

2. Sensor bracket [A] (

x 1)

3. Paper exit sensor [B] (

x 1, hooks)

Paper Overflow Sensor

1. Paper exit unit ( p.4-67)

2. Paper overflow sensor [C] (

x 1, hooks)

Fusing Exit Sensor

1. Paper exit unit ( p.4-67)

2. Sensor bracket [D] (

x 2)

3. Fusing exit sensor [E] (

x 1, x 1)

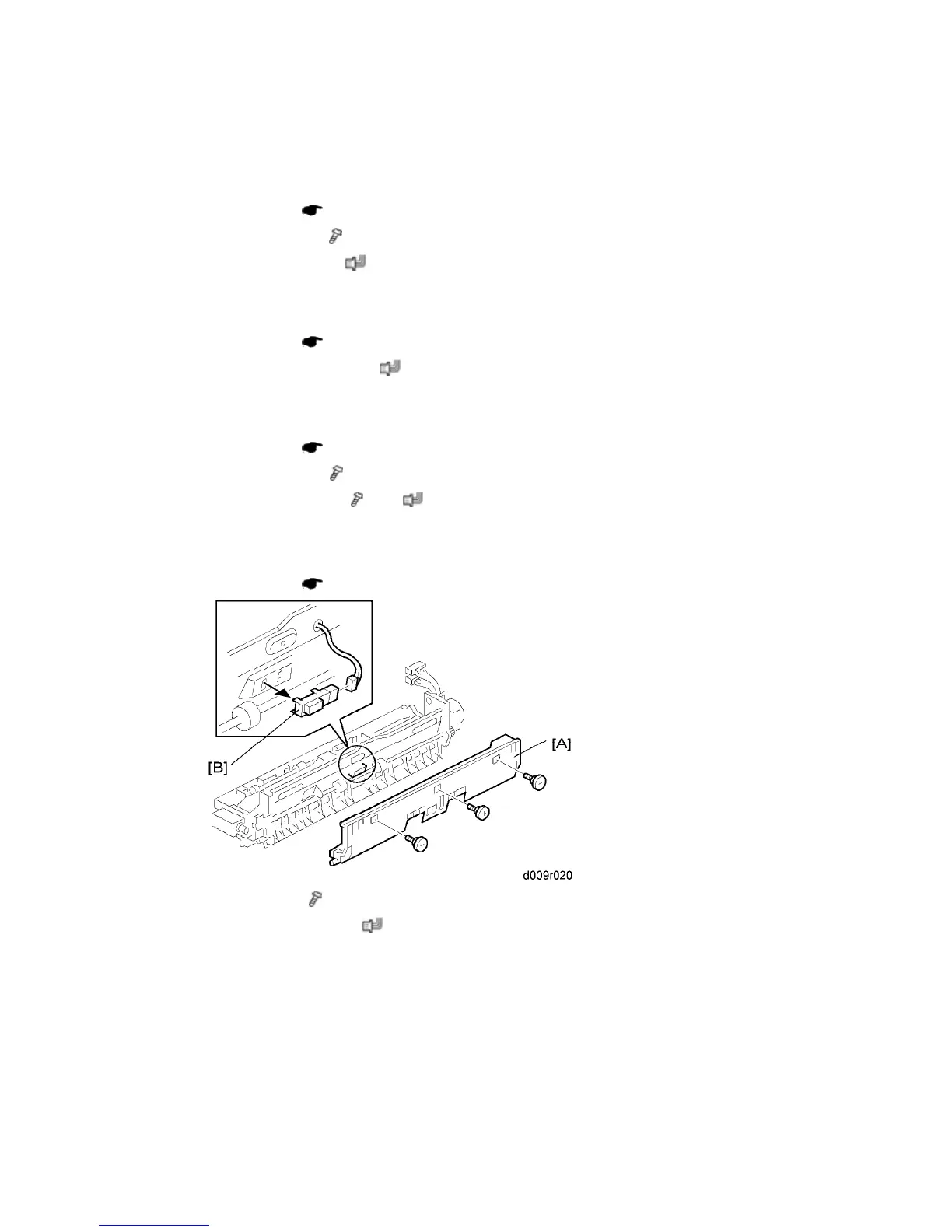

4.12.3 JUNCTION JAM SENSOR

1. Paper exit unit ( p.4-67)

2. Paper guide [A] ( x 3)

3. Junction jam sensor [B] (

x 1)
