Scanner -1
D009/D011/D012/D013/D091/D092 4-16 SM

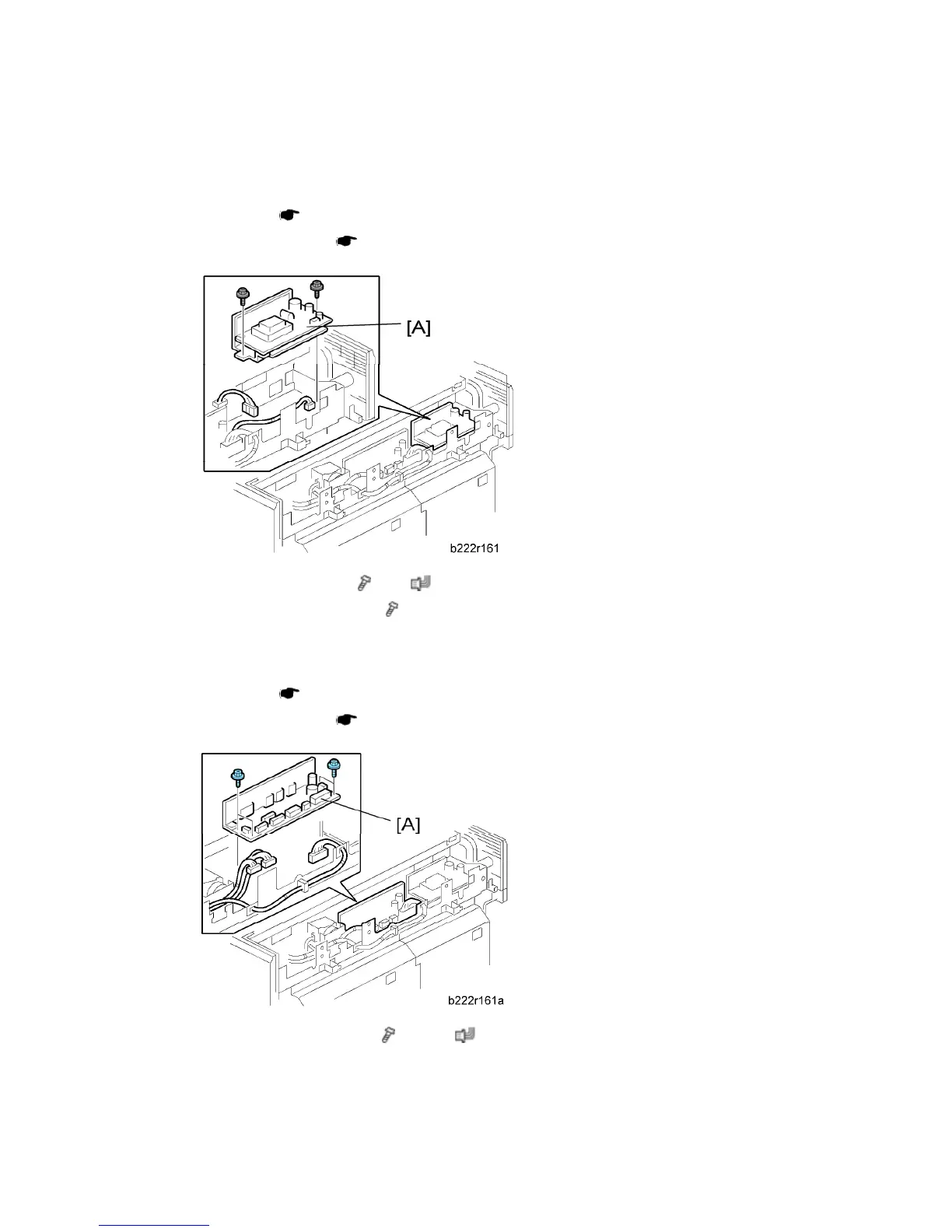

4.4.6 LAMP STABILIZER
1. Rear cover ( p.4-4)
2. Scanner rear frame (
p.4-13)
3. Lamp stabilizer unit [A] (
x 2, x 2)
4. Lamp stabilizer (CS model:
x 4, MS model: stud x 2)
4.4.7 SIO (SCANNER IN/OUT) BOARD
1. Rear cover ( p.4-4)
2. Scanner rear frame (
p.4-13)
3. SIO board with bracket [A] ( x 4, All s)
