4.17.5 TOUCH SCREEN CALIBRATION
After clearing the memory, or if the touch panel detection function is not working correctly,
follow this procedure to calibrate the touch screen.
 Do not attempt to use items [2] to [7] on the Self-Diagnostic Menu. These items
are for design use only.

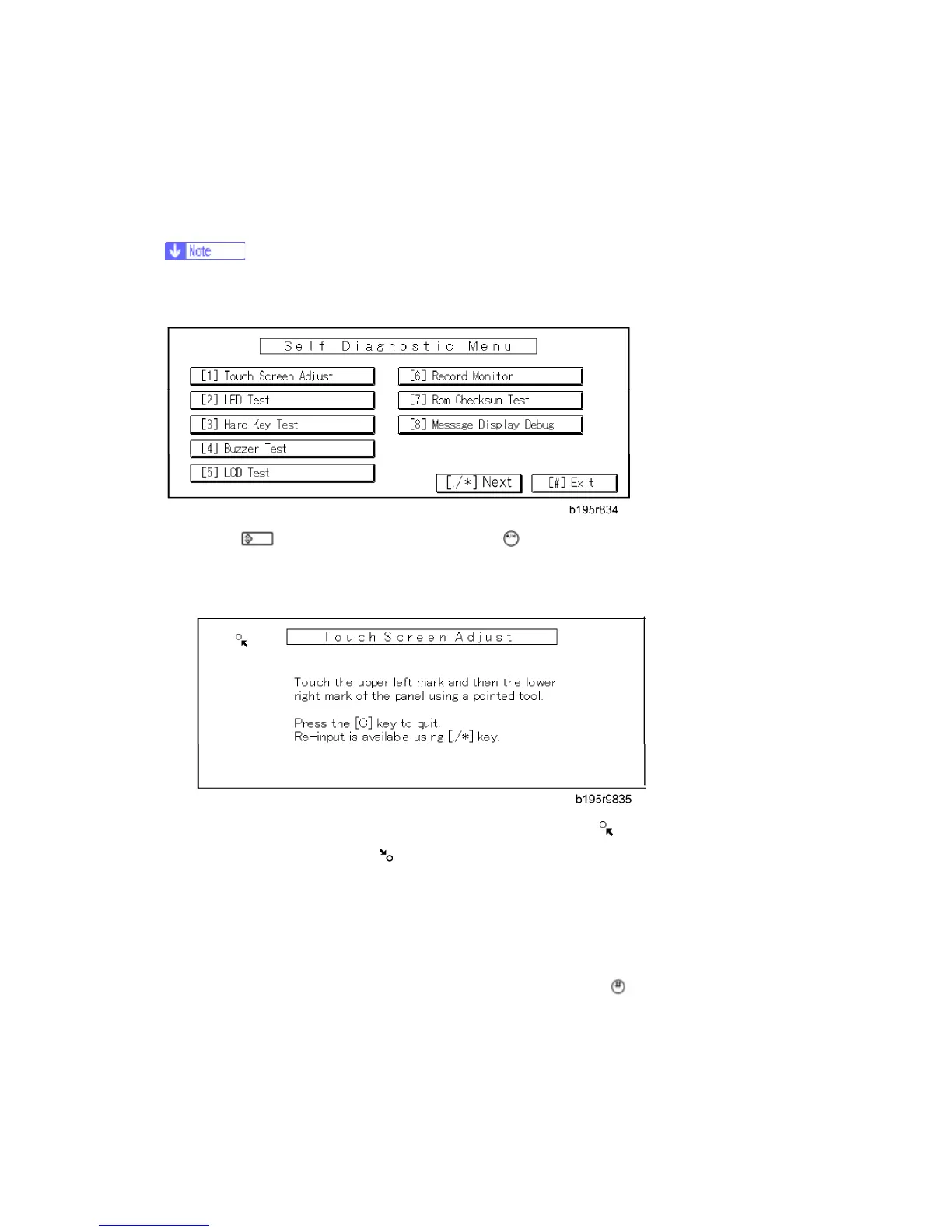

1. Press
, "1", "9", "9", "3", and then press 5 times to open the Self-Diagnostics
menu.
2. On the touch screen press "Touch Screen Adjust" (or press "1").
3. Use a pointed (not sharp!) tool to press the upper left mark
.
4. Press the lower right mark
after it appears.
5. Touch a few spots on the touch panel to confirm that the marker (+) appears exactly
where the screen is touched.
If the + mark does not appear where the screen is touched, press Cancel and repeat
from Step 2.
6. When you are finished, press [#] OK on the screen (or press
).
7. Touch [#] Exit on the screen to close the Self-Diagnostic menu and save the calibration
settings.
