Fusing
SM 4-61 D009/D011/D012/D013/D091/D092
Replacement
&
Adjustment

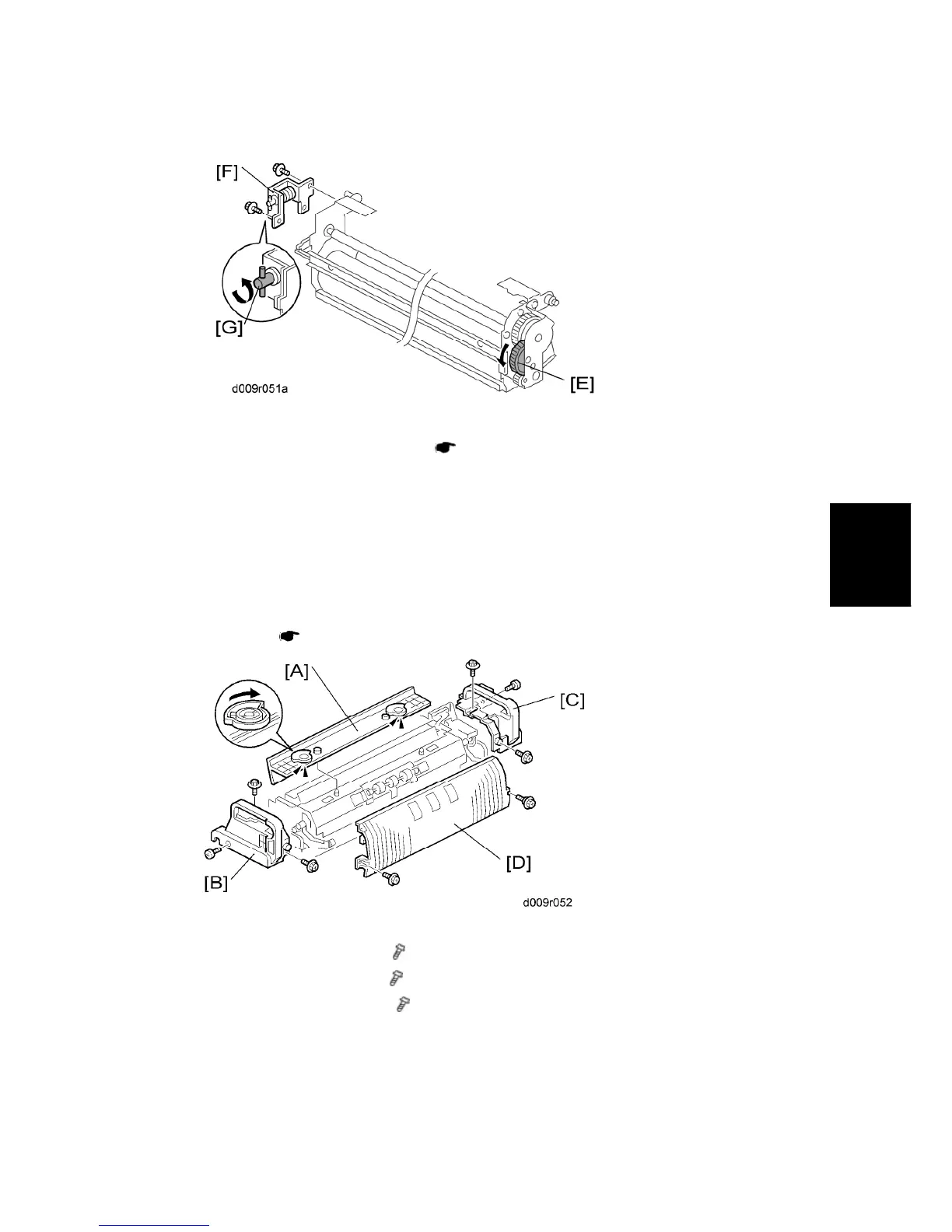

6. Turn the rear gear [E] in the arrow direction to remove the slack in the web sheet.
7. Reinstall the front gear bracket [F] (
p.4-58).
8. Turn the coupling [G] in the arrow direction to remove the slack in the web sheet.
9. Reinstall the web unit.
10. If you install a new cleaning web, reset SP 7806-008 and SP7804-005 (press
"Execute" on the LCD).
4.11.5 PRESSURE ROLLER CLEANING ROLLER
1. Fusing unit ( p.4-56)
2. Fusing exit guide [A] (lock x 2)
3. Fusing front upper cover [B] (
x 3)
4. Fusing rear upper cover [C] (
x 3)
5. Fusing outer guide [D] (front:
x 1, rear: stepped screw x 1)
⇒
Rev. 03/09/2012
To Next Page
