Ricoh D009 User Manual

Booklet Stapler Unit
SM 19 B804/B805
Booklet
Finisher/
Finisher
B804/B805
1.5 BOOKLET STAPLER UNIT
1.5.1 BOOKLET STAPLER
1. Open the front door.
2. Pull out the stapler unit (
1.2.2 "Positioning Roller").

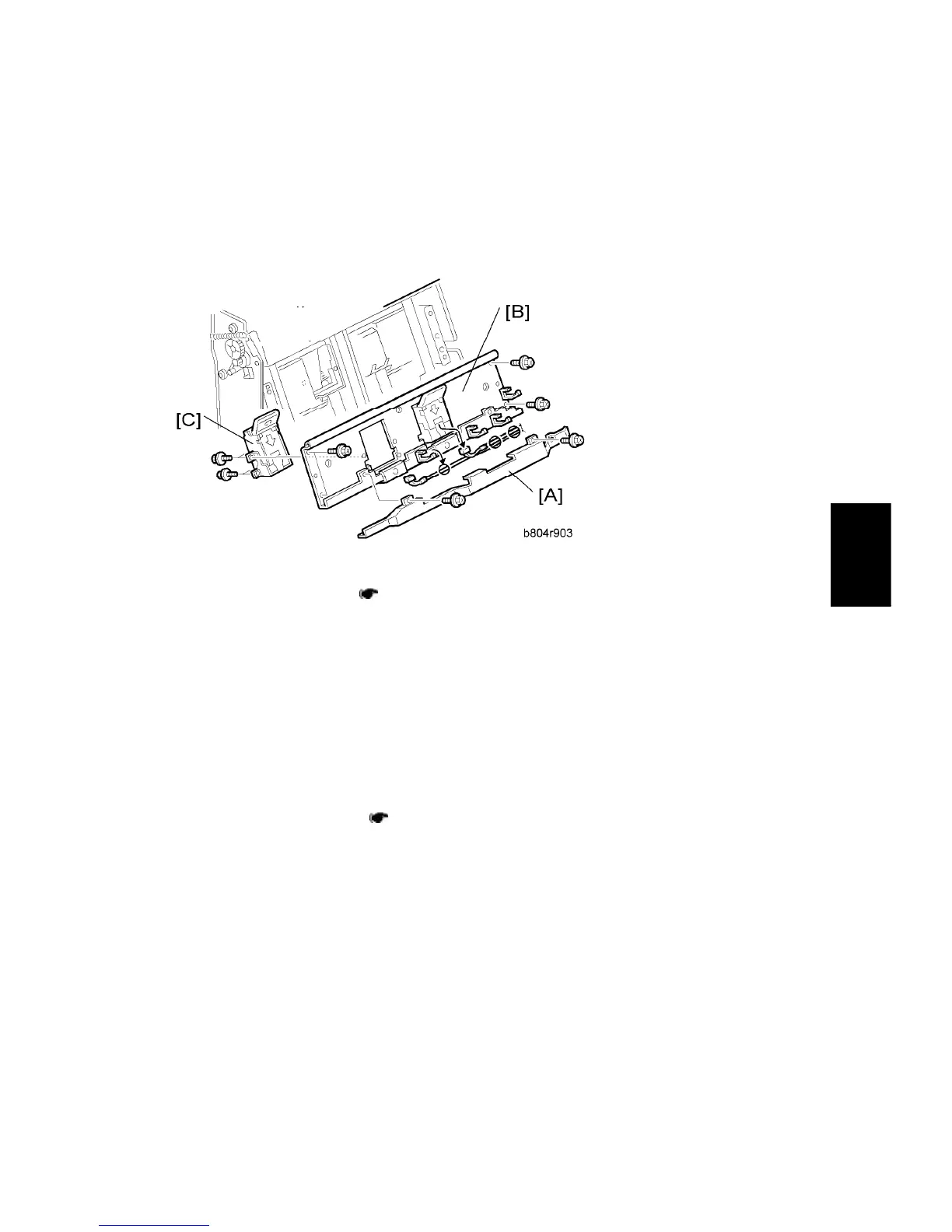

3. Harness cover [A] (

x2)
4. Booklet stapler support stay [B] (

x4,

x2,

x4)
5. Stapler [C] (

x4)
1.5.2 BOOKLET STAPLER MOTOR
1. Open the front door.
2. Remove the stapler unit. (
1.4.1 "Fold Unit")
