Fusing
D009/D011/D012/D013/D091/D092 4-58 SM

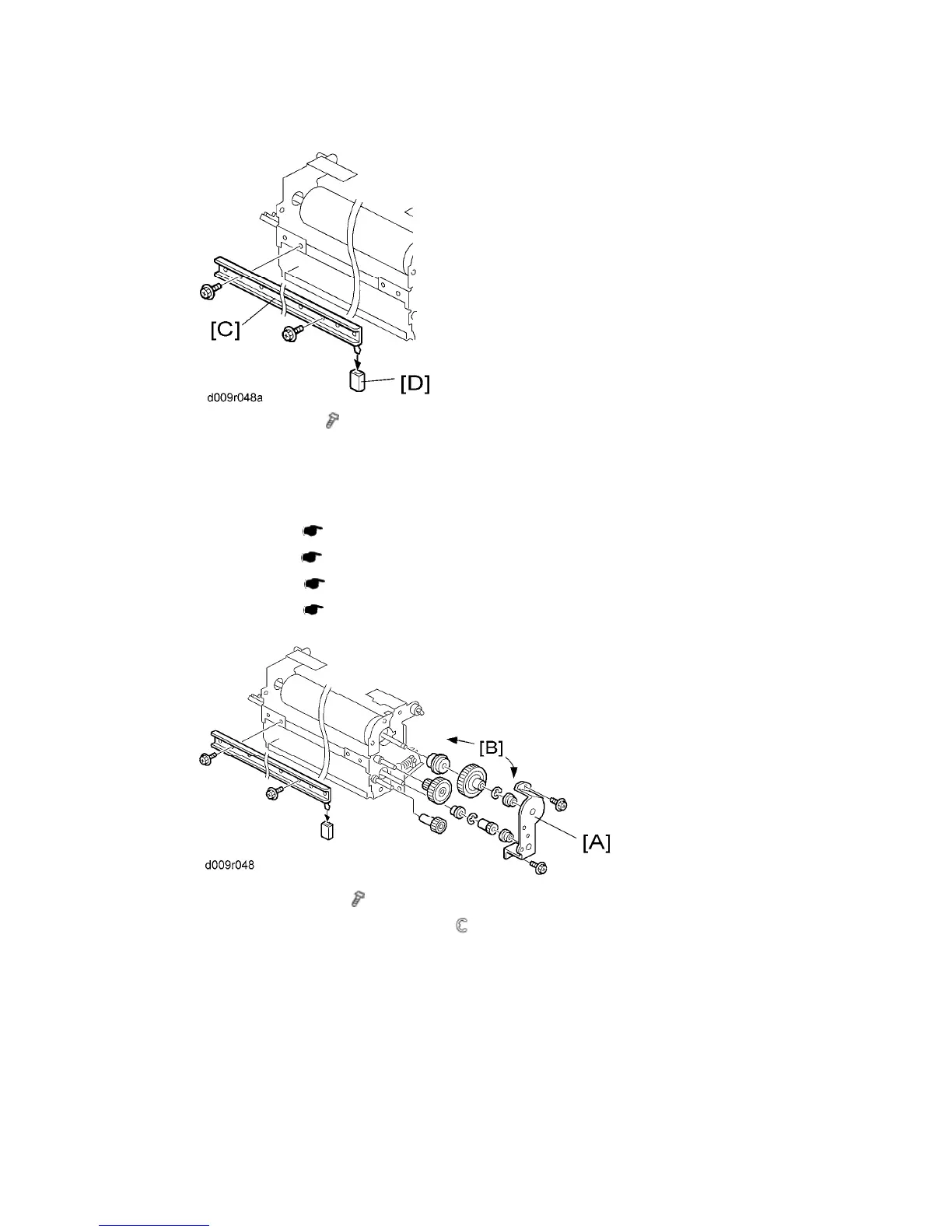

4. Web left frame [C] (
x 2)
5. Brake pad [D]
4.11.4 WEB HOLDER ROLLER AND WEB ROLLERS
1. Web roller unit ( p.4-57)
2. Web left cover (
p.4-57)
3. Web top frame (
p.4-57)
4. Web left frame (
p.4-57)
5. Front gear bracket [A] (
x 2)
6. All gears and bushings (rear side) [B] (
x 2)
