Main Machine Installation
D009/D011/D012/D013/D091/D092 2-10 SM

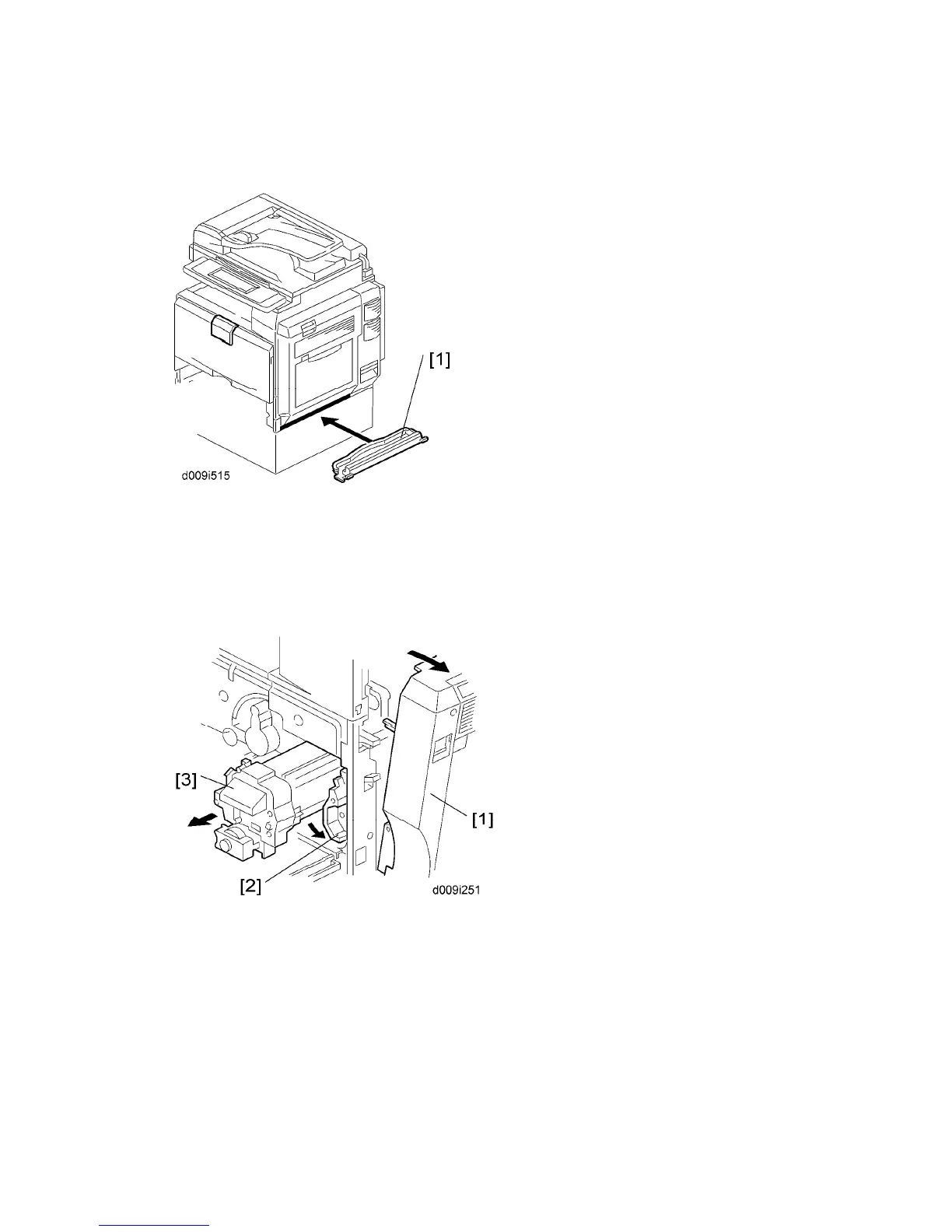

Fire Prevention Cover
When the copier is installed on the floor without the optional paper tray unit or a table, the
cover [1] must be attached to the copier.
 Install the cover [1] at the right side of the copier.
PCDU (Photoconductor and Development Unit)
1. Open the front door.
2. Open the right door [1].
3. Release the lock lever [2].
4. Pull out the PCDU [3] and place it on a clean flat surface.
