Ricoh D009 User Manual

Clutches
SM 5 D352
LCT PB3050
D352
1.5 CLUTCHES

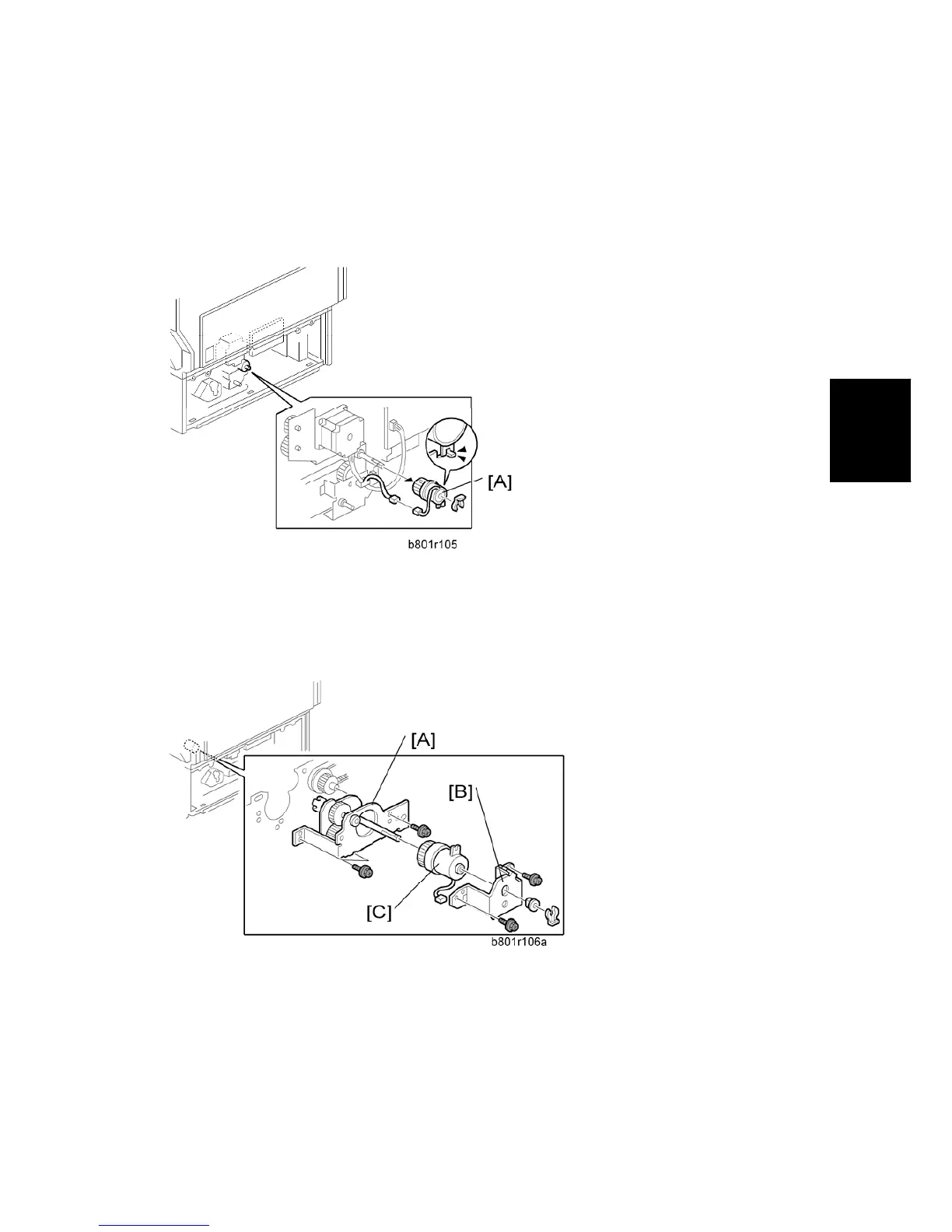

1.5.1 STACK TRANSPORT CLUTCH
1. Rear cover ( "Tray Lift Motor")
2. Stack transport clutch [A] ( x 1,  x 1)
1.5.2 PAPER FEED CLUTCH
1. Rear cover ( "Tray Lift Motor")
2. Paper feed gear unit [A] ( x 3,  x 1)
3. Paper feed clutch bracket [B] ( x 1,  x 2, bushing x 1)
4. Paper feed clutch [C]
