Sensors
D352 2 SM
1.2 SENSORS

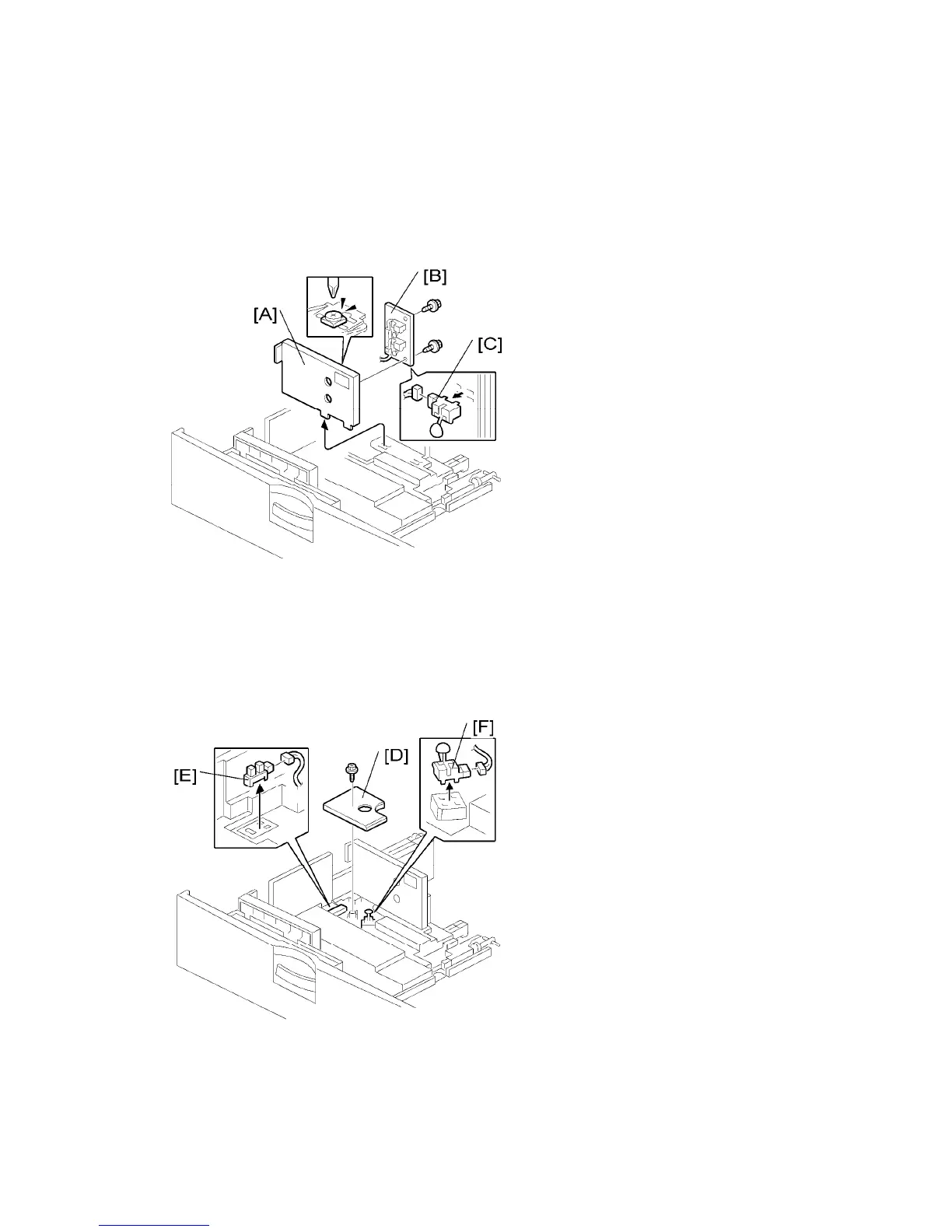

1.2.1 PAPER HEIGHT SENSORS ON THE PAPER STORAGE
SIDE
1. Tray ( "Left and Right Tray")
2. Rear fence [A] ( x 1)
3. Rear fence bracket [B] ( x 2)
4. Paper height sensors [C] ( x 1 each)
1.2.2 END FENCE HP SENSOR/PAPER END SENSOR 2
1. Bottom cover [D] ( x 1)
2. End fence HP sensor [E] ( x 1)
3. Paper end sensor 2 (paper storage side) [F] ( x 1)
