APPENDIX I GDU 4XX ADVANCED GAUGE CONFIGURATION
I.1 Example 1 - Vfe Exceedance Alert
Four Gauge Markings are applied to the General Purpose Input being used to sense Flap position in this
example, as shown in Figure I-1.

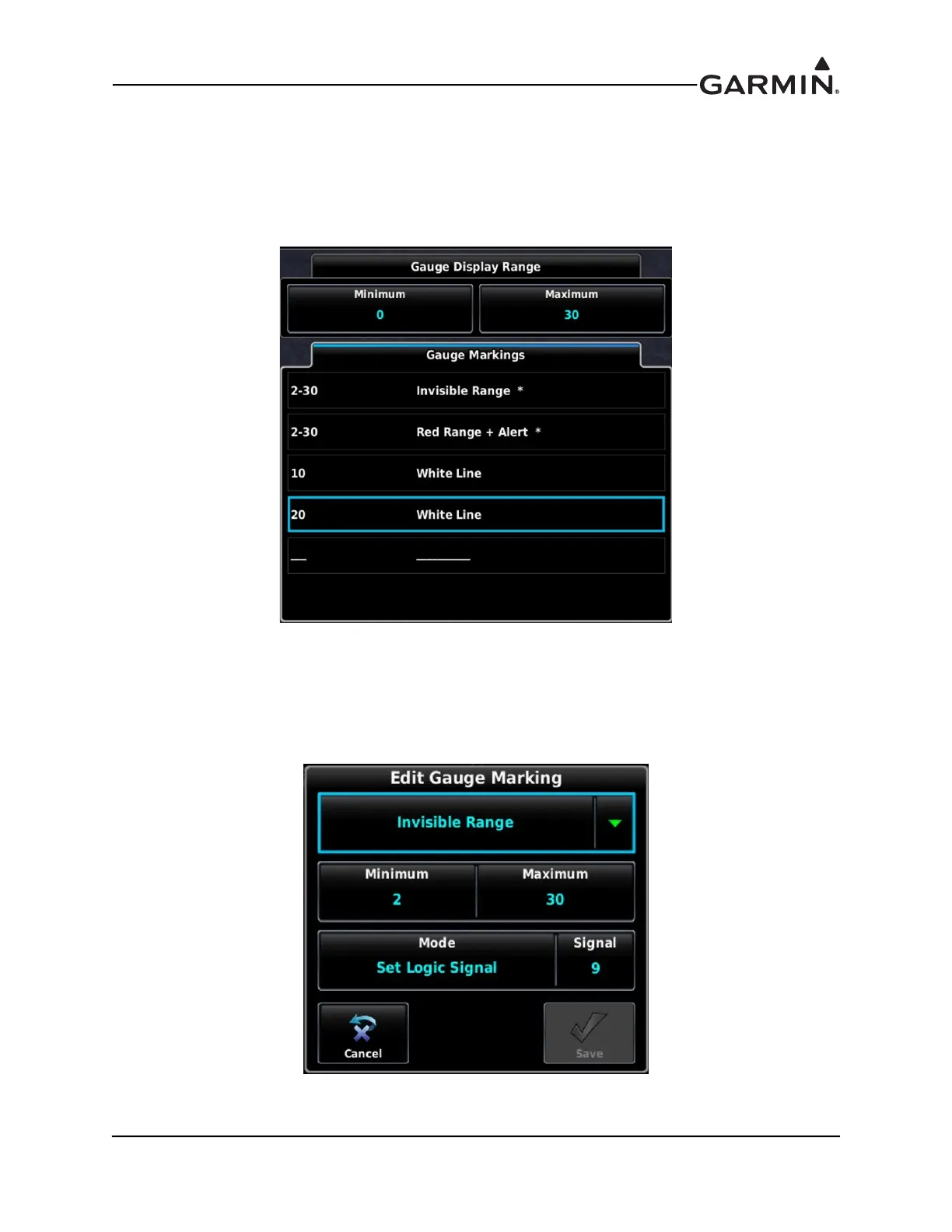

Figure I-1 Gauge Display Range
1. The Invisible Range (Figure I-2) extends from 2-30 degrees and is active anytime flap position is
within 2-30 degrees. The result of activation of this Invisible Range is the set/clear state of Logic
Signal 9 changing to “Set”.
Figure I-2 Invisible Range
