18 GTP 59 (TEMPERATURE PROBE) INSTALLATION
This section contains general information as well as installation information for the GTP 59. Use this
section to mount the GTP 59.
NOTE
For installations using more than one ADAHRS, ADAHRS 1 must be connected to a
GTP 59, but installing additional GTP 59’s for other GSU 25 ADAHRS units is optional.
An ADAHRS not connected to a GTP 59 will use temperature data supplied by other
ADAHRS as long as both ADAHRS are communicating using the CAN bus.

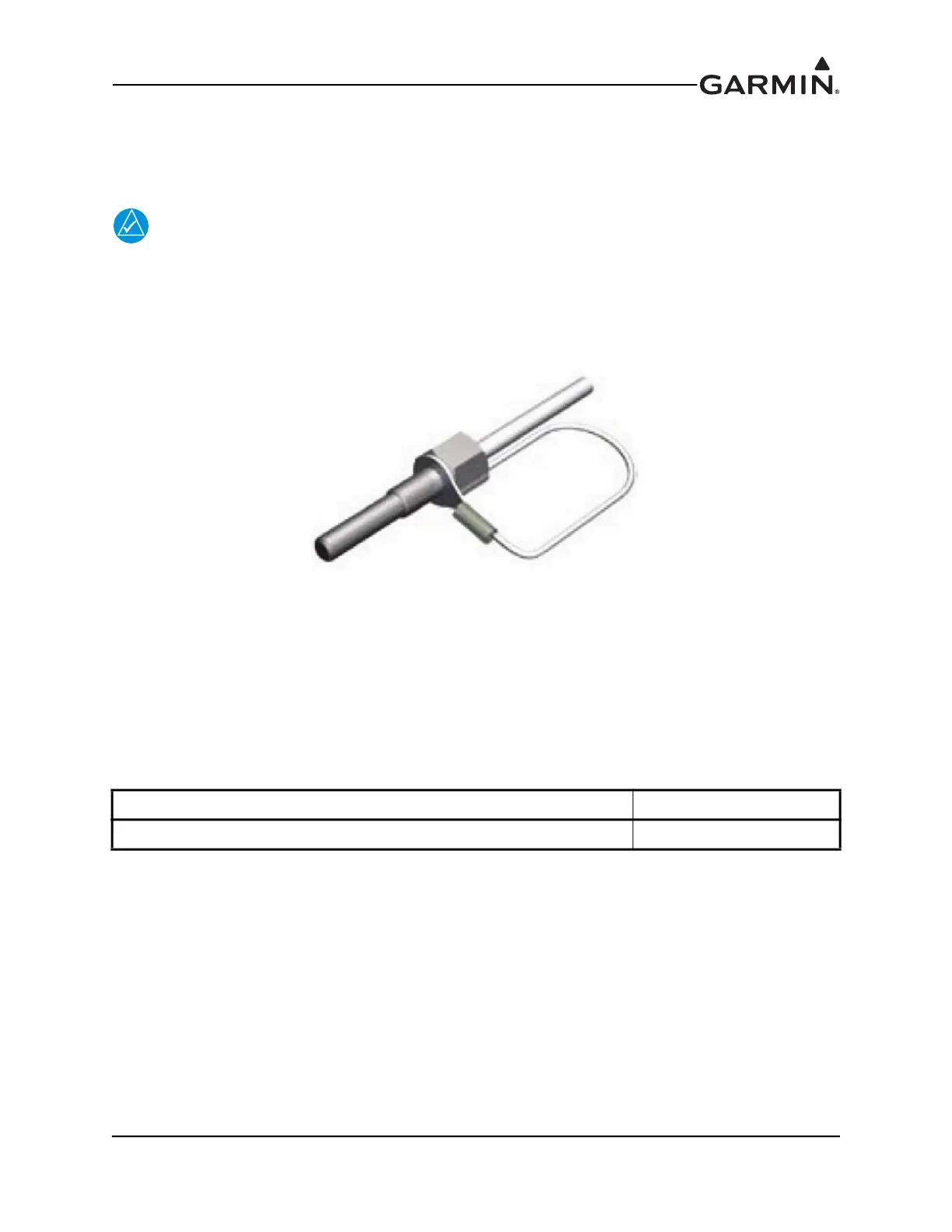

Figure 18-1. GTP 59
18.1 Equipment Description
The Garmin GTP 59 is an outside mounted temperature probe that provides raw air temperature data. The
temperature input device is a three-wire temperature probe interface. OAT Power Out and OAT High are
connected internally at the OAT probe.
The GTP 59 is available per the following part number.
Table 18-1 GTP 59 Part Number
Item Garmin Part Number
GTP 59 OAT Probe Kit 011-00978-00*
*Included in G3X™ avionics w/GSU 73 LRU (K10-00016-00)
