I.2 Example 2 - Dynamic RPM Gauge Markings Based on Oil Temperature
In this example (Figure I-5), the Red band for the upper end of the existing RPM gauge extends from
5800-6000 RPM. The following steps add a second Red Range Gauge Marking so that the Red range will
be drawn differently, as a function of oil temperature.
• If Oil Temperature > 120F, the Red Gauge extends from 5800 - 6000 RPM
• If Oil Temperature < 120F, high RPM operations are prohibited, so the Red Gauge extends from
2500 - 6000 RPM

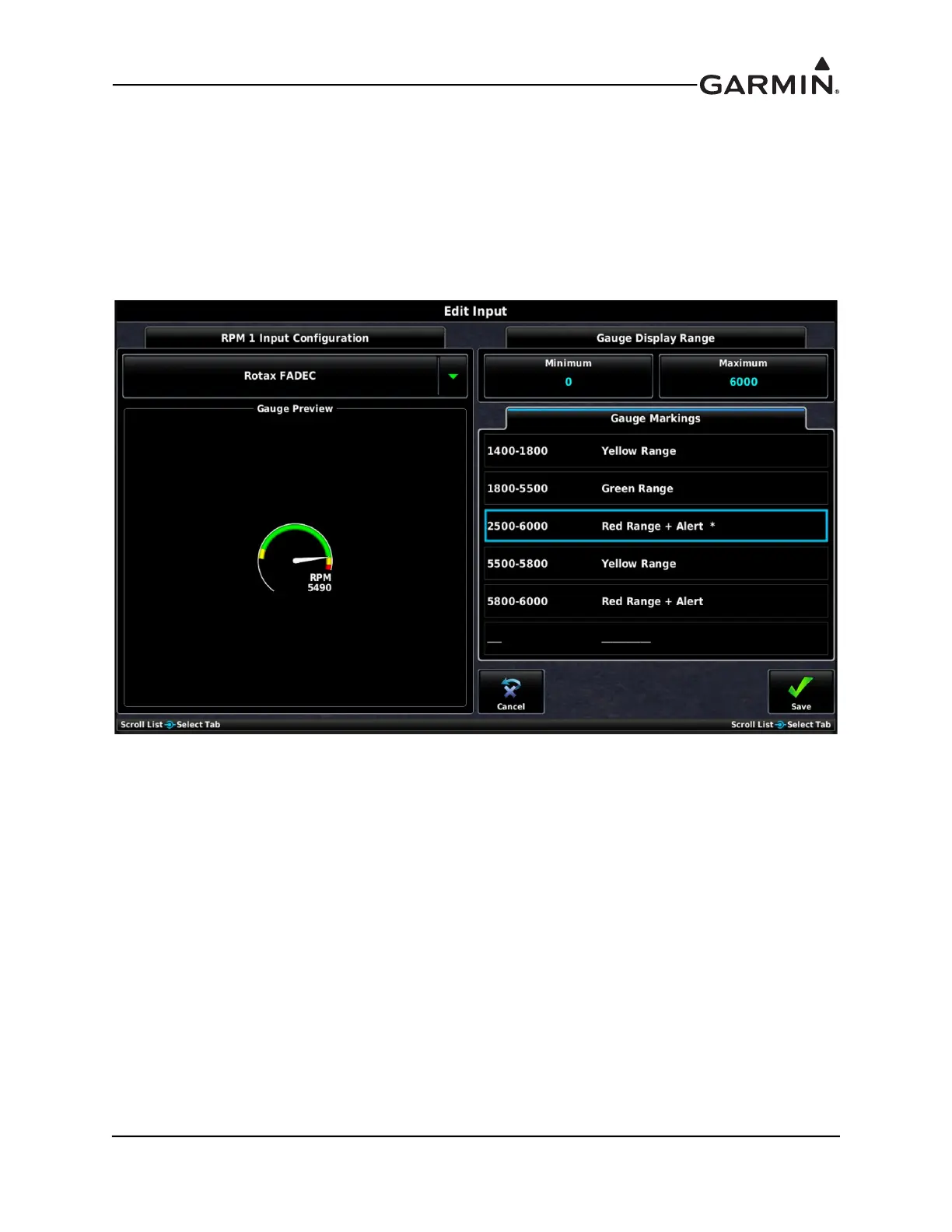

Figure I-5 Dynamic RPM

Garmin G3X Specifications

General

Display Type	LCD
Touchscreen	Yes
Power Input	10-32 VDC
Connectivity	Bluetooth, Wi-Fi (optional)
Interfaces	RS-232
GPS	Internal GPS/WAAS receiver
AHRS	Integrated AHRS
Air Data Computer	Integrated Air Data Computer
Autopilot Compatibility	Compatible with Garmin autopilots
Operating Temperature	-20°C to +55°C
Sunlight Readability	Sunlight readable display
Screen Size	10.6 inches
