190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual
Rev. AV Page 30-149
30.4.20 Sound Configuration Page

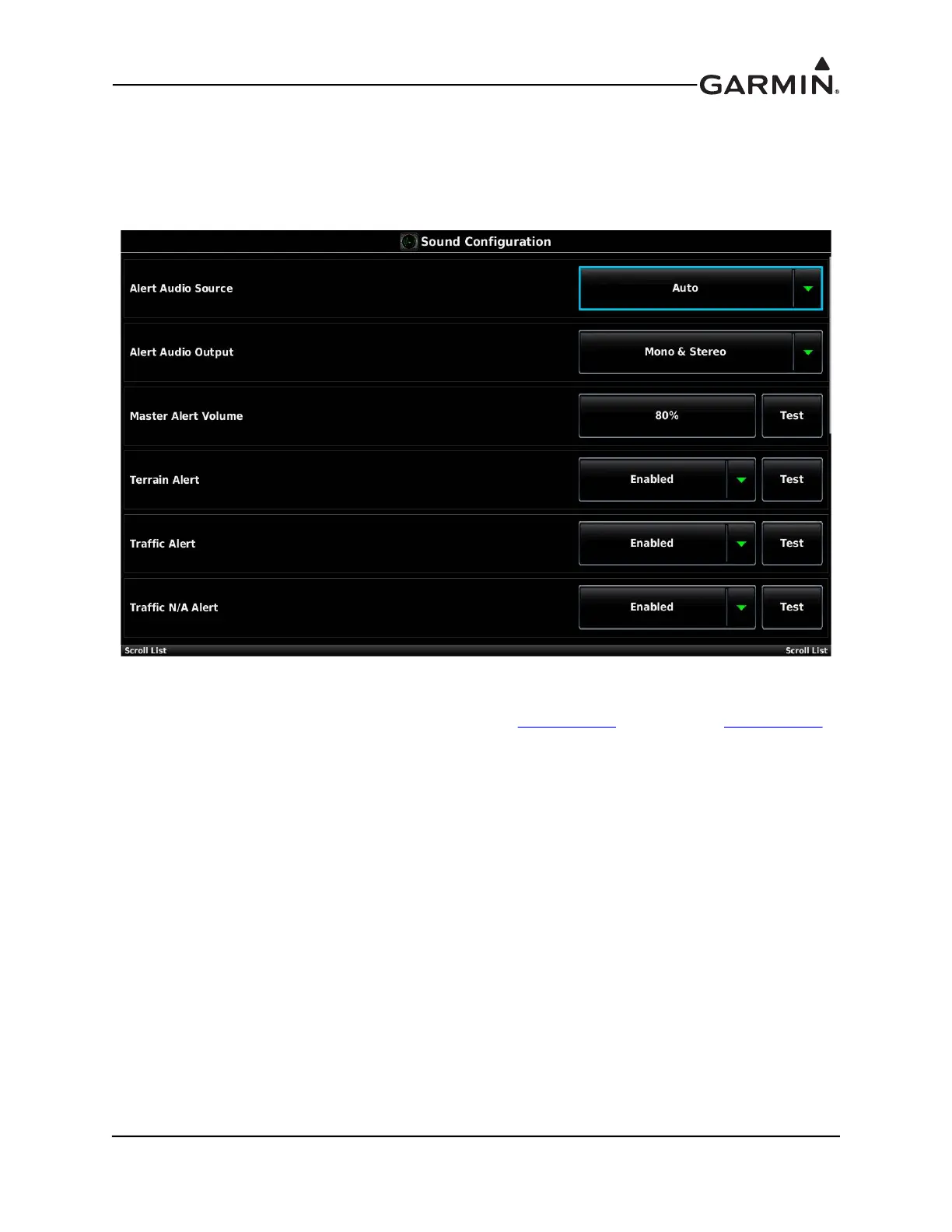

The Sound Configuration Page allows setting the parameters for various alert and message tones. Test
buttons are provided to test audio volume and configuration.
1. In configuration mode, use the Touch Panel or a Move Selector Knob to select the Sound
Configuration Page.
2. Use the Touch Panel or a Move Selector Knob to select the desired configurable item and make the
desired selection.
3. Enter data (where applicable) using the Keyboard (Section 30.4.1
) or Slider Bar (Section 30.4.2).
4. Press the Back key to return to the Configuration Mode page when finished (if desired).
The configuration options for the Sound Configuration Page are listed/described as follows:
Alert Audio Source–If more than one GDU 4XX is installed, an Alert Source field will appear on the
SOUND Configuration page. The Alert Source item may be configured so a single specific GDU always
outputs alert audio. Or, the Alert Source item may be configured to "Auto", which will cause whichever
display is present to output alert audio, in the following priority order: PFD1, PFD2, MFD1, MFD2, PFD3,
MFD3.
Alert Audio Output–If set to Mono & Stereo, alert tones and messages will be output on both the mono
and stereo outputs. If set to Mono Only, alert tones and messages will be output only on the mono output.
If set to Stereo Only, alert tones and messages will be output only on the Stereo output.
Master Alert Volume–Controls the volume level (0%-100%) of all audio alerts that do not have their own
volume setting, including autopilot, flight director, terrain, traffic, and CAS messages.
Terrain Audio–Enables/disables terrain awareness audio alerts.
Traffic Audio–Enables/disables Traffic Audio alerts.
Traffic N/A Alert–Enables/disables Traffic Not Available alerts.
