190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual
Rev. AV Page 30-138

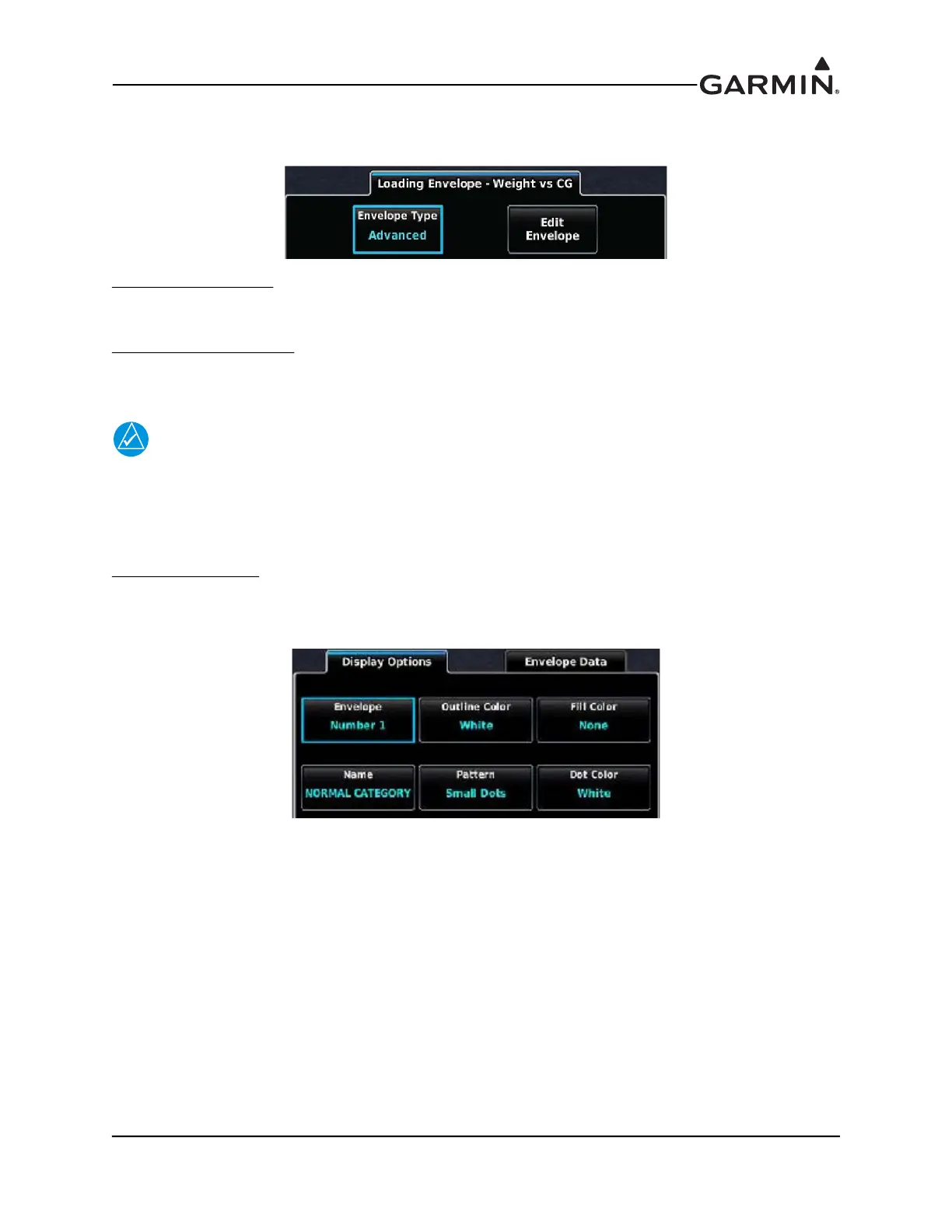

30.4.16.1 Loading Envelope - Weight vs CG
The G3X Touch EFIS allows for Simple and Advanced envelope types to be used.
Simple Envelope Type:
Allows for a basic loading envelope using minimum and maximum center of
gravity and weights for a particular aircraft. The Loading Limits window contains fields for the entry of
minimum and maximum aircraft weight, and the minimum and maximum CG location.
Advanced Envelope Type:
Allows for a more complex weight vs. CG loading graph that mirrors the
loading envelope graph on the aircraft’s weight and balance documentation. When Advanced is selected
the loading window changes to Loading Envelope – Weight vs. CG.
NOTE
Enter as many stations as required to accommodate various aircraft loading and seating
configurations.
To edit the envelope in Advanced envelope type mode, select Edit Envelope. The Display Options tab will
be displayed.
Display Options Tab:
Allows for configuring the display of the envelope as desired. Up to four loading
envelopes may be entered. Select data and add the category under name as desired. If the aircraft is
certified in two categories, one would be entered under Envelope Number 1 and the other under Envelope
Number 2.
