15 GPS 20A (WAAS GPS POSITION SOURCE) INSTALLATION
This section contains general information as well as installation information for the GPS 20A. Use this
section to mount the GPS 20A unit.
NOTE
The GPS 20A can only be used with GA 35, GA 36, or GA 37 antennas.
,

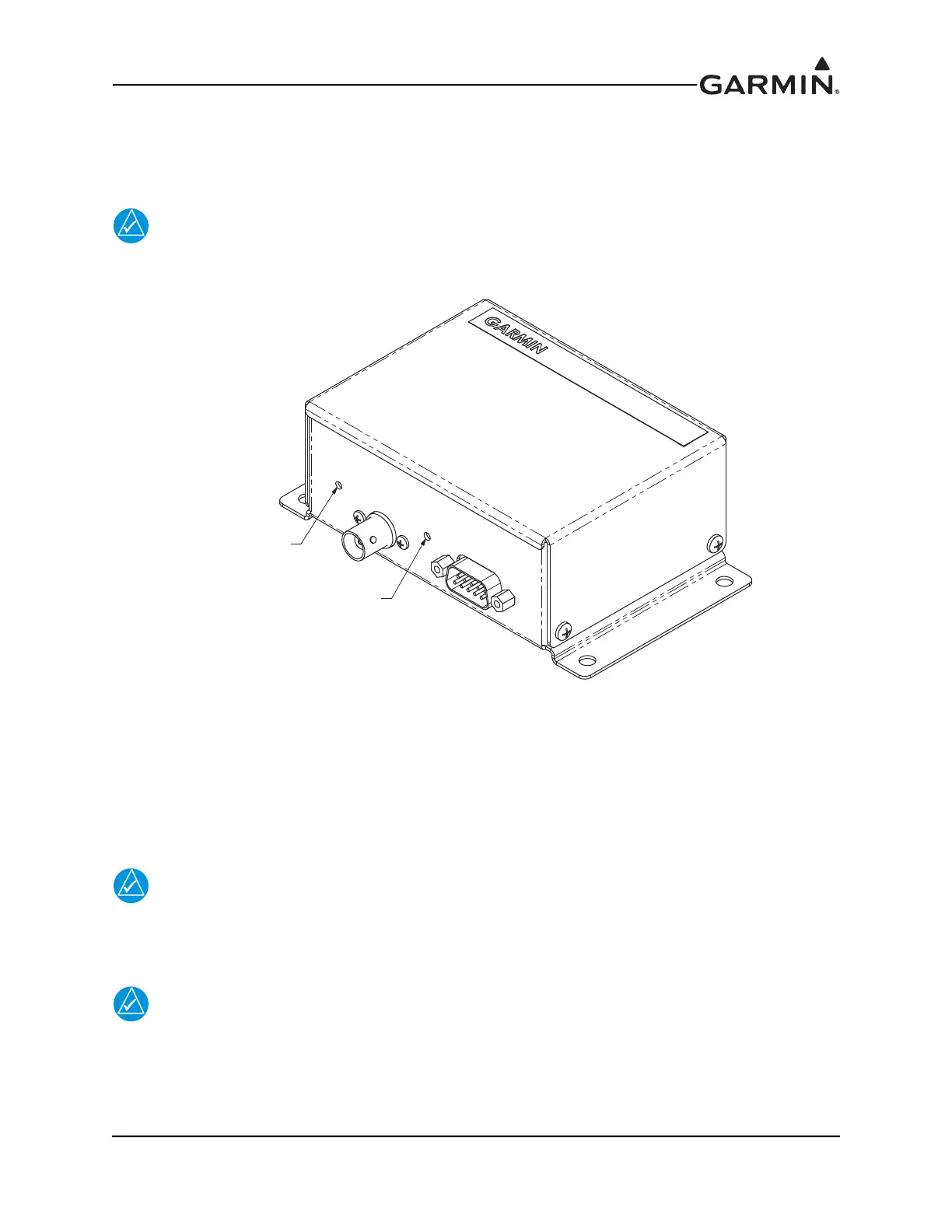

Figure 15-1 GPS 20A Unit View
15.1 Equipment Description
The GPS 20A provides an ADS-B Out position source. The WAAS/SBAS position information is
compatible with a wide range of 1090 ES transponders to meet the position requirements of
14 CFR 91.227. The GPS 20A also provides position data to all G3X™ avionics and G3X Touch™
avionics displays.
NOTE
If a GPS 20A (and connected GA 35, GA 36, or GA 37 antenna) is used for GPS position,
additional GPS antennas (connected to GDU™ 37X/4XX display units) may be used for
redundancy, but are not required.
NOTE
The GPS 20A is not an FAA-approved product and thus is not eligible for installation in
certified aircraft.
GPS STATUS LED
UNIT STATUS LED
J201
