190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual
Rev. AV Page 23-47
23.9 GMC 507 (AFCS Mode Controller)
23.9.1 J7001 Connector

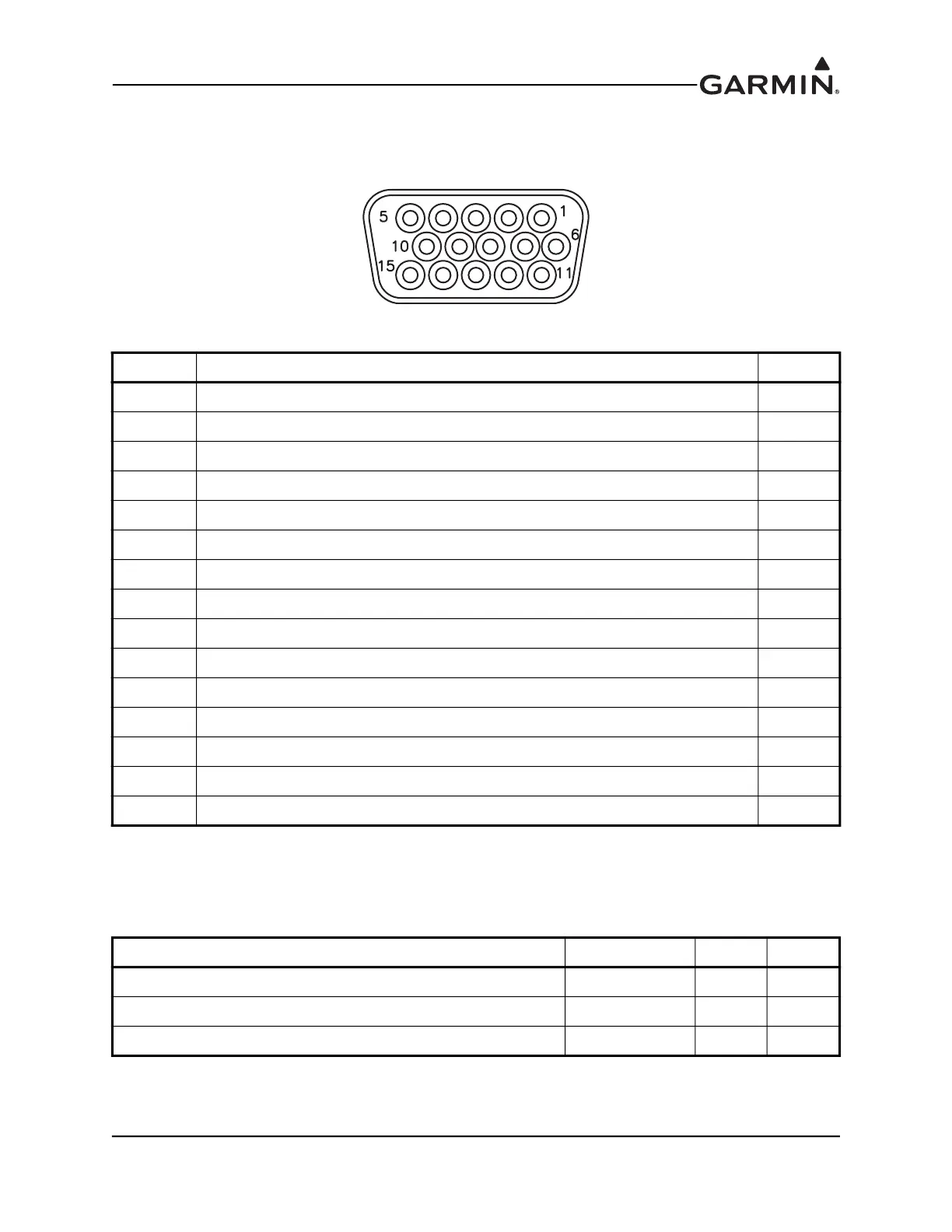

Figure 23-20 J7001 on GMC 507, as viewed looking at connector on unit
23.9.2 Power
This section covers the power input requirements. The GMC 507 is compatible with 14V and 28V systems.
AIRCRAFT POWER 1 and AIRCRAFT POWER 2 are “diode ORed” to provide power redundancy.
Pin Pin Name I/O
1 UNIT ID 1 In
2 UNIT ID 2 In
3 CAN HI I/O
4 CAN LO I/O
5 RESERVED --
6 CAN BUS TERM 2 --
7 AIRCRAFT POWER 1 In
8 CAN BUS TERM 1 --
9 AIRCRAFT POWER 2 In
10 TO/GA DISCRETE IN In
11 LIGHTING BUS HI In
12 RESERVED --
13 RESERVED --
14 RESERVED --
15 POWER GROUND --
Pin Name Connector Pin I/O
AIRCRAFT POWER 1 J7001 7 In
AIRCRAFT POWER 2 J7001 9 In
POWER GROUND J7001 15 --
