Garmin G3X User Manual

190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual
Rev. AV Page B-14
B.3.3 Lancair Legacy
B.3.3.1 GMU 22 Magnetometer Installation Guidance
1. A possible mounting location is in the upper section of the fuselage cavity, just forward of the ver-
tical tail section. The recommended location is shown in Figure B-19.

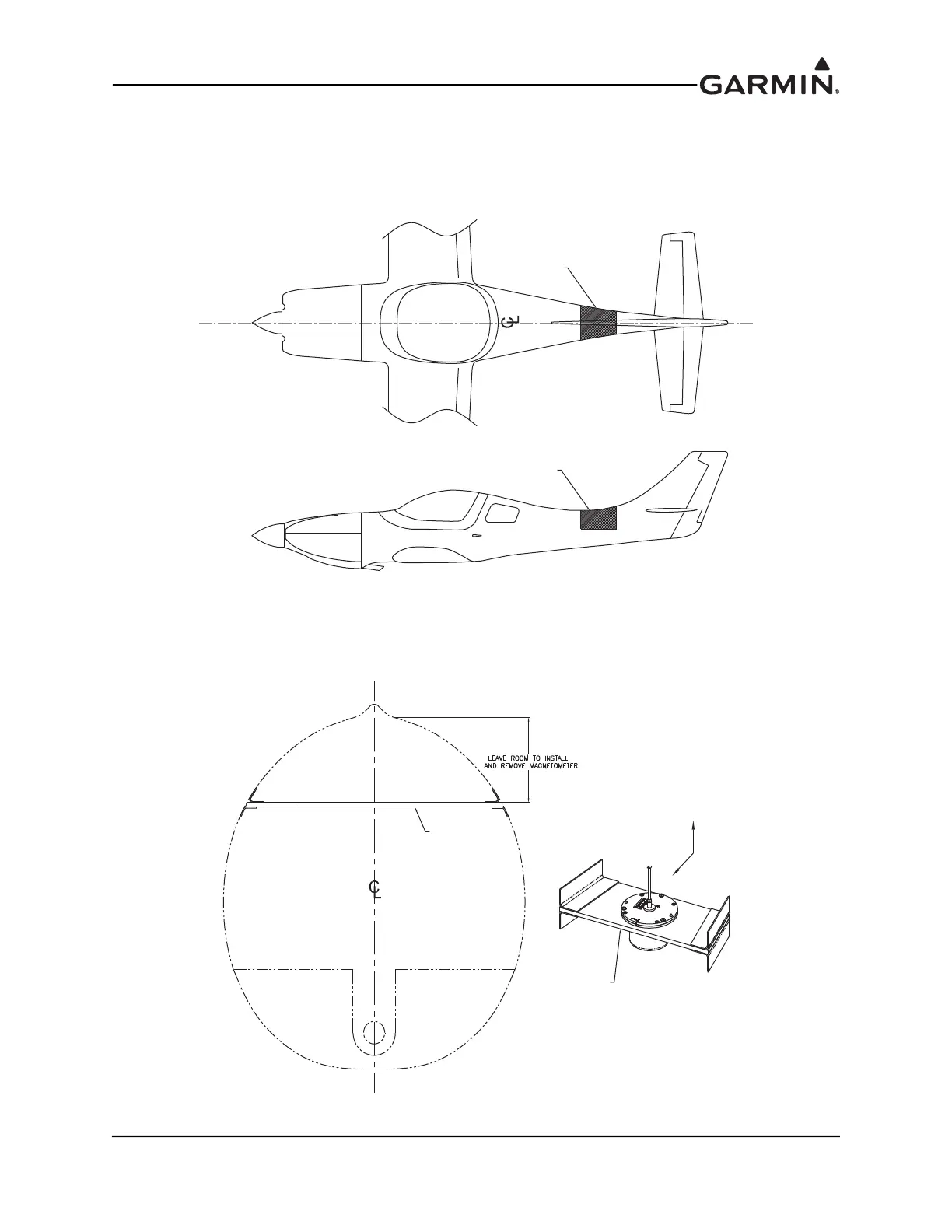

Figure B-19 Lancair Legacy Magnetometer Location
2. In determining a shelf location, make sure there is enough room above the shelf to install or
remove the magnetometer, as well as provide clearance for the associated cable harness as shown
in Figure B-20.
Figure B-20 View Looking AFT At Recommended Magnetometer Location
RECOMMENDED
LOCATION
RECOMMENDED
LOCATION
UP
FWD
MAGNETOMETER
SHELF (REF)
MAGNETOMETER
SHELF (REF)
