190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual
Rev. AV Page H-117
RS-232 Ports 2-4: GTX 35R/45R/335R/345R units only.
The available selections are:
NOTE
A "Configuration Error" indication is most commonly the result of one or more items on
the transponder configuration page which have been left un-configured. For proper
transponder operation, all items on this page must be properly configured.

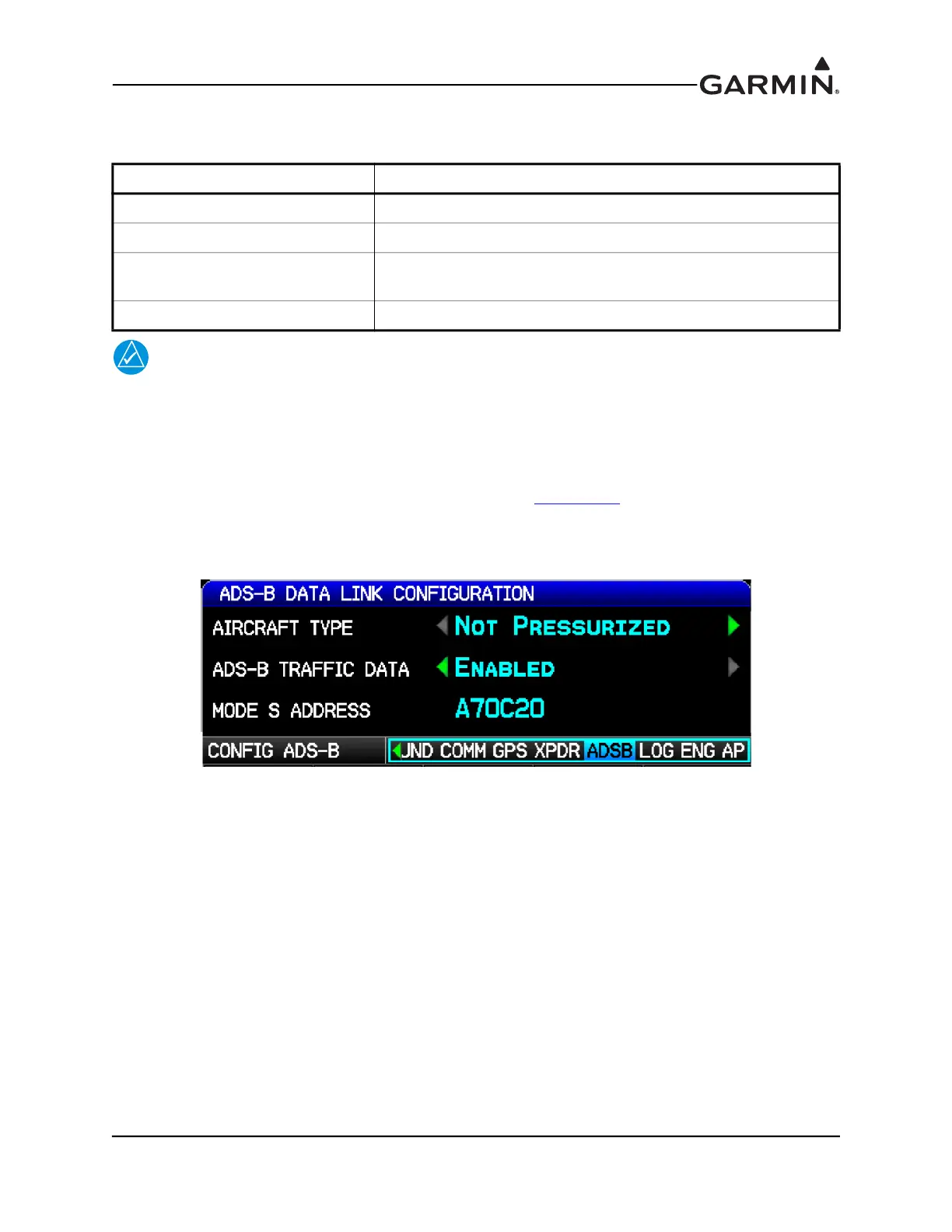

H.4.17 ADS-B Configuration Page
The ADS-B Data Link Configuration Page is only displayed when the unit is configured to communicate
with and has successfully communicated with a GDL 39 (see Section 24.2
for interface and configuration
info). Aircraft Type should be set to “Not Pressurized”. The Mode S Address field is displayed (and is
editable) if configured for a Mode S Transponder or not configured for any transponder. The Mode S
Address field is not displayed if configured for a non-Mode S Transponder, such as a GTX 327.
Selection Description
None GTX RS-232 port not used
ADS-B+ GPS GPS position input from a TSO GPS source (9600 baud)
Connext® computer application
Format 3 (GTX X45 only)
Connext weather and traffic data for a Flight Stream 110/210
GNS (GTX X45 only) Weather data to / GPS position input from a GNS
