Garmin G3X User Manual

190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual
Rev. AV Page 30-112
30.4.10.11 Analog Autopilot Configuration Page
The Analog Autopilot Configuration Page allows configuration for installations using a GAD 29B data
converter to interface to a non-Garmin autopilot.
Wiring guidance for analog autopilot installations is available in Appendix B of the G3X Touch EFIS Part
23 AML STC Installation Manual, 190-02472-01.

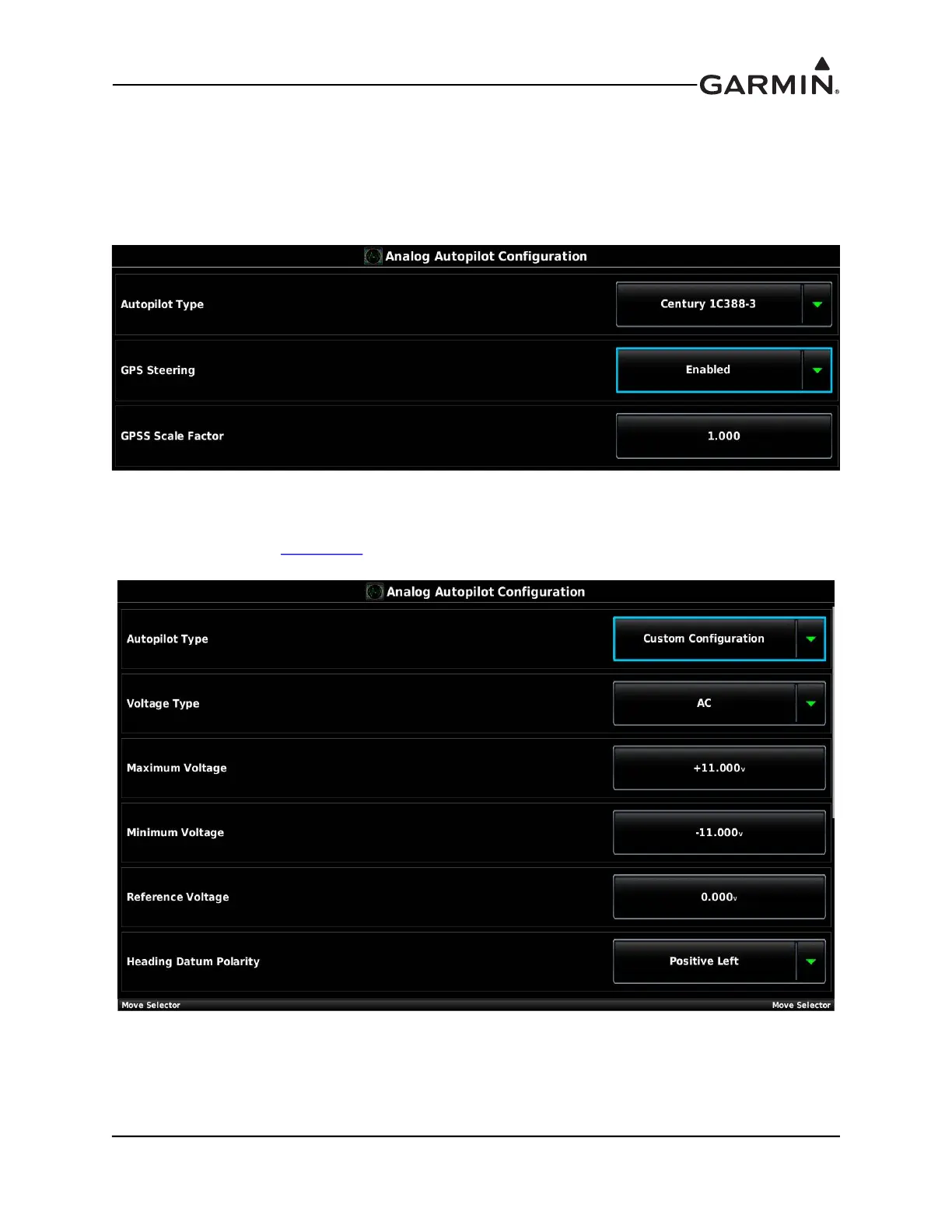

Figure 30-38 Analog Autopilot Configuration Page
The two following screenshots show the available configuration settings for Custom Configuration. The
settings are described in Table 30-12
.
Figure 30-39 Analog Autopilot Configuration Page, Custom Config Screen (upper)
