190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual

Rev. AV Page 23-57

23.14 GSU 25 (AHRS/Air Data Sensor Unit)

23.14.1 J251

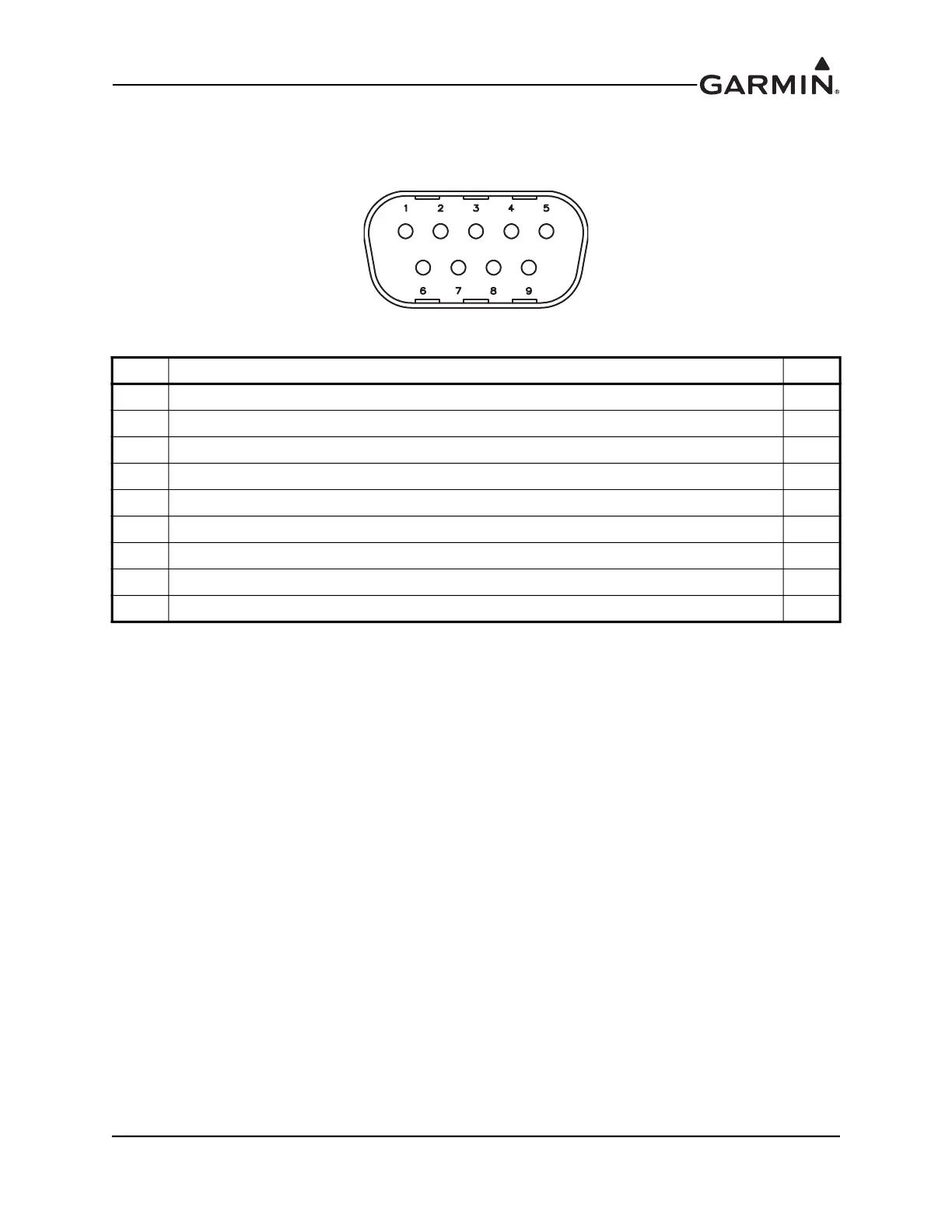

Figure 23-25 J251 on GSU 25, as viewed looking at connector on unit

Pin Pin Name I/O

1 CAN H I/O

2 CAN L --

3 RESERVED --

4 RS-232 RX 1 In

5 RS-232 TX 1 Out

6 GROUND --

7 AIRCRAFT POWER 1 In

8 AIRCRAFT POWER 2 In

9 GROUND --
