190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual
Rev. AV Page 23-10
23.2 GAD 29/29B/29C/29D (ARINC 429 Adapter)
NOTE
References to the GAD 29 throughout this manual apply equally to the GAD 29C.
References to the GAD 29B throughout this manual apply equally to the GAD 29D.
23.2.1 J291 Connector

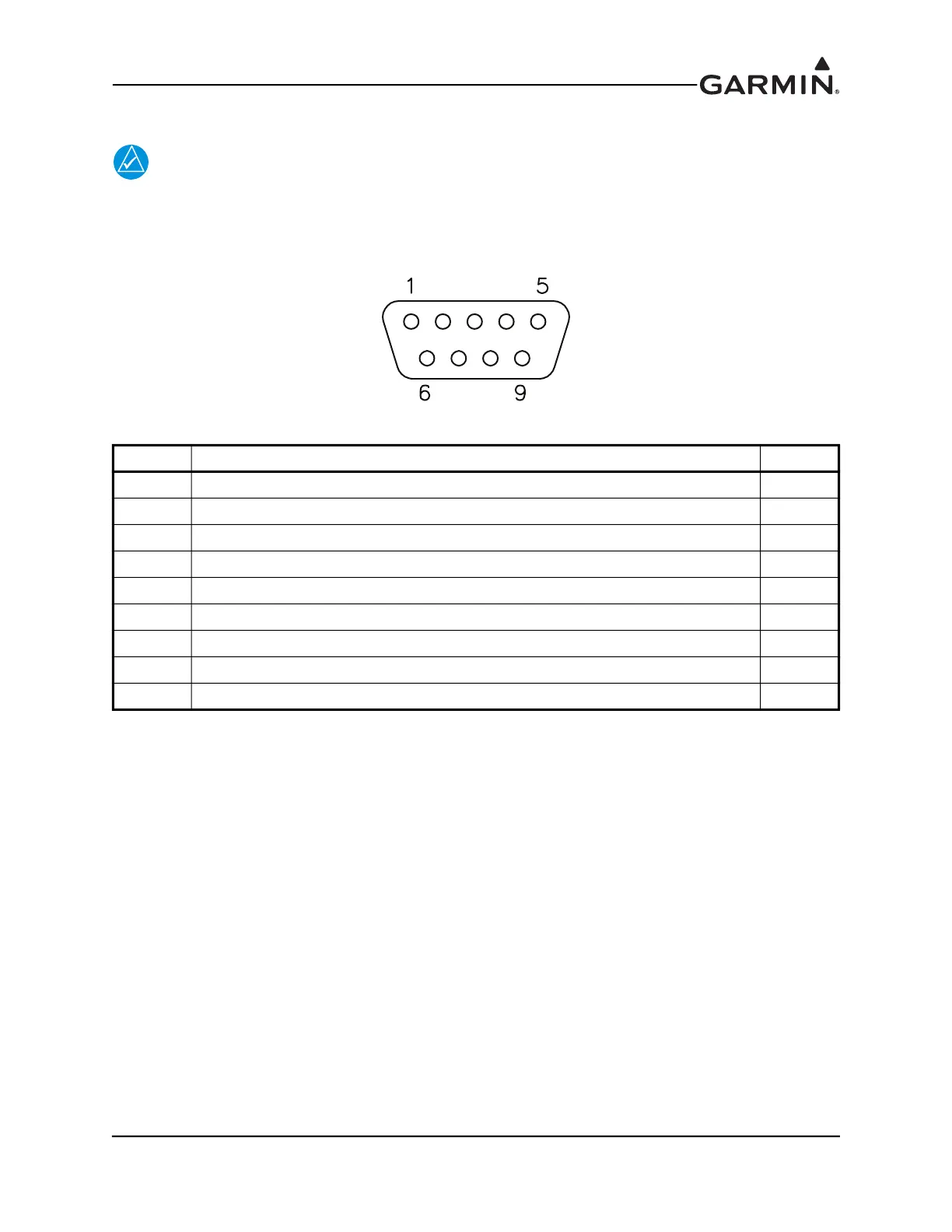

Figure 23-4 J291 on GAD 29/29B/29C/29D, as viewed looking at connector on unit
Pin Pin Name I/O
1 CAN HI I/O
2 CAN LO I/O
3 RESERVED --
4 RESERVED --
5 RESERVED --
6 GROUND --
7 AIRCRAFT POWER 1 In
8 AIRCRAFT POWER 2 In
9 GROUND --

Garmin G3X Specifications

General

Display Type	LCD
Touchscreen	Yes
Power Input	10-32 VDC
Connectivity	Bluetooth, Wi-Fi (optional)
Interfaces	RS-232
GPS	Internal GPS/WAAS receiver
AHRS	Integrated AHRS
Air Data Computer	Integrated Air Data Computer
Autopilot Compatibility	Compatible with Garmin autopilots
Operating Temperature	-20°C to +55°C
Sunlight Readability	Sunlight readable display
Screen Size	10.6 inches
