Garmin G3X - F.5.2.1 J732 Connector

190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual
Rev. AV Page F-7
F.5.2.1 J732 Connector

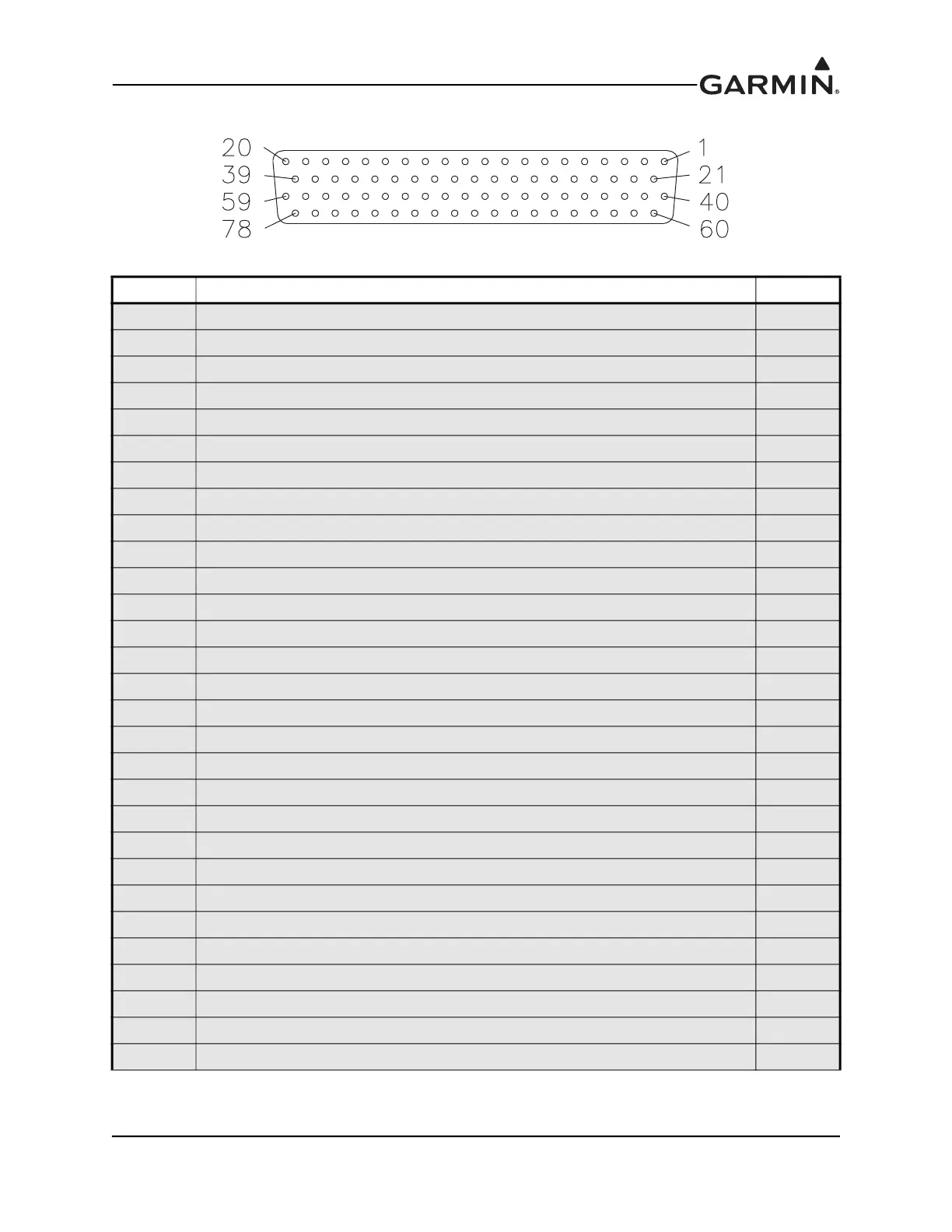

Figure F-4 J732 on GSU 73, as viewed looking at connector on unit
Pin Pin Name I/O
1 CHT 2 LO In
2 CHT 3 HI In
3 EGT 2 LO In
4 EGT 3 LO In
5 FUEL 1 LO In
6 MAN PRESS LO In
7 POS 3/GP 3/FUEL 3 LO In
8 POS 2/GP 2/TIT 2 LO In
9 THERMOCOUPLE REF IN LO In
10 THERMOCOUPLE REF IN HI In
11 EGT 6/MISC PRESS LO In
12 VOLTS 2 LO In
13 CHT 6 LO In
14 OIL TEMP LO In
15 OAT PROBE IN HI In
16 OAT PROBE POWER OUT Out
17 RPM In
18 SIGNAL GROUND --
19 FUEL FLOW In
20 CONFIG MODULE CLOCK Out
21 CHT 2 HI In
22 CHT 3 LO In
23 EGT 2 HI In
24 EGT 3 HI In
25 FUEL 1 HI In
26 FUEL PRESS HI In
27 POS 3 / GP 3 / FUEL 3 HI In
28 POS 2 / GP 2 / TIT 2 HI In
29 EGT 5 LO In
*Indicates Active Low
