190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual

Rev. AV Page H-102

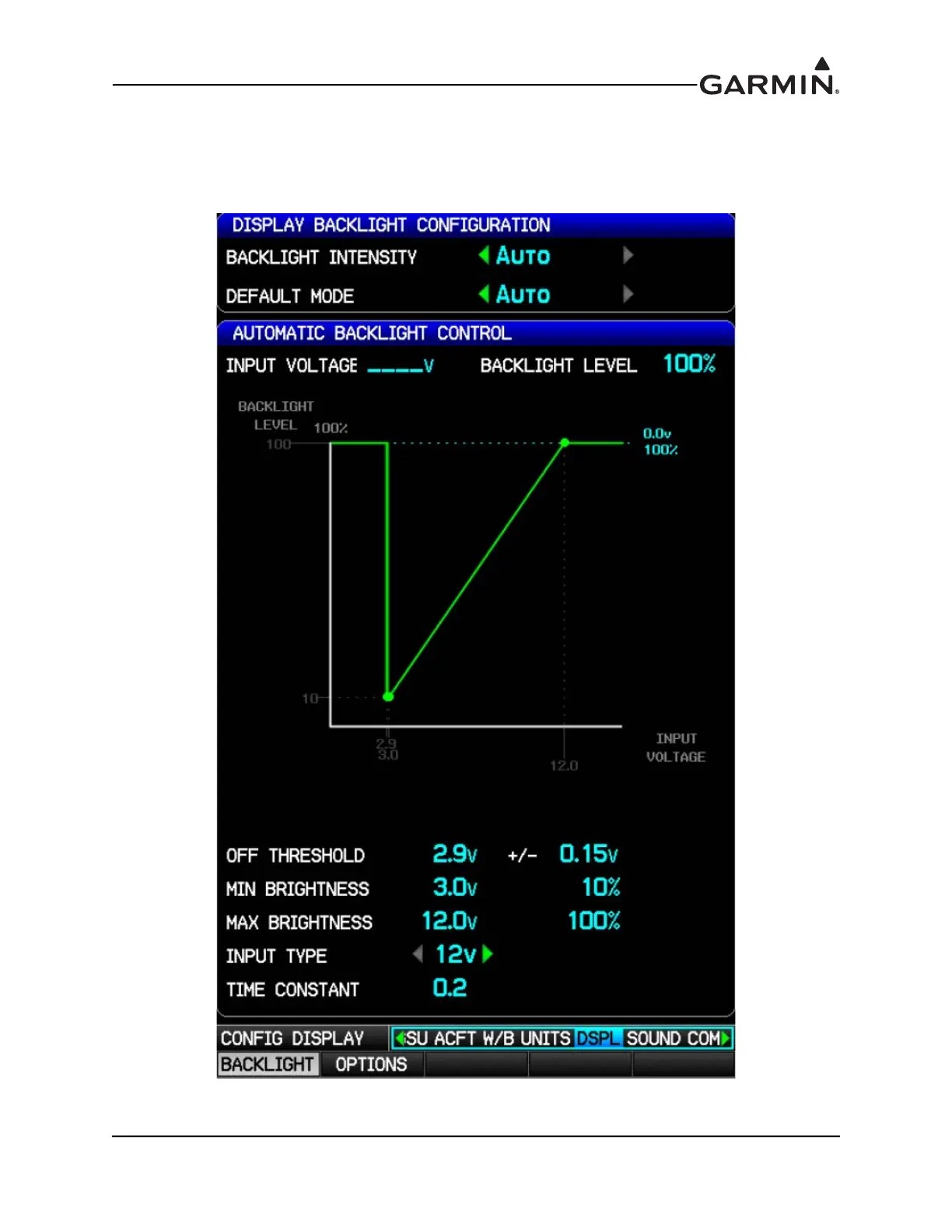

H.4.12 DSPL (Display) Configuration Page

The DSPL Configuration Page allows setting the parameters for display backlight and display options

configuration.
