190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual

Rev. AV Page 23-23

23.4 GEA 24 (EIS Interface)

23.4.1 J241 Connector

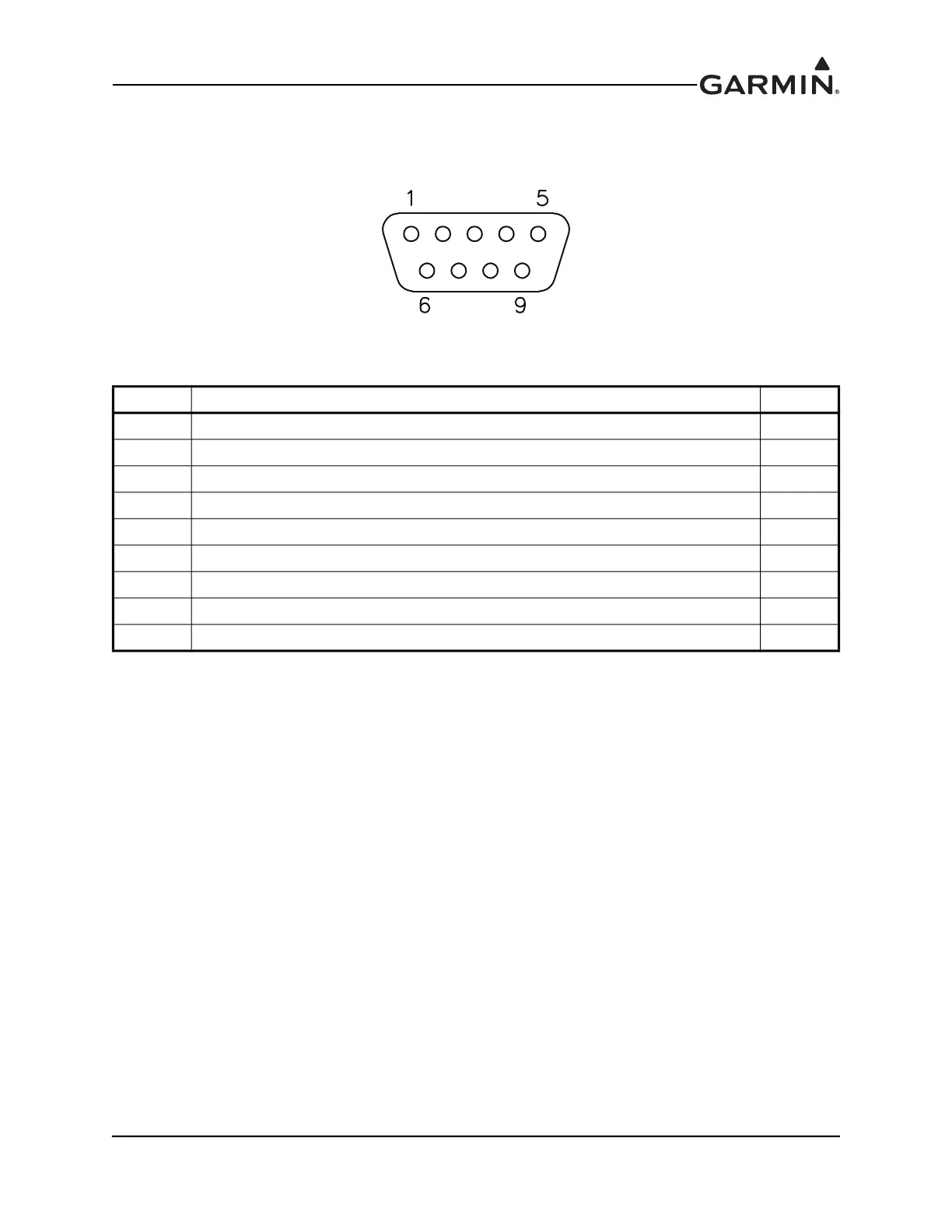

Figure 23-11 J241 on GEA 24, as viewed looking at connector on unit

Pin Pin Name I/O

1 CAN HI I/O

2 CAN LO I/O

3 RESERVED --

4 RS-232 RX In

5 RS-232 TX Out

6 GROUND --

7 AIRCRAFT POWER 1 In

8 AIRCRAFT POWER 2 In

9 GROUND --
