Rev. AV Page 28-1
SHIELD TERMINATED TO GROUND
TWISTED SHIELDED 3 CONDUCTOR
SHIELD FLOATS
TWISTED SHIELDED 3 CONDUCTOR

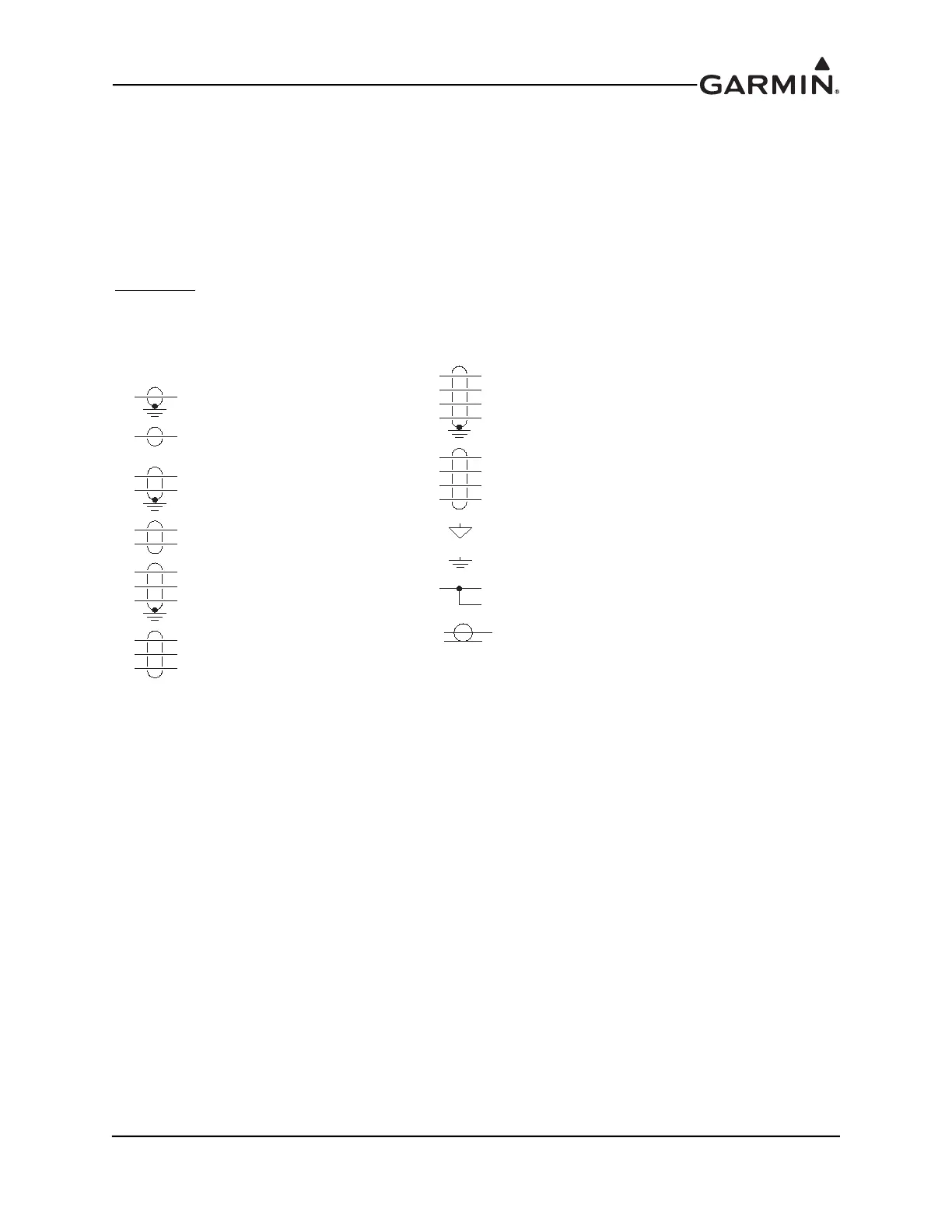

4. SYMBOL DESIGNATIONS
TWISTED SHIELDED PAIR
SHIELD TERMINATED TO GROUND
SHIELD FLOATS
TWISTED SHIELDED PAIR
TWISTED SHIELDED SINGLE CONDUCTOR
SHIELD TERMINATED TO GROUND
SHIELD FLOATS
TWISTED SHIELDED SINGLE CONDUCTOR
1. UNLESS OTHERWISE NOTED, ALL STRANDED WIRE MUST CONFORM TO MIL-W-22759/16 OR EQUIVALENT
2. UNLESS OTHERWISE NOTED, ALL SHIELDED WIRE MUST CONFORM TO MIL-C-27500 OR EQUIVALENT
3. UNLESS OTHERWISE NOTED, ALL WIRES ARE 24 GAUGE MINIMUM. MOST WIRES SHOULD USE 22 GAUGE.
5. UNLESS OTHERWISE NOTED, ALL SHIELD GROUNDS MUST BE MADE TO THE RESPECTIVE UNIT BACKSHELLS.
ALL OTHER GROUNDS SHOULD BE TERMINATED TO AIRCRAFT GROUND AS CLOSE TO THE RESPECTIVE UNIT AS POSSIBLE.
NOTES:
WIRE SPLICE CONNECTION
COAXIAL CABLE
SHIELD TERMINATED TO GROUND
TWISTED SHIELDED 4 CONDUCTOR
SHIELD FLOATS
TWISTED SHIELDED 4 CONDUCTOR
N/C = NO CONNECTION
S
GARMIN SHIELD BLOCK GROUND
AIRCRAFT GROUND
6. SENSORS SUPPLIED WITH THE ENGINE.
7. SENSORS SUPPLIED WITH THE GARMIN ROTAX 912 SENSOR KIT P/N K00-00514-00.
8. ROTAX P/N 456180, 956413 OR 956415 MAY BE CONFIGURED.
10. IF MEASURING BATTERY CURRENT, PLACE THE SHUNT BETWEEN THE BATTERY POSITIVE TERMINAL AND THE BATTERY CONTACTOR.
IF MEASURING ALTERNATOR CURRENT, PLACE THE SHUNT BETWEEN THE ALTERNATOR B LEAD AND THE POWER DISTRIBUTION BUS.
9. PINOUT SHOWN FOR PACKARD CONNECTOR SUPPLIED WITH KAVLICO PRESSURE TRANSDUCERS. WIRE COLORS ARE SHOWN
11. NOT INCLUDED IN THE GARMIN ROTAX 912 SENSOR KIT P/N K00-00514-00. THE KAVLICO P4055-5020-3 CAN BE PURCHASED
THROUGH A GARMIN G3X™ AVIONICS DEALER (P/N 011-04202-20).
12. FOR RPM 1 INPUT USE GARMIN P/N 682-00012-00 ZENER DIODE, P/N 680-00006-D0 DIODE, AND
P/N 902-A300R-F0 300 OHM 1% 1/2W RESISTOR AS SHOWN IN DIAGRAM BELOW. THESE 3 PARTS ARE INCLUDED IN KIT
13. USE THE KAVLICO P4055-5020-2 (P/N 011-04020-10) FUEL PRESSURE SENSOR WITH THE ROTAX 912 ENGINE.
USE THE UMA N1EU07D PRESSURE SENSOR WITH THE ROTAX 914 ENGINE.
P/N 011-02348-00.
FOR REFERENCE ONLY. ALWAYS CONFIRM CORRECT SENSOR CONNECTIONS USING SENSOR MANUFACTURER DOCUMENTATION
BEFORE CONNECTING WIRES.
