16.5.2.4 CWS/DISCONNECT
The CWS/DISCONNECT button is used to disengage the autopilot system. It can also optionally be used
for autopilot engagement and control wheel steering (see section 9.14.1). The CWS/DISCONNECT input
to all servos should be tied together and connected to a normally open momentary push button that
connects to ground when pressed (see Figure 24-1.7
).
NOTE
The CWS/DISCONNECT button must be mounted where it is easily accessible to the pilot
during all phases of flight. The pilot must have ability to quickly disconnect the autopilot
under all circumstances.
16.5.2.5 GSA 28 Removal Adapter
The GSA 28 connector kit is shipped with a GSA 28 removal adapter (011-03158-00). This part is not
intended to be installed with the GSA 28, but is used to replace the GSA 28 when the harness connector is
un-plugged. The removal adapter contains an internal 120 Ω resistor between pins 2 and 3 for CAN
termination. It also contains shorts between pins 11 & 13 and 12 & 14 to pass through power for trim
motors. The intention of this component is to allow operation of the CAN bus and trim motors when the
servos are not plugged into the harness. It is recommended that a removal adapter is kept with each servo
installation, in case the GSA 28 needs to be removed without losing functionality of the CAN bus and trim
motors.

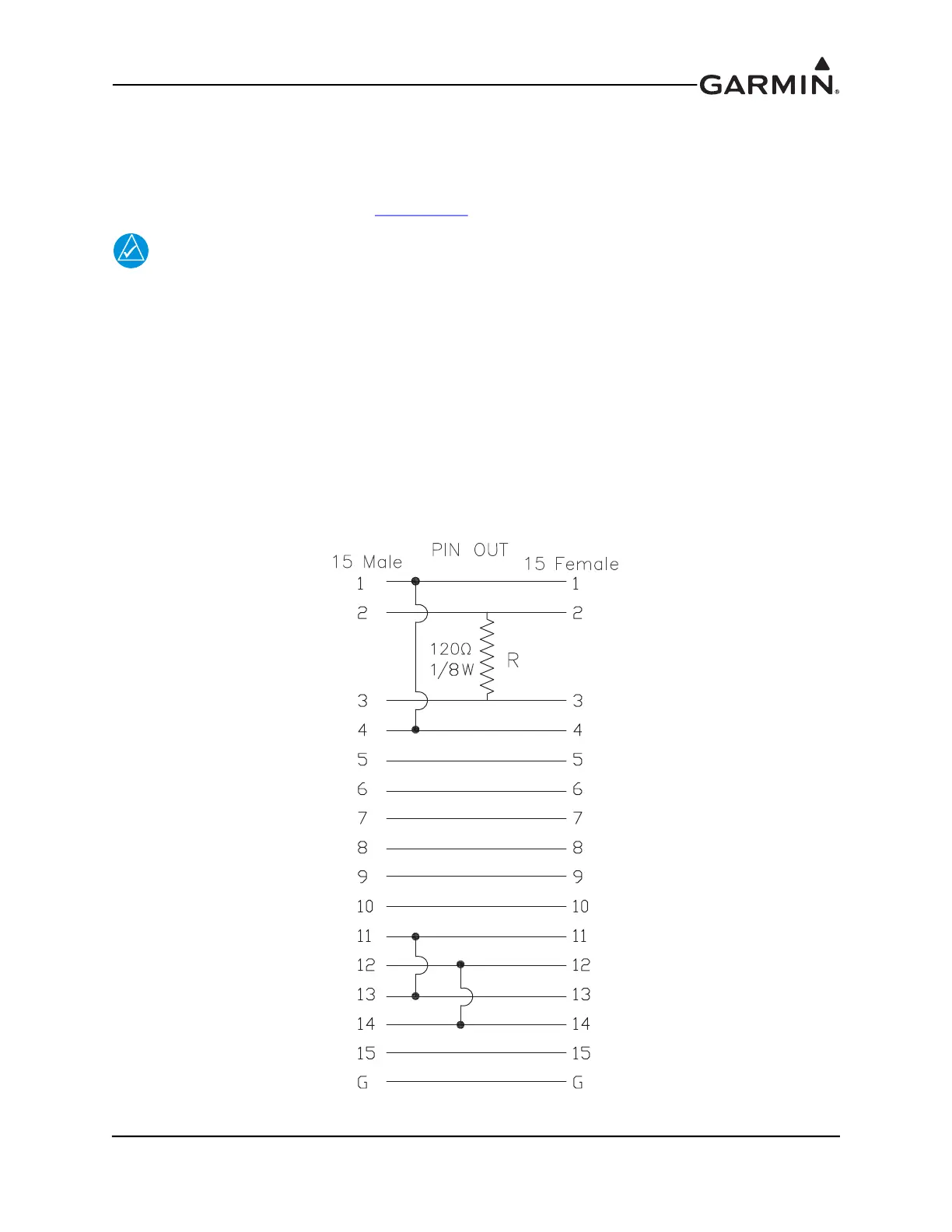

Figure 16-3 Wiring Diagram For GSA 28 Removal Adapter
