190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual
Rev. AV Page 21-22
21.3.3 Oil Temperature
Oil temperature can be measured using the specific resistance temperature detector (RTD) and thermistor
sensors listed in Table 21-1
.
21.3.3.1 Lycoming/Continental Oil Temperature Sensor Installation
Garmin sensor kits for Lycoming and Continental engines include the UMA 1B3-2.5R platinum RTD
probe (Garmin P/N 494-70004-00). This probe is designed for oil temperature probe wells with 5/8-18
threads.
General Installation Guidance – Refer to the applicable engine manual for proper location of the oil
temperature sensor. The sensor is usually installed near the oil filter.
1. Cut the safety wire and remove the existing vent plug (Figure 21-9), if installed.
2. To prevent galling of the threads, apply a small amount of engine oil to the probe threads.
3. Make sure that an unused copper crush gasket is present on the probe, and install the probe into the
engine (black side of crush gasket down).
NOTE
Crush gaskets can only be used once. A new gasket must be installed any time the probe is
removed and installed.
4. Tighten the probe to the torque as specified by the engine manufacturer.
5. Safety-wire the probe to the engine case as appropriate.
6. Connect the supplied connector to the appropriate inputs on the GEA 24/GSU 73 as referenced in
the G3X interconnects in Section 27
. Secure the connector and wire assembly to an appropriate
location in the engine compartment to provide strain relief.

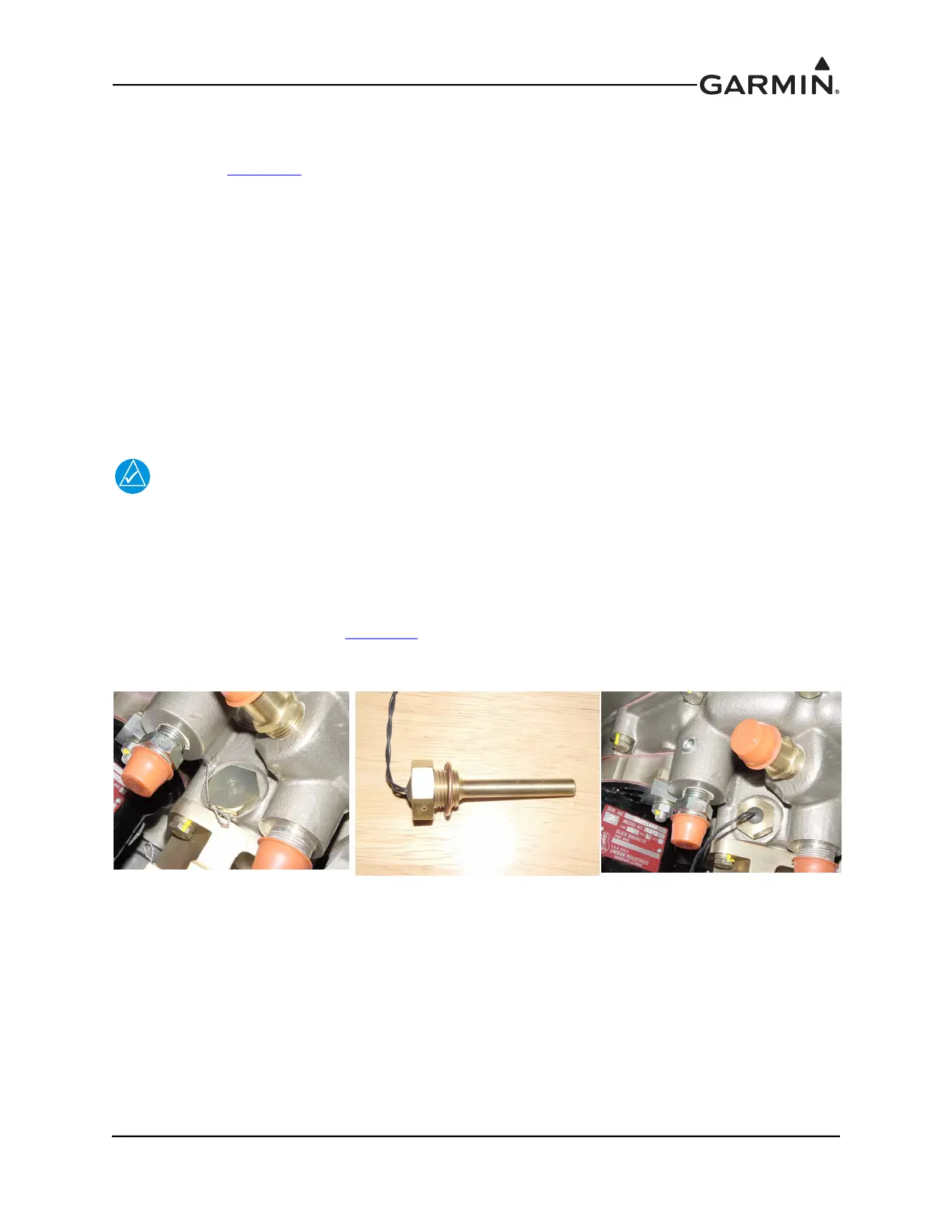

Figure 21-9 Vent Plug Figure 21-10 Oil Temperature
Probe
Figure 21-11 Oil
Temperature Probe Installed
(Crush Gasket Not Shown)
