190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual
Rev. AV Page 18-5
18.5 Outline and Installation Drawings

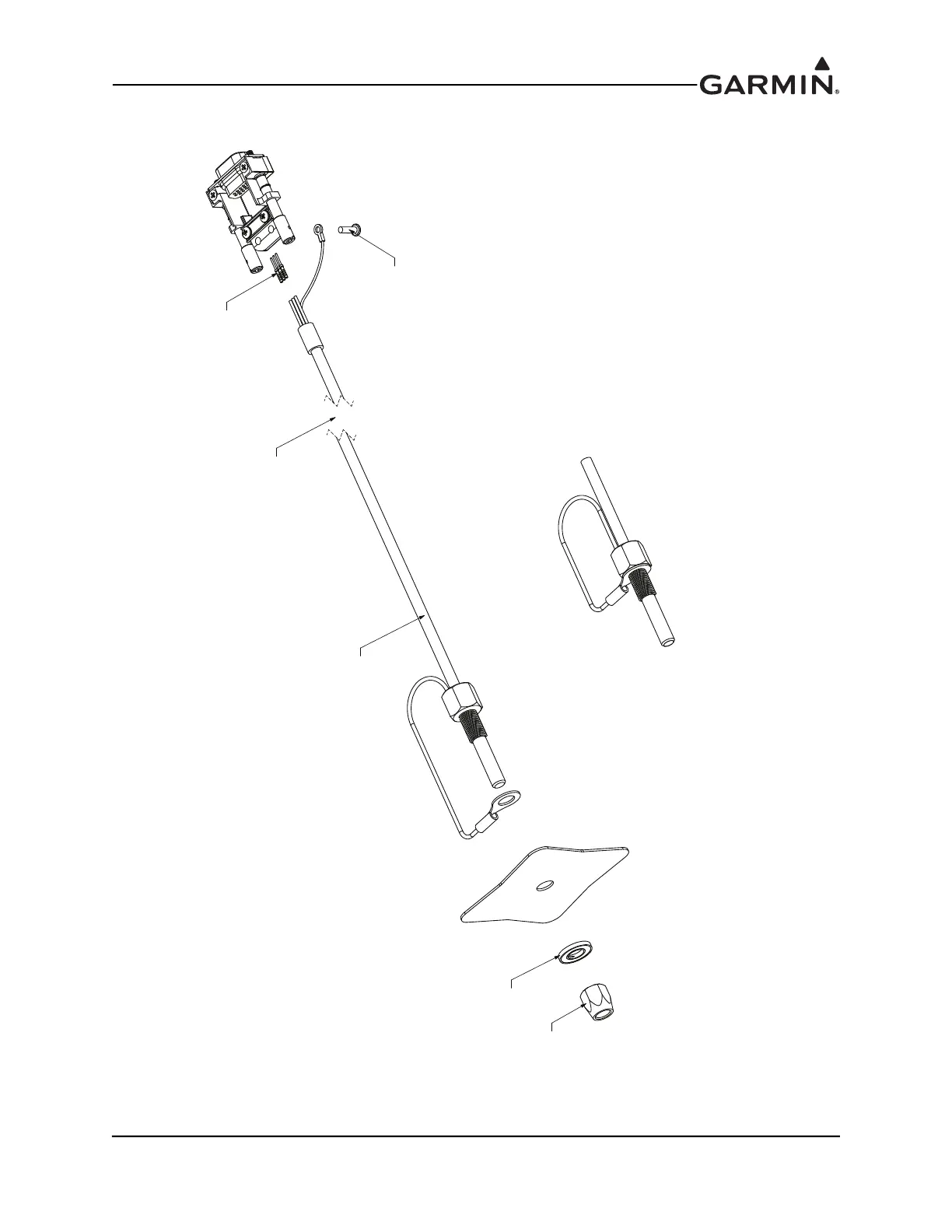

Figure 18-2. GTP 59 O.A.T. Probe Installation Drawing
NOTES:
SUPPLIED CABLE LENGTH IS 10' +/- 6". CABLE MAY BE CUT TO NEEDED LENGTH OR
1.
LENGTHENED UP TO 25' (15' ADDITIONAL) AS NEEDED. USE THREE-WIRE TWISTED
SHIELDED CABLING AND HIGH QUALITY CRIMPED OR SOLDERED CONNECTIONS FROM
THE PROBE TO THE EXTENSION WIRE.
SEE NOTE 1
210-00055-00
212-00026-00
494-00022-XX
211-60234-08
336-00021-00
