Garmin G3X User Manual

190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual
Rev. AV Page 30-209

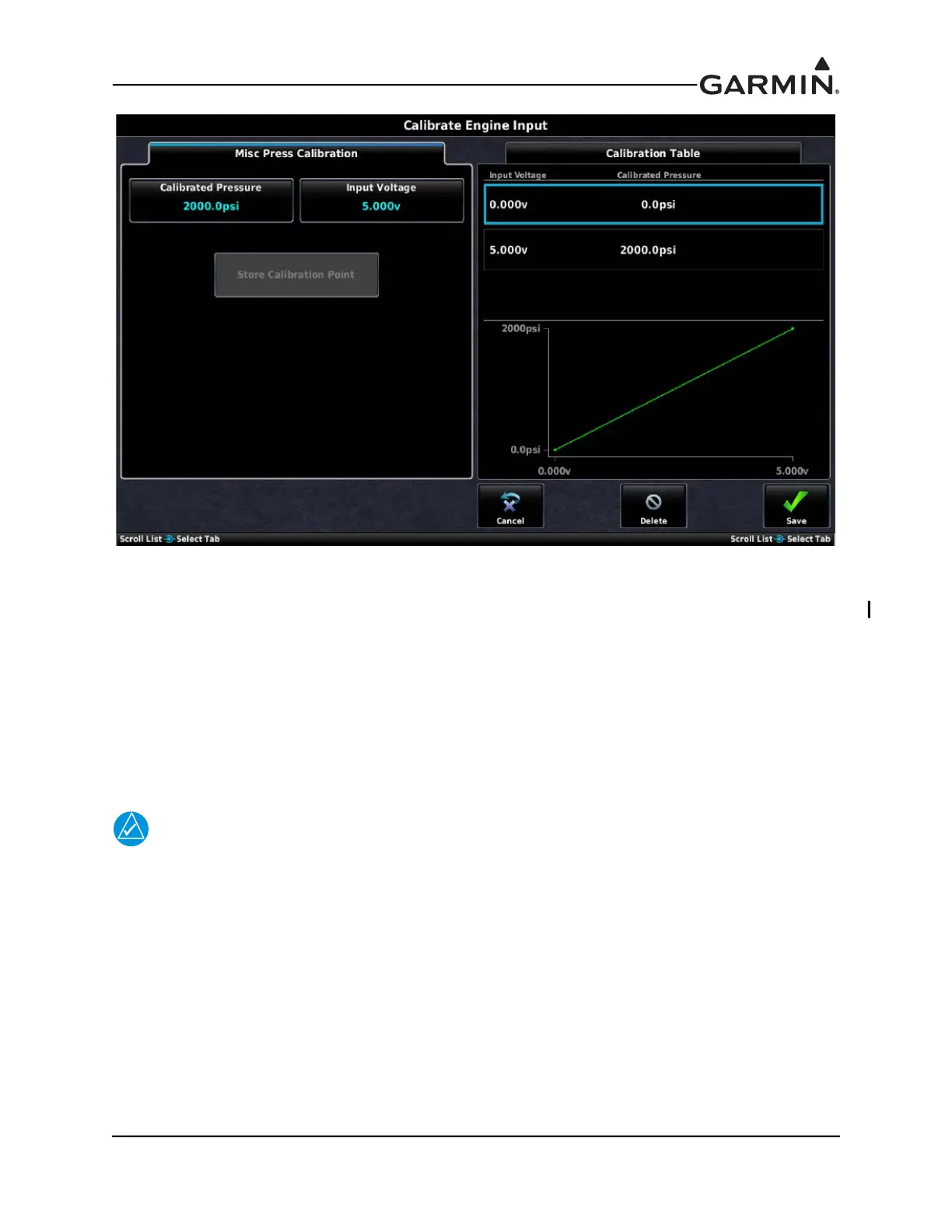

30.4.32.24 Custom Temperature
The GEA 24 (TEMP 1-6) and GSU 73 MISC TEMP inputs allow the monitoring of installer-defined
temperature measurements, using the following sensor configurations:
• Type J Thermocouple
• Type K Thermocouple
• MS28034 / MIL-T-7990 RTD
• UMA 1BxR RTD (or any Pt100-type RTD)
• Thermistor (any 50-150°C thermistor such as the Rotax 965531 or VDO 320-XXX series)
These inputs allow the display of arbitrary temperature measurements, and allow the installer to specify the
name of the gauge.
NOTE
TEMP 5/6 support thermocouple sensors only.

Garmin G3X Specifications

General

Display Type	LCD
Touchscreen	Yes
Power Input	10-32 VDC
Connectivity	Bluetooth, Wi-Fi (optional)
Interfaces	RS-232
GPS	Internal GPS/WAAS receiver
AHRS	Integrated AHRS
Air Data Computer	Integrated Air Data Computer
Autopilot Compatibility	Compatible with Garmin autopilots
Operating Temperature	-20°C to +55°C
Sunlight Readability	Sunlight readable display
Screen Size	10.6 inches
