190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual
Rev. AV Page 30-162
30.4.24.1 GDU 4XX Test Procedure

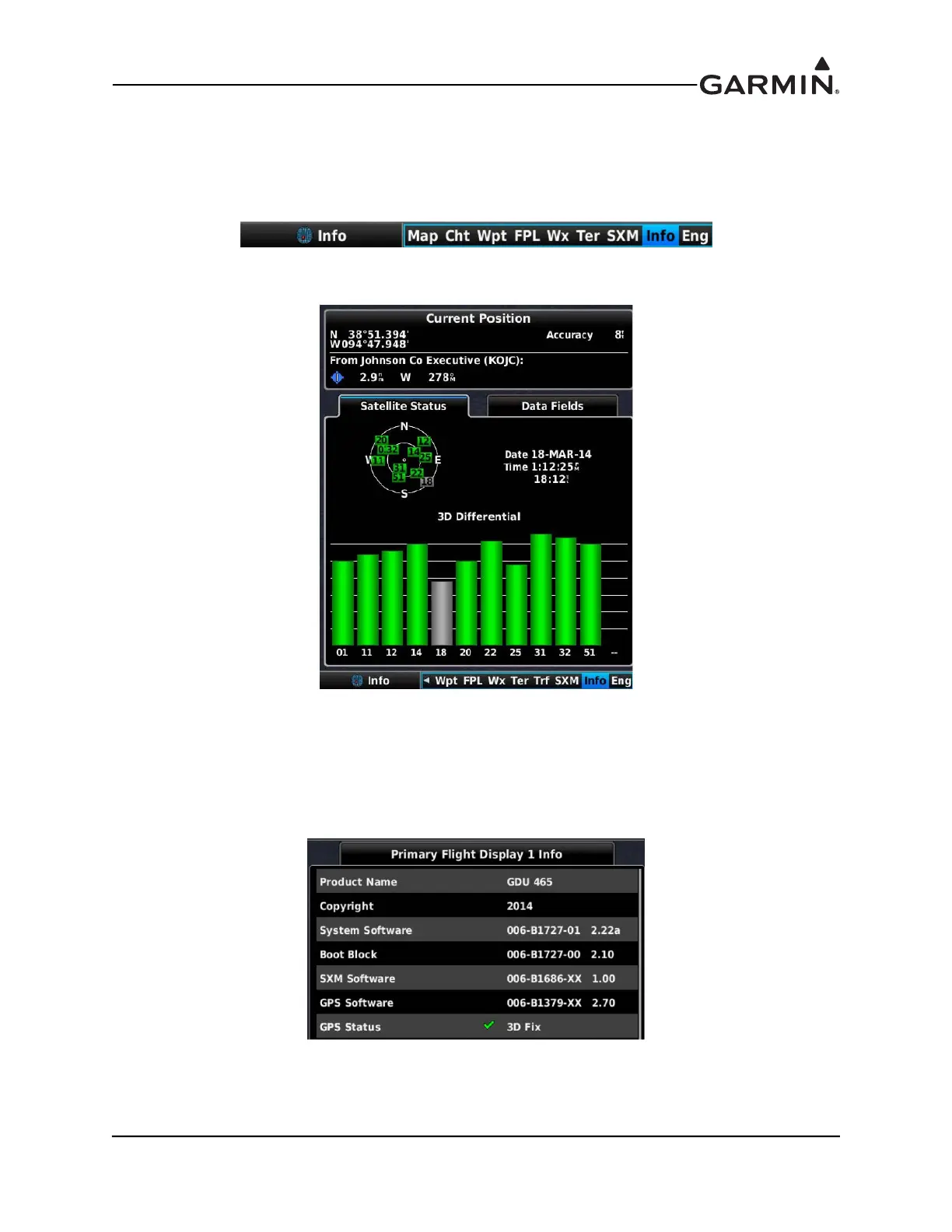

GPS Receiver Signal Acquisition Test:
1. Power on unit (normal mode) and use the Touch Panel or a Move Selector Knob to select the Info
Page.
2. Verify the GPS receiver is functional and able to calculate its present position.
Test the GPS Receiver for COM Interference:
This test must be conducted outside, as the use of a GPS repeater inside a hangar may result in a failed test.
After the preceding signal acquisition test has been completed successfully, perform the following steps:
1. Power on the unit in configuration mode and use the Touch Panel or a Move Selector Knob to view
GPS Status on the System Information Page.
