Garmin G3X User Manual

190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual
Rev. AV Page 30-142

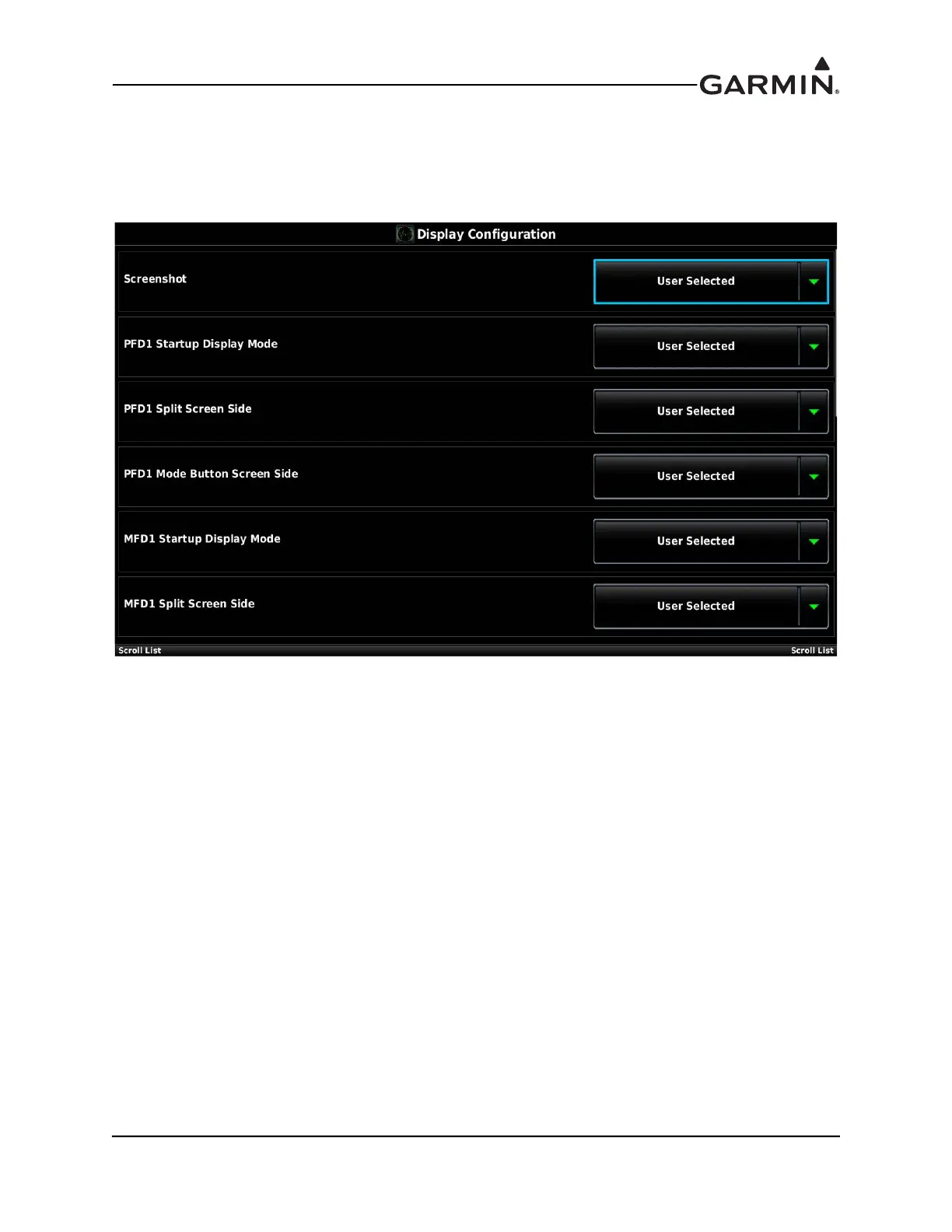

30.4.18 Display Configuration Page
The Display Configuration Page allows setting the parameters for display backlight and display options
configuration.
1. In configuration mode, use the Touch Panel or a Move Selector Knob to select the Display
Configuration Page.
2. Use the Touch Panel or a Move Selector Knob to select the desired configurable item and make the
desired change.
3. Press the Back key to return to the Configuration Mode page when finished (if desired).
Screenshot– This function allows a ‘screenshot’ of the current display to be stored to an SD card.
Enabled–When enabled, with an SD card in the SD card slot, press and hold the Menu key to save a
screenshot bitmap file to the SD card. A banner message will appear to indicate the success/
failure of the screenshot (for example, a failure results when an SD card is not inserted).
Disabled–Default setting
User Selected–When enabled, the user can enable or disable the Screenshot function in normal mode.

Garmin G3X Specifications

General

Display Type	LCD
Touchscreen	Yes
Power Input	10-32 VDC
Connectivity	Bluetooth, Wi-Fi (optional)
Interfaces	RS-232
GPS	Internal GPS/WAAS receiver
AHRS	Integrated AHRS
Air Data Computer	Integrated Air Data Computer
Autopilot Compatibility	Compatible with Garmin autopilots
Operating Temperature	-20°C to +55°C
Sunlight Readability	Sunlight readable display
Screen Size	10.6 inches
