190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual

Rev. AV Page 23-61

23.15 GTP 59 (Temperature Probe)

The GTP 59 has one three-wire interface cable as shown in Figure 23-27. Wire color designations are

shown in Figure 23-28

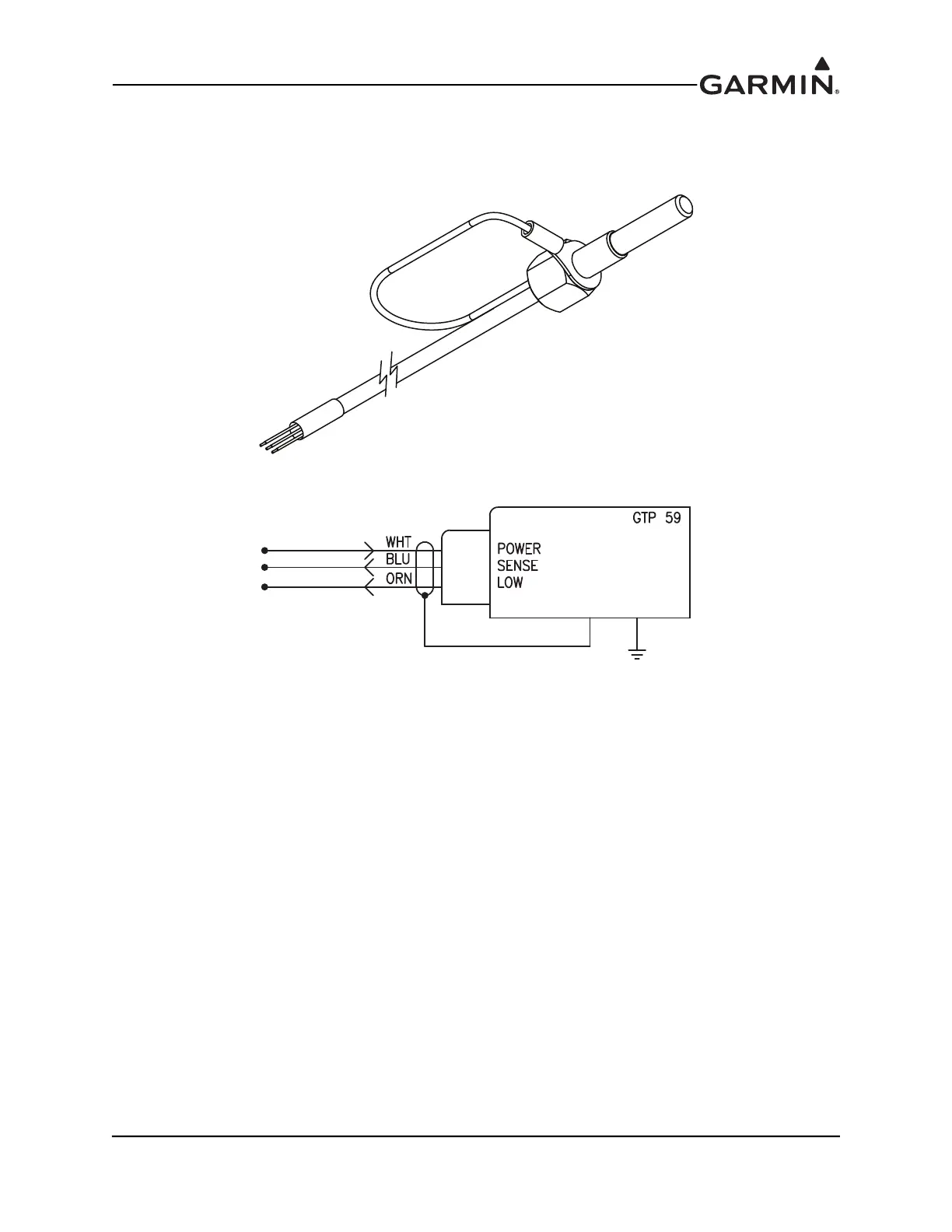

Figure 23-27 GTP 59

Figure 23-28 GTP 59 Wire Color Designations
