30.4.32.1 Engine/Airframe Sensors
Each of the sensors must be correctly installed (Section 21
) and configured before use. The Engine inputs
being monitored are displayed as gauges on the EIS display (Figure 30-57) and also on the Engine Page.

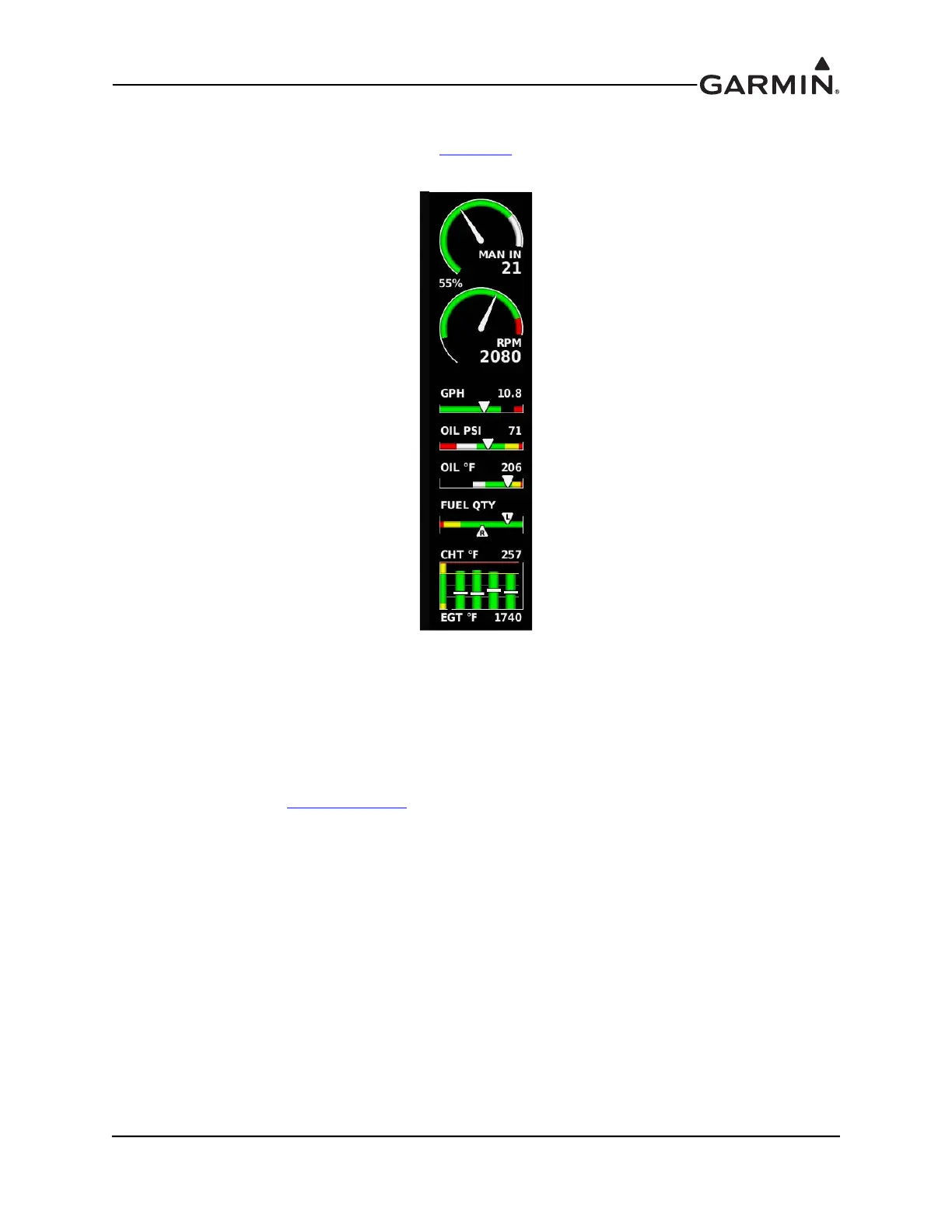

Figure 30-57 EIS Display (Engine Bar)
The following list of gauges, (if configured) are specifically required by FAR 91.205 and will always be
displayed on the EIS display (engine bar).
RPM Oil Temperature Oil Pressure Fuel Quantity
Other gauges will be displayed as space permits based on a pre-defined priority and user selections.
Making use of "Text Only" EIS gauges greatly increases the amount of information that can be displayed
on the EIS strip. Refer to Section 30.4.32.3
for information about configuring the visibility of optional
gauges on the EIS display.
