190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual
Rev. AV Page 9-1
9 GI 260 (AOA INDICATOR) INSTALLATION
This section contains general information as well as installation information for the GI 260. Use this
section to mount the GI 260 unit.

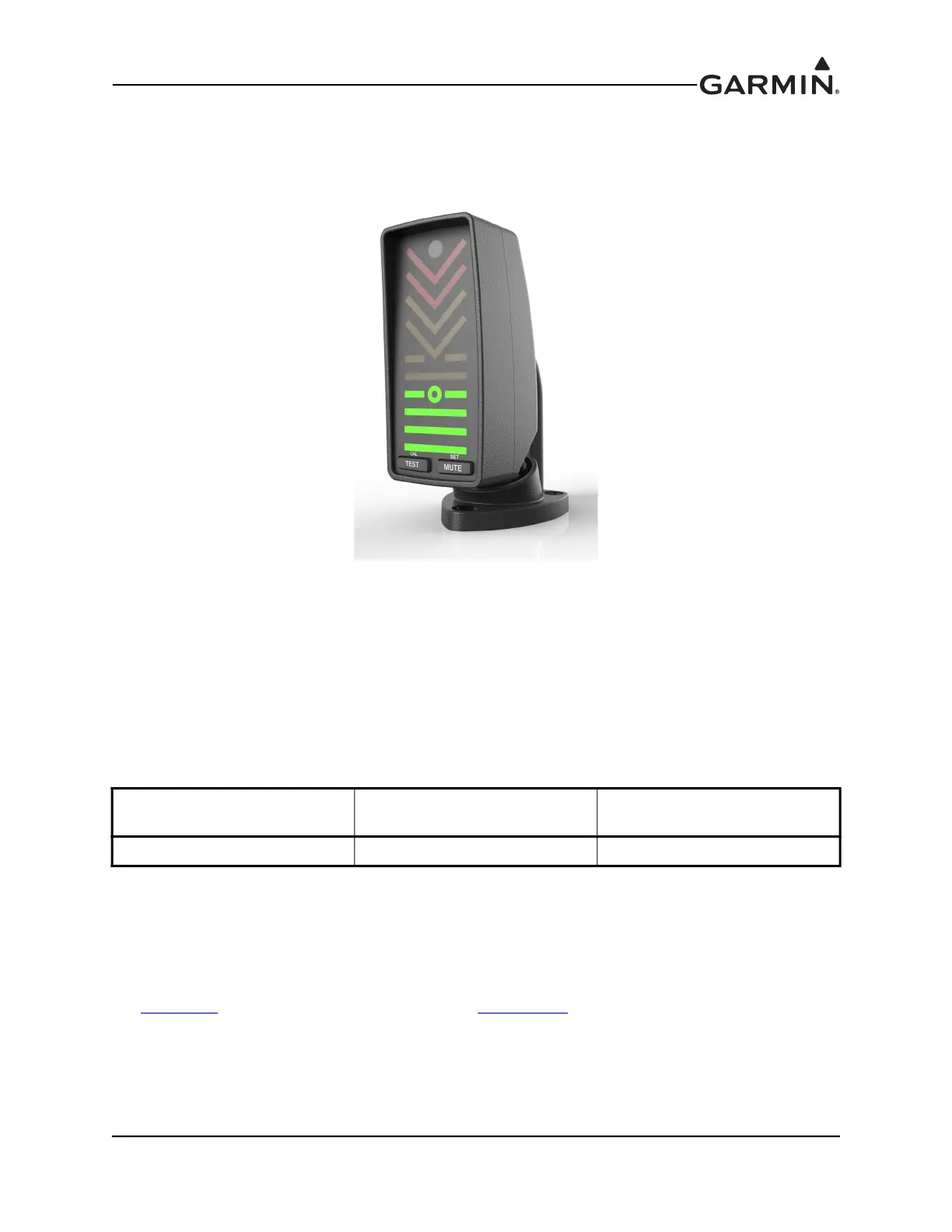

Figure 9-1 GI 260 Unit View
9.1 Equipment Description
The GI 260 is a remote mount Angle of Attack (AOA) indication. The GI 260 has a pigtail harness for
network communication and power connections.
9.2 Equipment Available
9.2.1 Required Equipment
9.2.2 Additional Equipment Required
The GI 260 Socket Mount (011-03562-00) is included with the unit. The Socket Mount is secured using (3)
#6-32 100º flat head screws be supplied by the installer.
9.3 General Specifications
See Section 2.2 for power/current specifications, and Section 2.4.1 for dimension/weight specifications.
Table 9-1 GI 260 Part Numbers
Model
Assembly Part
Number
Unit Only Part
Number
GI 260 010-01287-00 011-03458-00

Garmin G3X Specifications

General

Display Type	LCD
Touchscreen	Yes
Power Input	10-32 VDC
Connectivity	Bluetooth, Wi-Fi (optional)
Interfaces	RS-232
GPS	Internal GPS/WAAS receiver
AHRS	Integrated AHRS
Air Data Computer	Integrated Air Data Computer
Autopilot Compatibility	Compatible with Garmin autopilots
Operating Temperature	-20°C to +55°C
Sunlight Readability	Sunlight readable display
Screen Size	10.6 inches
