190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual
Rev. AV Page 22-14
22.2.9 Splicing Signal Wires
NOTE
Figure 22-8 illustrates that a splice must be made within a 3 inch window from outside the
edge of clamp to the end of the 3 inch max mark.
WARNING
Keep the splice out of the backshell for pin extraction, and outside of the strain relief to
avoid preloading.
Figure 22-8 shows a two wire splice, but a maximum of three wires can be spliced. If a third wire is
spliced, it is located out front of splice along with signal wire going to pin.
Splice part numbers
:
•Raychem D-436-36/37/38
•MIL Spec MIL-S-81824/1
This technique may be used with shield termination methods: A.1, A.2, B.1, B.2, C.1 and C.2.

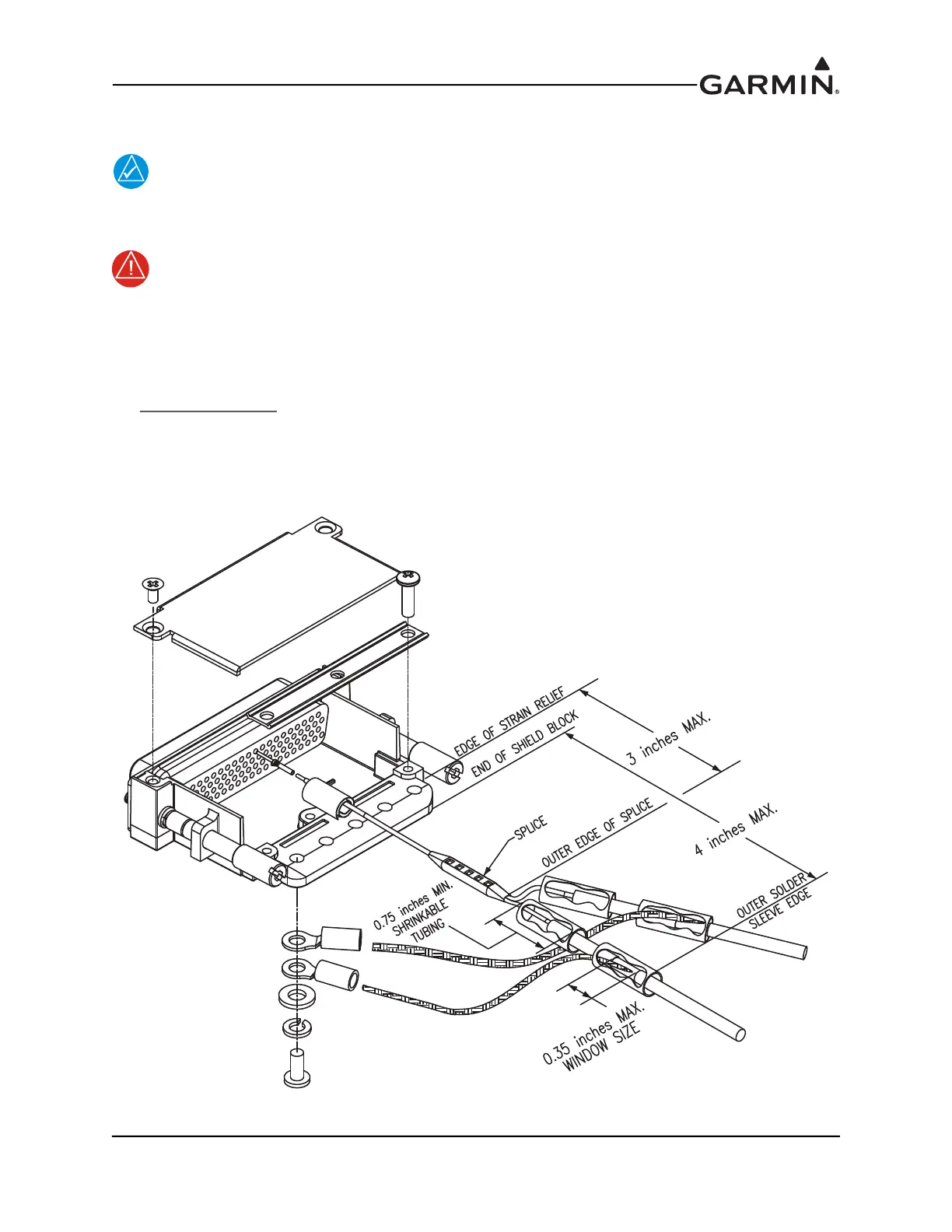

Figure 22-8 D-Sub Spliced Signal Wire illustration
