COPYRIGHT
©
2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000
CHAPTER 2 ORIGINAL EXPOSURE SYSTEM
2-15 R

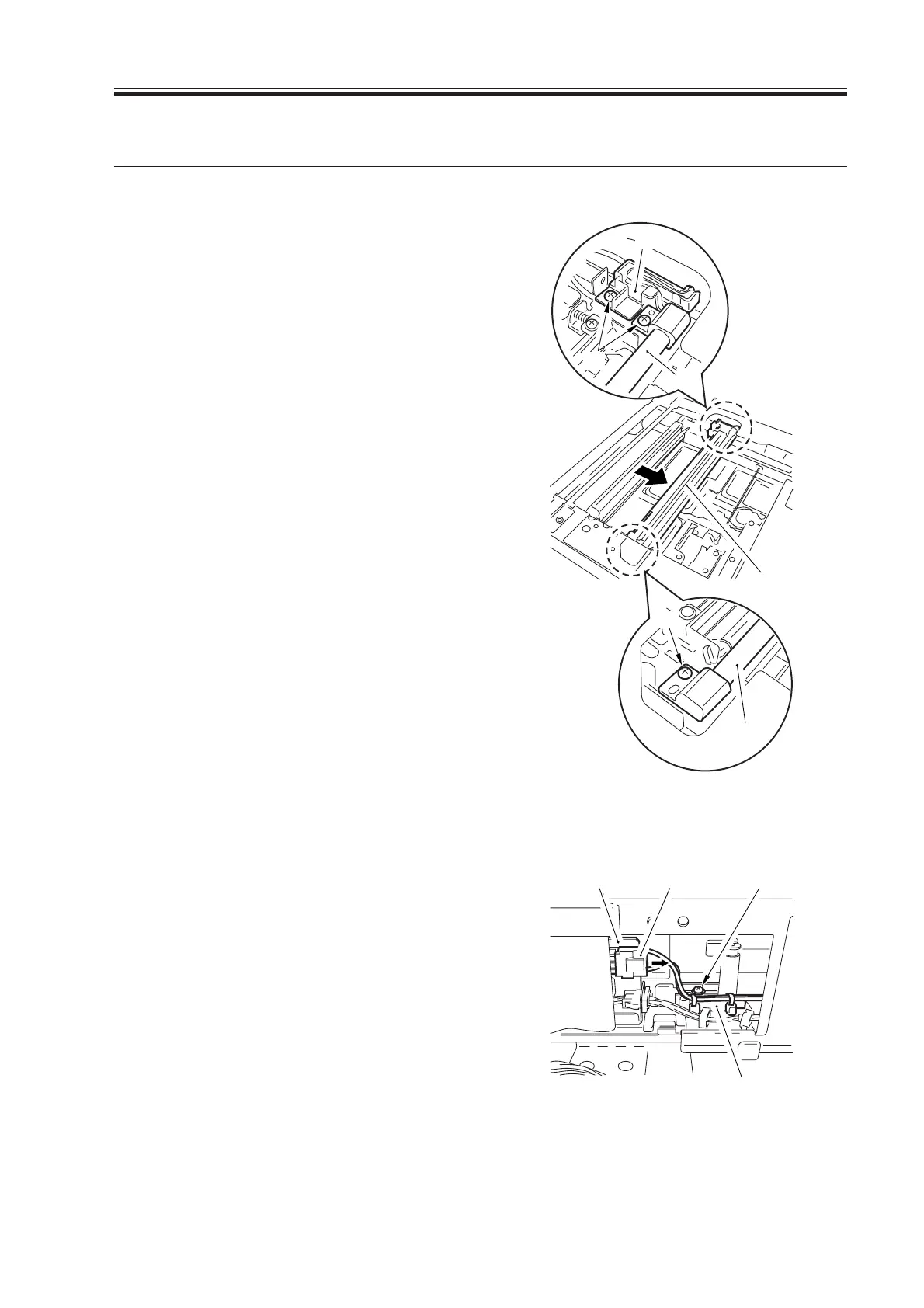

5. Scanning Lamp
5.1 Removing the Scanning Lamp
1) Remove the copyboard glass.
2) Remove the right upper cover and the
right upper cover base.
3) Remove the reader left cover; then, de-
tach the reader front cover.
4) Remove the reader controller PCB.
5) Move the No. 1 mirror base [1] as far as
the cut-in made in the frame.
6) Remove the three screws [2] from the
No. 1 mirror base, and detach the scan-
ning lamp [3] together with the cable
fixing plate [4].
F02-501-01
7) Disconnect the connector [6] from the
inverter PCB [5], and remove the screw
[7]; then, detach the cable fixing plate
[8].
F02-501-02
[2]
[2]
[3]
[3]
[4]
[1]
[8]
[6]
[7][5]
