CHAPTER 5 PICK-UP/FEEDING SYSTEM
5-31 P
4.3.2 Outline of Operations

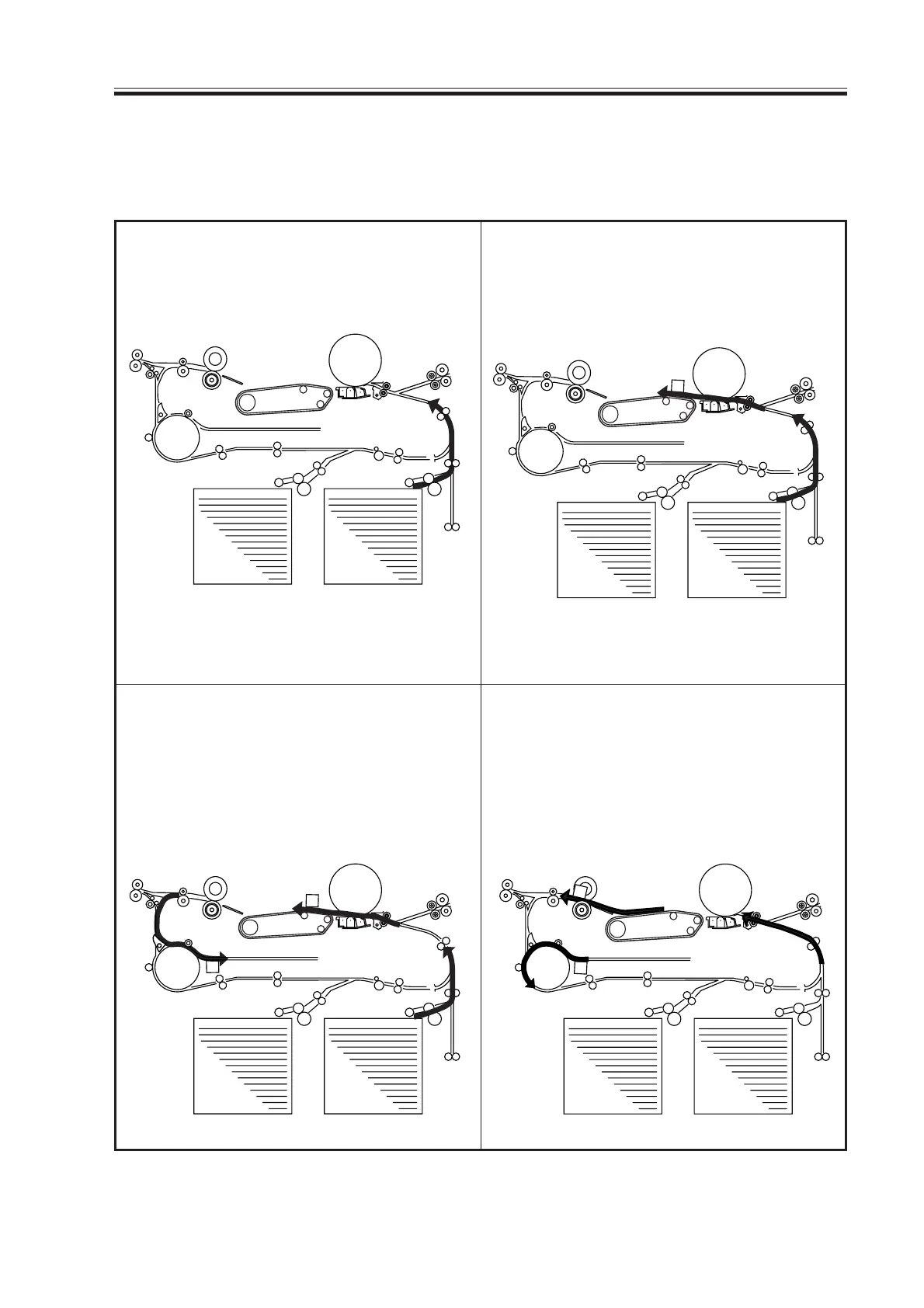

The following shows through-path operation when printing one set of duplexing prints of
10 originals.
1) The 1st sheet is picked from the deck.
2) The 1st side is printed on the 1st sheet.
The 2nd sheet is picked up.
4) The 1st sheet is moved to the duplexing
feeding assembly.
3) The 3rd side is printed on the 2nd
sheet.
The 1st sheet is moved to the
reversing assembly.
The 3rd sheet is picked up.
F05-403-01
1
3
1
3
1
