COPYRIGHT
©
2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000
CHAPTER 6 FIXING SYSTEM

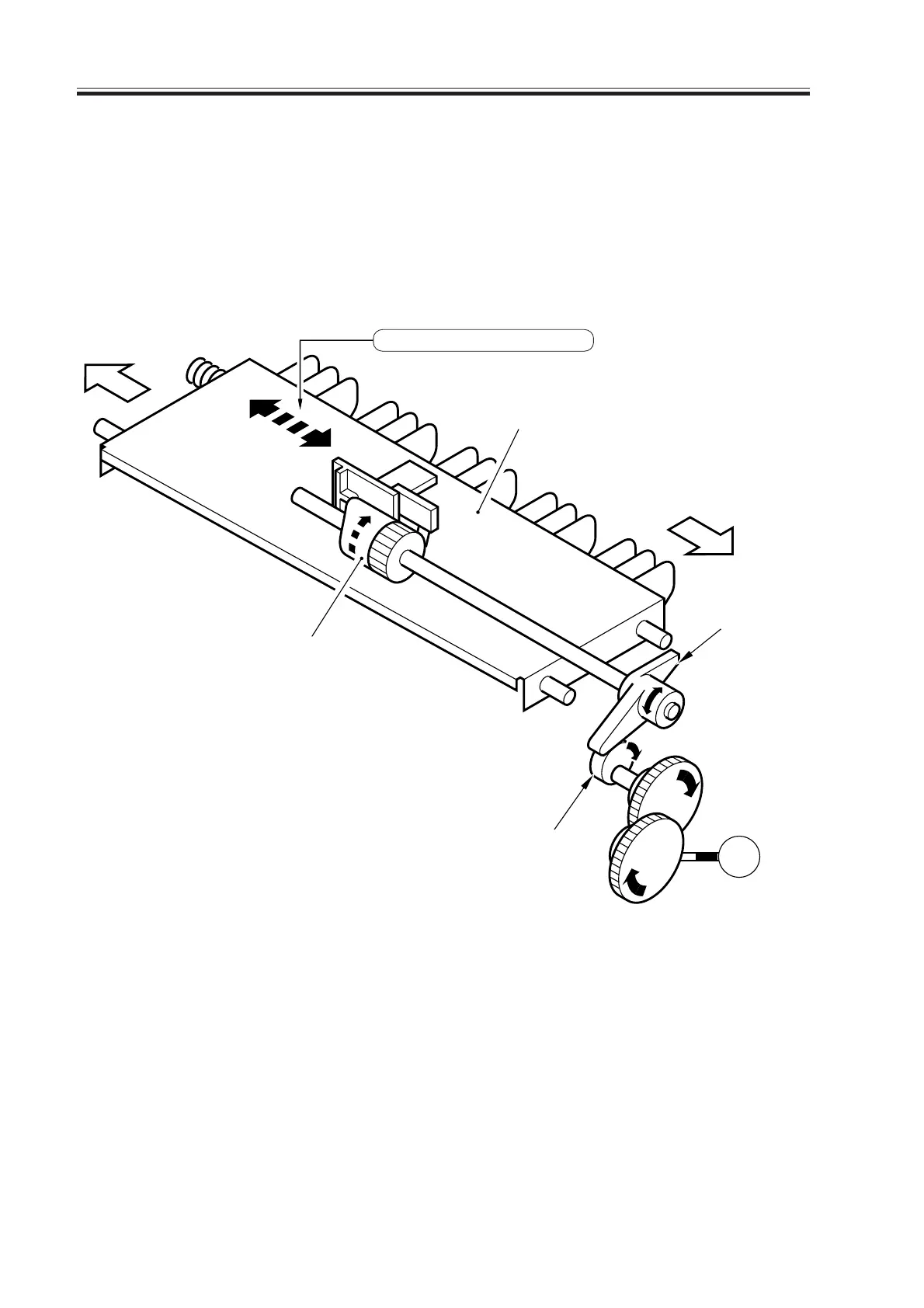

6-10 P
M19
(rear)
(front)
Cam
Upper separation claw unit
One-way clutch
Fixing motor
Eccentric cam
Distance of travel: 3 mm (approx.)
2.6 Controlling the Reciprocating Mechanism of the Upper
Separation Claw
To prevent damage to the fixing upper roller by the upper separation claw, the upper sepa-
ration claw is moved back and forth in the axial direction of the fixing upper roller.
The system used to control the reciprocating mechanism of the upper separation claw is
constructed as follows:
F06-206-01
