CHAPTER 8 PAPER DECK
8-23 P

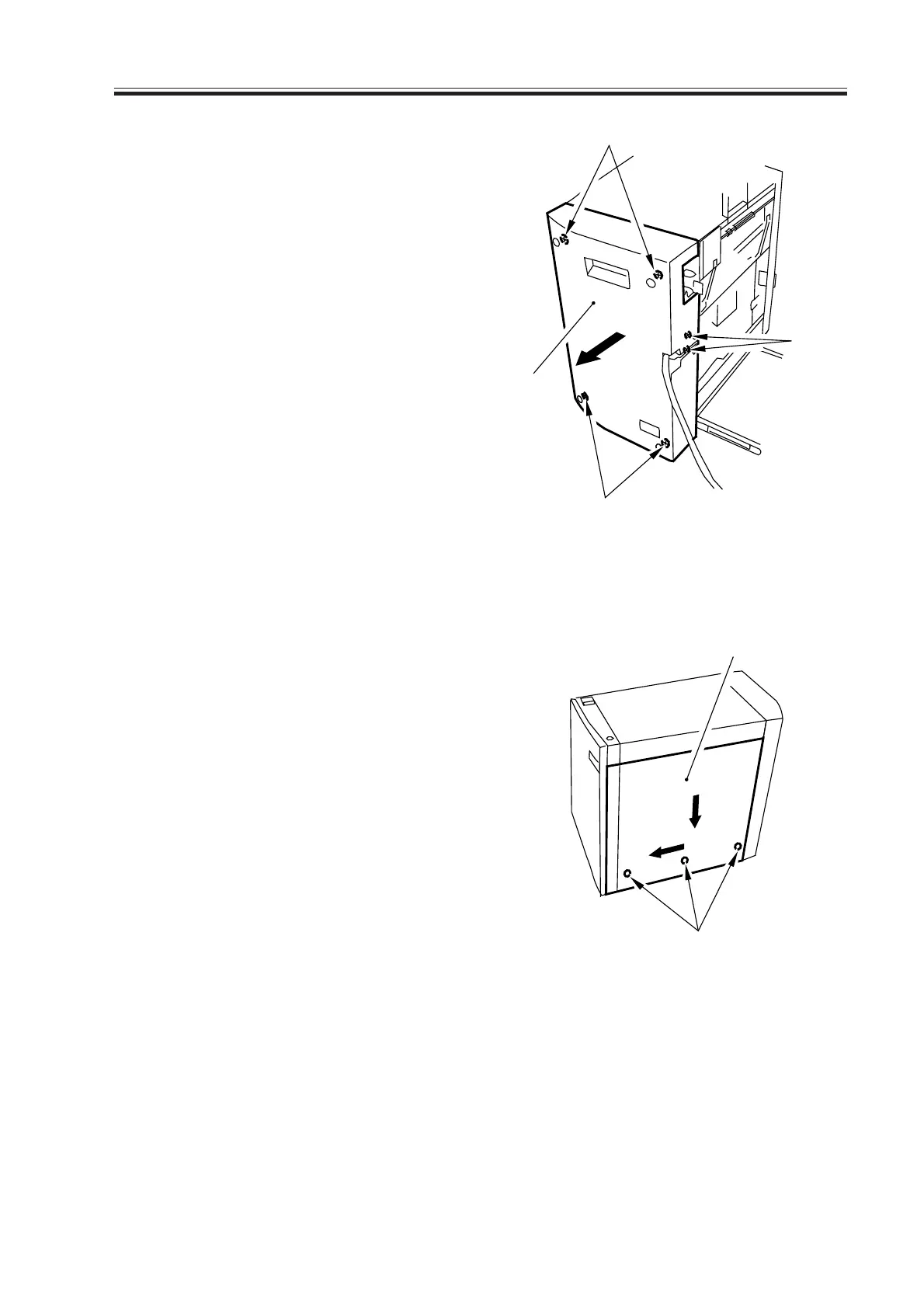

3.1.2 Removing the Rear Cover
1) Disconnect the deck from the host ma-
chine, and remove the six screws [1];
then, detach the rear cover [2].
F08-301-07
3.1.3 Removing the Right Cover
1) Remove the three screws [1]; then, shift
the right cover [2] to the front, and de-
tach it to the rear.
F08-301-08
[1]
[1]
[1]
[2]
[2]
[1]
