7.5 Primary Charging Assembly
7.5.1 Removing the Primary Charging Assembly
1) Open the front cover, and slide out the
hopper assembly.
2) Loosen the mounting screw [1], and
slide up the fixing member [2] to secure
the fixing member in place.
3) Disconnect the connector [3], and re-
move the primary charging assembly
[4].

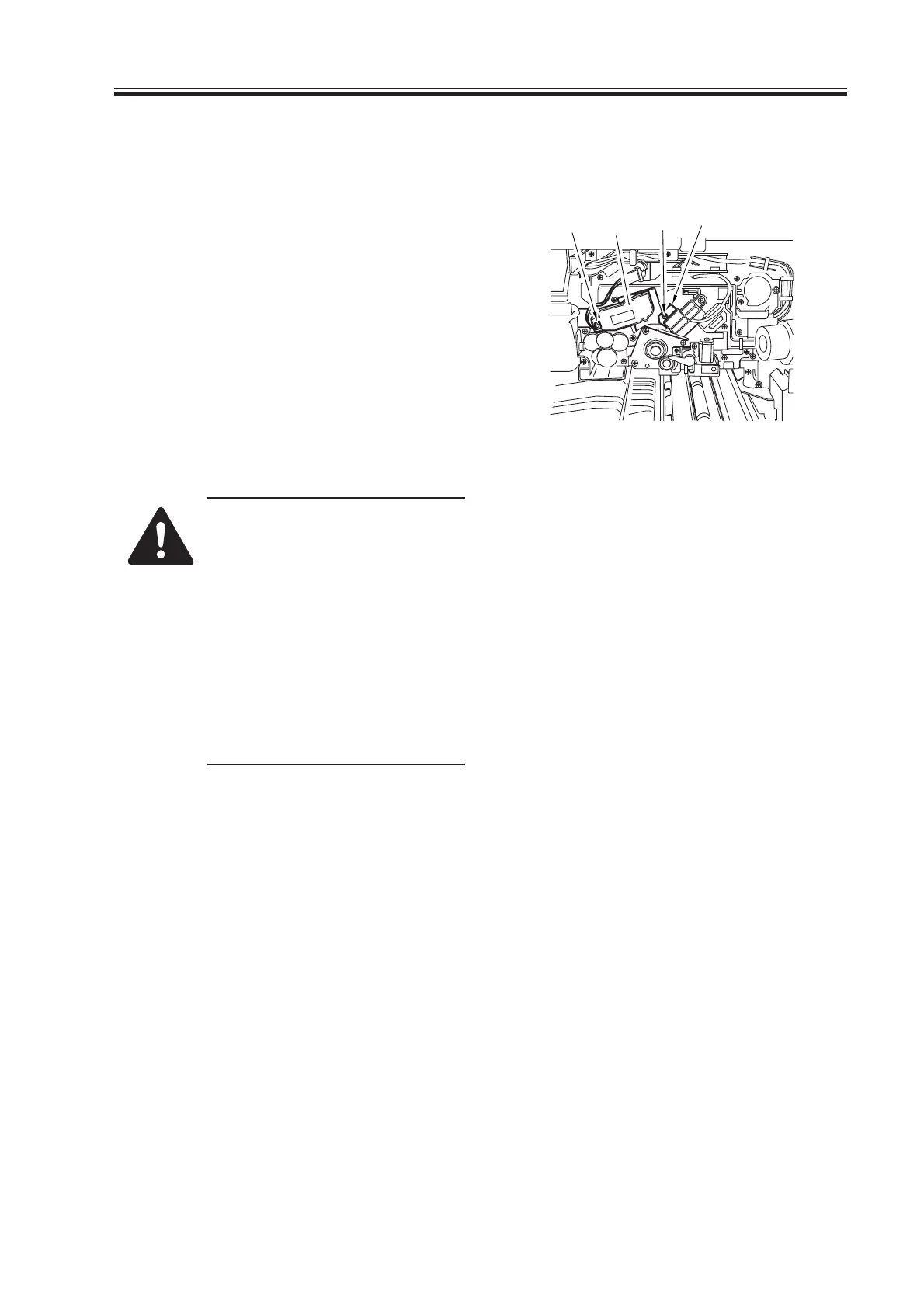

F04-705-01
If you have replaced the primary
charging wire or the primary
charging assembly, be sure to
execute the following in service
mode to clean the wire:
COPIER>FUNCTION>
CLEANING>WIRE-CLN.
Further, be user to use a
strengthened polishing pad
(blue holder) as the cleaning
pad.
[1]
[2]
[3]
[4]
