CHAPTER 3 STANDARDS AND ADJUSTMENTS
3-1 T
1. Image Adjustments
1.1 Standards of Image Position
The image margin/non-image width of a print made in Direct must be as follows:

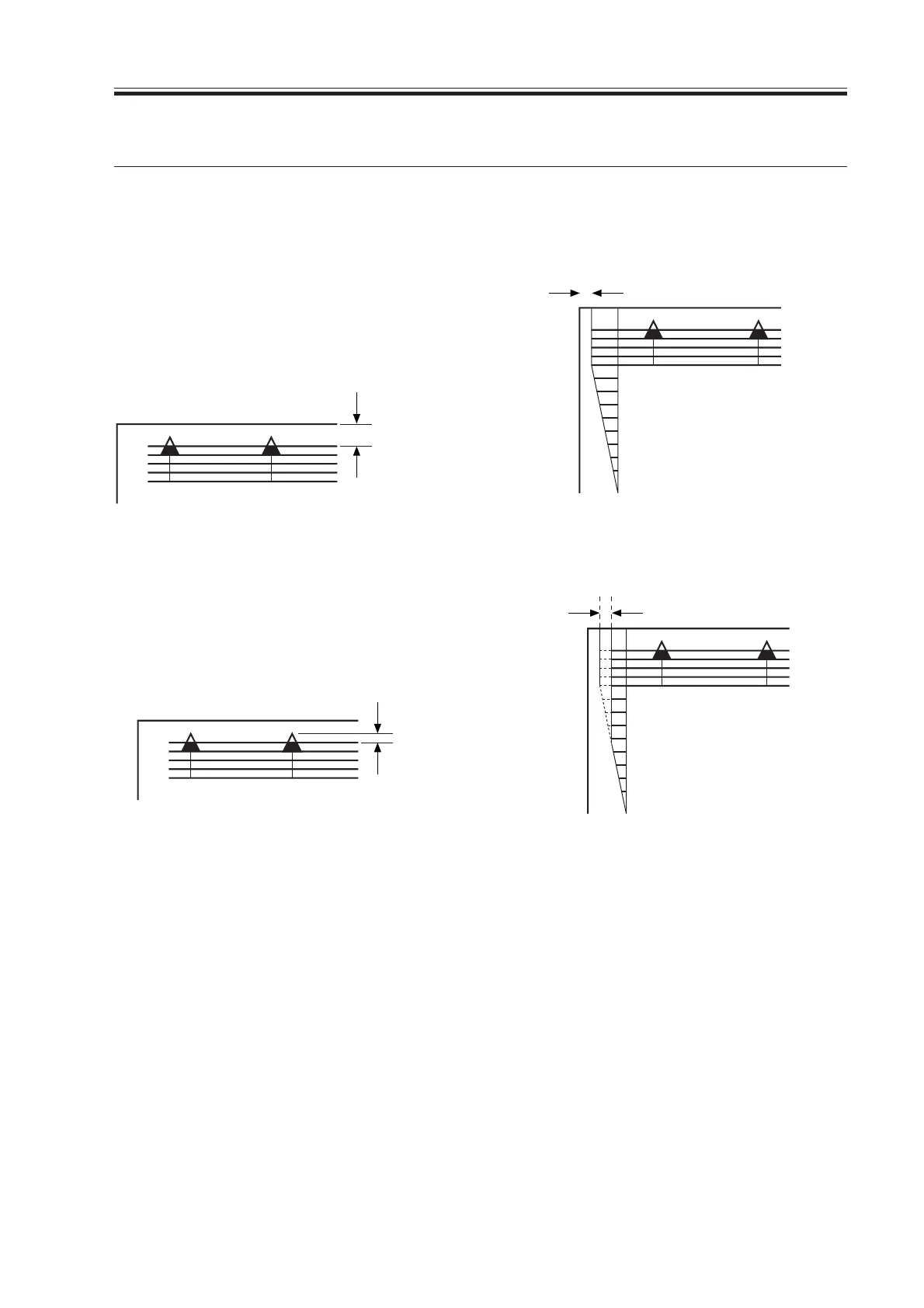

F03-101-01 Image Leading Edge Margin F03-101-02 Left/Right Image Margin
F03-101-04 Left/Right Non-Image Width
F03-101-03 Leading Edge Non-Image
Width
+1.5mm
- 1.0mm
4.0
2.5±1.5mm
0
2
4
6
8
10
+1.5mm
- 1.0mm
4.0
2.5mm±1.5
0
2
4
6
8
10
