COPYRIGHT
©
2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000
CHAPTER 7 EXTERNALS AND CONTROLS
7-27 P
[4]
[1]
[2]
[3]
[5]
[6]
[1]

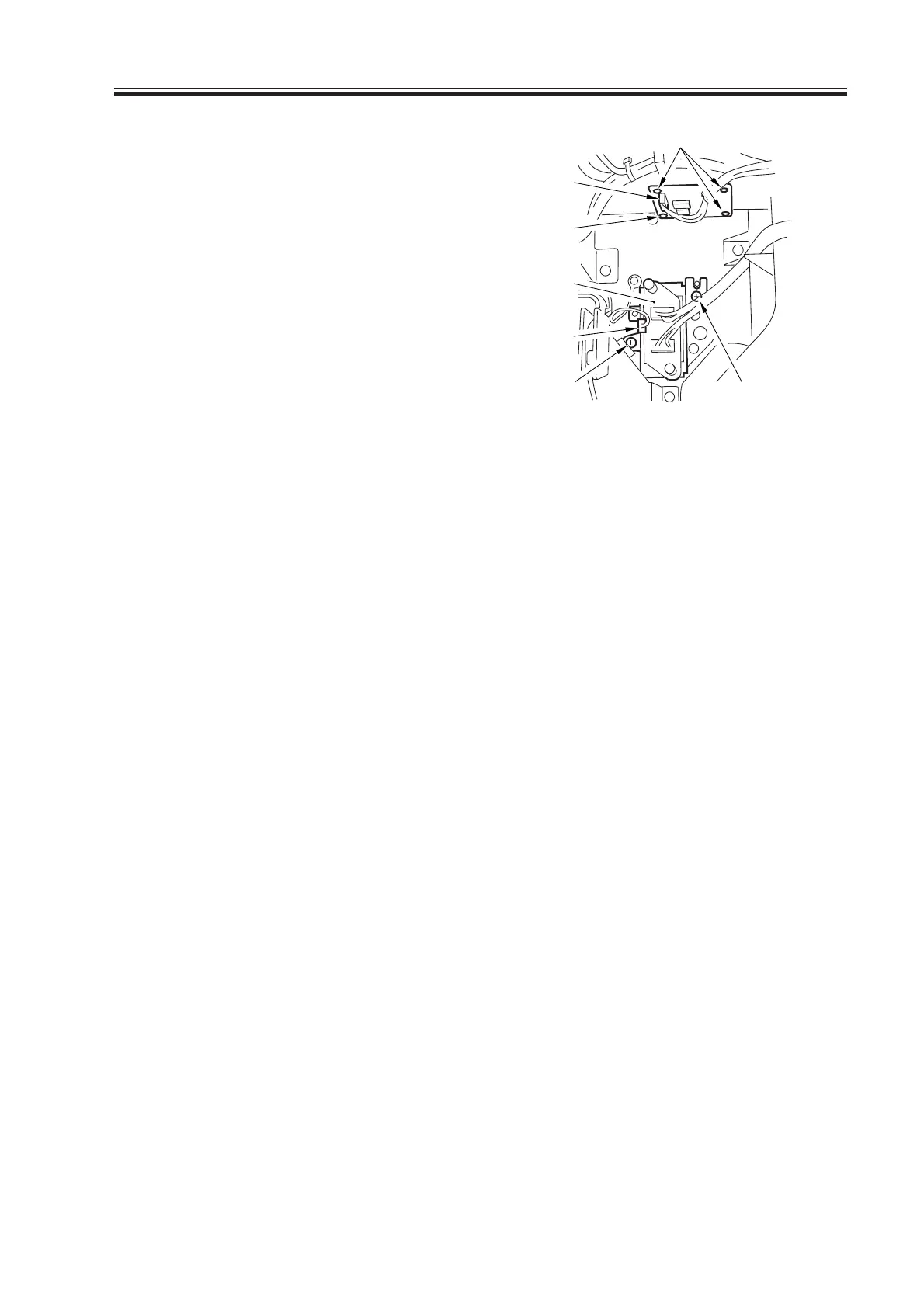

5.4.9 Serial Number PCB
1) Remove the DC controller PCB.
2) Remove the two screws [1], and discon-
nect the connector [2]; then, detach the
fixing assembly terminal base [3].
3) Remove the four screws [4], and dis-
connect the connector [5]; then, detach
the serial number PCB [6].
F07-504-16
