COPYRIGHT
©
2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000
CHAPTER 5 PICK UP/FEEDING SYSTEM
5-77 P

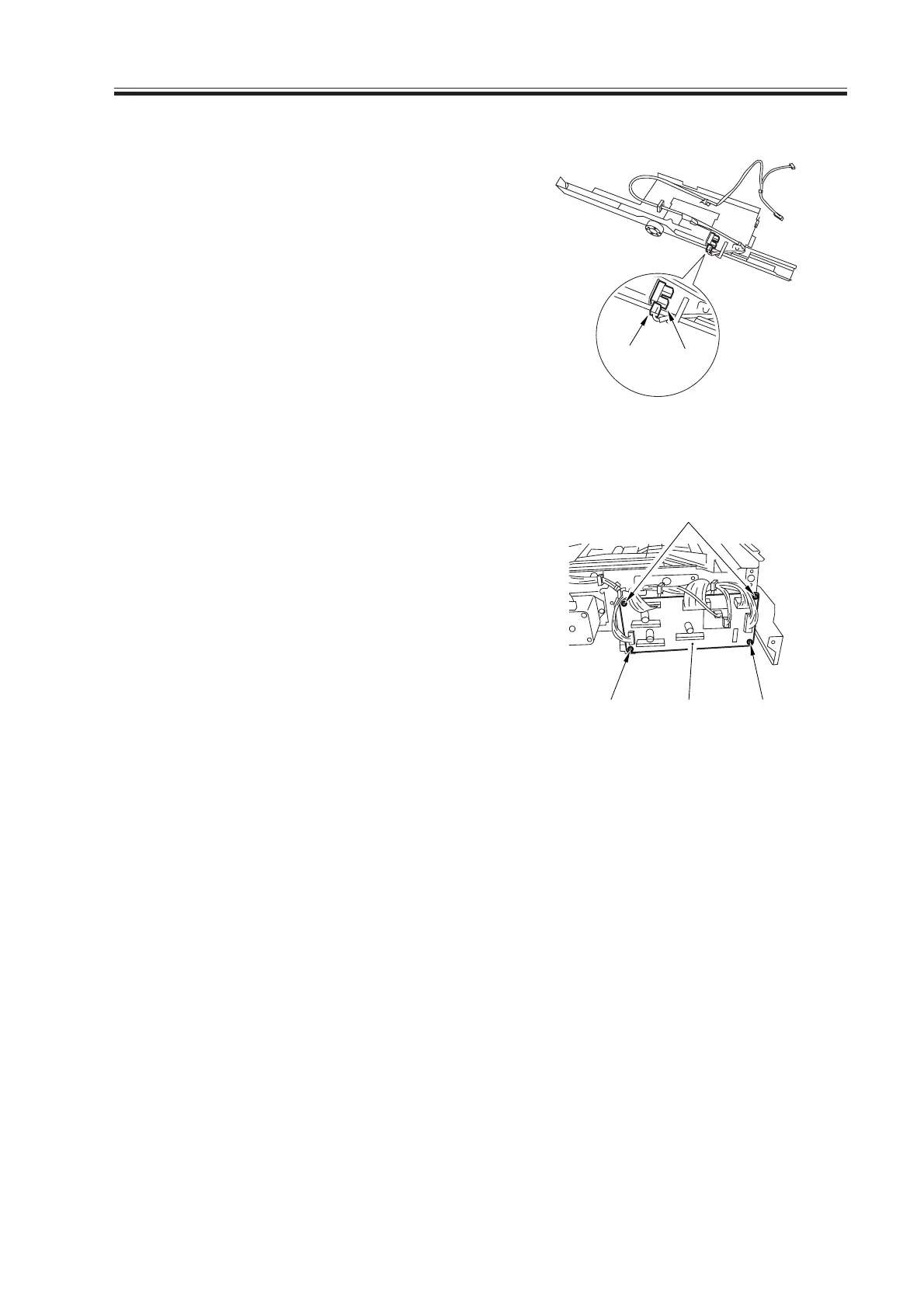

9.6.13 Removing the Horizontal Registration Sensor
1) Remove the duplex unit from the ma-
chine.
2) Remove the horizontal registration unit.
3) Disconnect the connector [1], and re-
move the horizontal registration sensor
[2].
F05-906-23
9.6.14 Removing the Duplex Driver PCB
1) Slide the duplex driver out of the ma-
chine.
2) Remove the front cover of the duplex
driver.
3) Disconnect all connectors from the du-
plex driver PCB.
4) Remove the four mounting screws [1],
and detach the duplex driver PCB [2].
F05-906-24
[1]
[2]
[1]
[1] [2] [1]
