COPYRIGHT
©
2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000
CHAPTER 3 STANDARDS AND ADJUSTMENTS
3-17 T

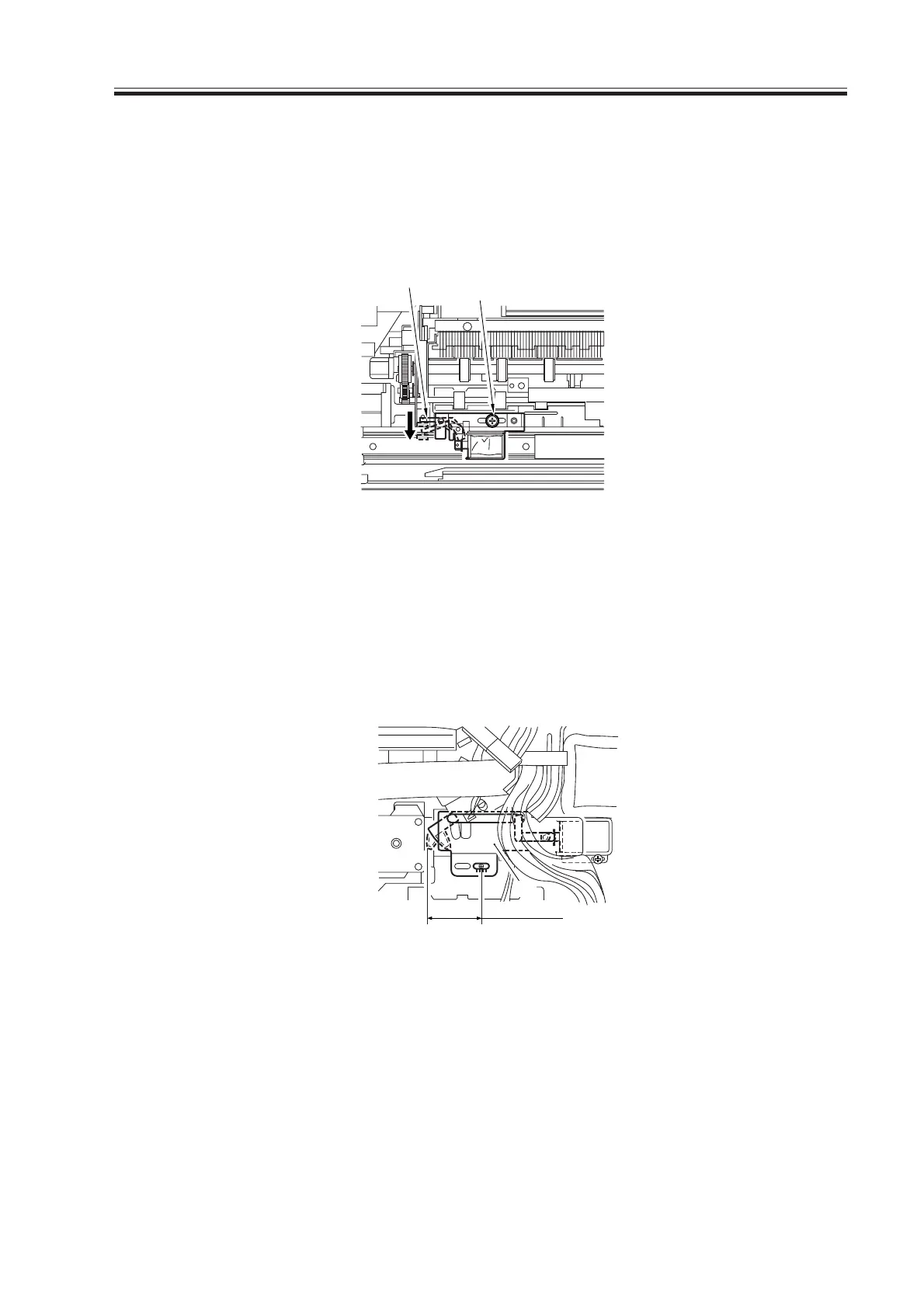

4.10 Adjusting the Position of the Delivery Flapper Solenoid
(SL5)
Adjust the position of the mounting screw [2] using the screw [2] so that the drive lever
[1] is pushed fully when the solenoid turns on (i.e., when the plunger is drawn).
F03-410-01
4.11 Adjusting the Position of the Right Deck Pickup Solenoid
(SL6)
Adjust the position of the solenoid so that the left edge of the arm 2 is 57.2 ± 0.5 mm from
the center of hole A of the solenoid mounting base.
F03-411-01
[2]
[1]
[A]
57.2 0.5mm
±
